Question 1
1 / -0

What is the series equivalent of $1000 \ \Omega$ resistor and $$2700 \ \Omega$$ resistor in series?

A
$2700 \ \Omega$

B
$3000 \ \Omega$

C
$3700 \ \Omega$

D
$1000 \ \Omega$

Solution

Given : $R_1 = 1000\Omega$ $R_2 = 2700\Omega$

Equivalent resistance in series combination is given by
$R_{eq} = R_1+R_2 = 1000+2700 = 3700$ $\Omega$
Question 2
1 / -0

What is the total resistance when four resistors of $20, 40, 60$ , and $80$ respectively are connected in parallel (in ohm)?

A
$4.4$

B
$9.6$

C
$14.8$

D
$20$

E
$25.2$

Solution

Given : $R_1 =20\Omega$ $R_2 =40\Omega$ $R_3 =60\Omega$ $R_4 =80\Omega$
Equivalent resistance for parallel combination $\dfrac{1}{R_{eq}} = \dfrac{1}{R_1} +\dfrac{1}{R_2}+\dfrac{1}{R_3}+\dfrac{1}{R_4}$
$\therefore$ $\dfrac{1}{R_{eq}} = \dfrac{1}{20} +\dfrac{1}{40}+\dfrac{1}{60}+\dfrac{1}{80}$ $\implies R_{eq} =9.6\Omega$
Question 3
1 / -0

A $10\ k\Omega$ resistor can be obtained by using

A
$3\ k\Omega,5\ k\Omega,2\ k\Omega$ resistors in series

B
$3\ k\Omega,5\ k\Omega,2\ k\Omega$ Resistors in parallel

C
$3\ k\Omega,5\ k\Omega$ in series and combination in parallel to $2\ k\Omega$ resistor in series

D
$5\ k\Omega,5\ k\Omega,2\ k\Omega,$ Resistors in series

Solution

When three resistors are connected in series, the equivalent resistance is $R_{eq}=R_1+R_2+R_3$ .
In the question, $R_1=3\ k\Omega$ , $R_2=5\ k\Omega$ , $R_3=2\ k\Omega$ .
$\therefore R_{eq}=3+5+2 = 10\ k\Omega$
Question 4
1 / -0

Current in circuit, which makes bulb glow or heats up the wire, is:

A
motion of charges

B
motion of atoms

C
motion of molecules

D
none of the above

Solution

An electric current is a stream of charged particles, such as electrons or ions, moving through an electrical conductor .It is often defined as rate of flow of charges.
Hence motion of charges through a conductor causes electric current.
Question 5
1 / -0

Which of the following best describe the current?

A
It is the rate of flow of charged particles through a conducting medium.

B
It's only present when there is no voltage.

C
It is the flow of a conductor through charged particles.

D
It is faster than the speed of light.

E
It is the random movement of electrons from atom to atom.

Solution

Current is defined as the rate of flow of charged particles (mainly electrons) in a particular direction through a conducting medium and is measured in Amperes.
$\therefore$ Current, $I = \dfrac{q}{t}$
Therefore, the correct option is A.
Question 6
1 / -0

The amount of charges that pass any section of the conductors in one second is called:

A
Current

B
Power dissipation

C
Electromotive force

D
Internal resistance

Solution

Current is defined as the amount of charges that passes any section of the conductors in one second.
$i = \dfrac{Q}{t}$
$Q$ ; the amount of charges passing through cross section area
Question 7
1 / -0

Identify the changes in a circuit on adding a light bulb to a series circuit. It will:

A
increase the total resistance

B
make the current through each light bulb different

C
decrease the total resistance

D
change the voltage of the battery

E
make the voltage lost in each light bulb equal

Solution

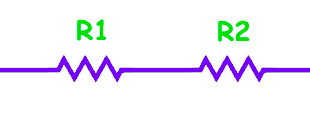

For series combination of two resistances $R_{eq} = R_1 + R_2$
Light bulb has its own resistance and thus the total resistance of the circuit increases when it is connected in series with the circuit.
Question 8
1 / -0

When does two elements are said to be in series?

A
When same current physically flows through both elements

B
When different current physically flows through both elements

C
When no current physically flows through both elements

D
None of these

Solution

When two resistors are connected end to end are said to be connected in series. In a series connection, the same current physically flows through both elements.
Question 9
1 / -0

What is the equivalent resistance of three $1000 \ \Omega$ resistors in series?

A
$1000 \ \Omega$

B
$3000 \ \Omega$

C
$2000 \ \Omega$

D
$1100 \ \Omega$

Solution

Given : $3$ resistors of resistance $R = 1000 \ \Omega$

Equivalent resistance in series combinationis given by,
$R_{eq} = R_1+R_2+R_3$

$R_{eq} = R+R+R = 3R = 3000 \ \Omega$
Question 10
1 / -0

What is the power produced by an appliance marked "240 V, 2 A"?

A
8.3 mW

B
60 W

C
120 W

D
480 W

Solution

$V=240 , I=2A$
Power, $P=V\times I=240\times 2=480W$
