Question 1
1 / -0

One mole of an ideal gas is taken from state $$P$$ to state $$Q$$ by three different processes (i) $$PRQ$$, (ii) $$PSQ$$ and (iii) $$PTQ$$ as shown in the $$p - V$$ diagram. The heat absorbed by the gas is

A
The least in process (ii)

B
Greater in process (ii) than in process (i)

C
The same in the processes (i) and (ii)

D
Less in process (iii) than in process (ii)

Solution

Heat absorbed by gas in three processes can be written as
$$\triangle Q_{PRQ} = \triangle U + W_{PRQ}$$
$$\triangle Q_{PSQ} = \triangle U$$
$$\triangle Q_{PTQ} = \triangle U + W_{PTQ}$$
The change in internal energy in all the three cases is same and $$\triangle W_{PRQ} > 0, \triangle W_{PTQ} < 0$$
Hence, $$\triangle Q_{PRQ} > \triangle Q_{PSQ} > \triangle Q_{PTQ}$$.
Question 2
1 / -0

In a given process on an ideal gas $$ dW=0$$ and $$dQ<0,$$ then the force of gas

A
the temperature will decrease

B
the volume will increase

C
the pressure will remain constant

D
the temperature will increase

Solution

From first law of thermodynamics,
$$ dQ=dU+dW$$
we have $$dQ=dU (as\,dW=0)$$
But $$dQ<0$$
$$dU<0$$
$$n\,C_v \Delta T<0$$
or $$ \Delta T <0$$
Hence,the temperature will decrease
Question 3
1 / -0

For adiabatic expansion of perfect monoatomic gas , when voulme increases by $$ 24\%$$ ,what is the percentage decrease in pressure ?

A
$$ 24\% $$

B
$$ 30\% $$

C
$$ 48\% $$

D
$$ 71\% $$

Solution

In adiabatic process $$ p_2 V_2^{\gamma}=p_1 V_1^{\gamma}$$
$$p_2=p_1 (\dfrac{V_1}{V_2})^{\gamma}$$
$$p_2=(\dfrac{100}{124})^{5/3} p_1$$
$$ p_2=0.6985 p_1$$
$$\%$$ decrease in pressure
$$=\dfrac{p_1-p_2}{p_1}\times 100 \%$$
$$=\dfrac{p_1-0.6985 p_1}{p_1}\times 100 \%$$
$$=\dfrac{0.3015 p_1}{p_1} \times 100\%$$
$$=30.15 \%=30\%$$
Question 4
1 / -0

The p-V diagram of a gas system undergoing cyclic process is shown here. The work done during isobaric compression is

A
100 J

B
200 J

C
600 J

D
500 J

E
400 J

Solution

From P-V diagram, DA is the isobaric compression. Here pressure is constant i.e. $$p=2\times 10^{2} Nm^{-2}$$
Now, work done for DA is $$W=pdV=p(V_D-V_A) = (2\times 10^2)(3-1)=400 \, J$$
Question 5
1 / -0

A gas is compressed at a constant pressure of $$50\, N/m^2$$ from a volume of $$10m^3$$ to a volume of $$4 m^3$$. Energy of 100 J is then added to the gas by heating. Its internal energy is

A
Decreased by 200 J

B
Increased by 200 J

C
Decreased by 400 J

D
Increased by 400 J

Solution

From first law of the thermodynamics
$$\Delta Q=\Delta U + \Delta W = \Delta U + p\Delta V$$
$$\Rightarrow 100 = \Delta U+50 \times (4-10)$$
$$\Rightarrow \Delta U = 400\, J$$
Question 6
1 / -0

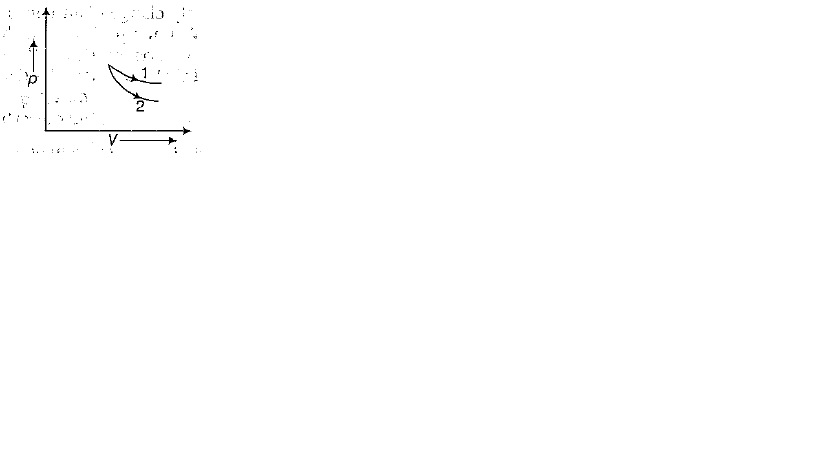

The $$p-V$$ plots for two gases during adiabatic process as shown in figure plots $$1$$ and $$2$$ should correspond respectively to.

A
$$He$$ and $$O_2$$

B
$$O_2$$ and $$He$$

C
$$He$$ and $$Ar$$

D
$$O_2$$ and $$N_2$$

Solution

Slope of adiabatic process of p-V diagram
$$\left(\displaystyle\frac{dp}{dv}\right)=\gamma \frac{p}{V}$$ i.e., slope $$\alpha\gamma$$
From graph$$(slope)_2 > (slope)_2$$
$$\Rightarrow \gamma_2 > \gamma_1$$
$$\gamma$$ for monoatomic gas (Ar, He) is greater than $$\gamma$$ for diatomic gas $$(O_2, N_2)$$.
Question 7
1 / -0

Two identical vessels $$A$$ and $$B$$ contain equal amount of ideal monoatomic gas. The piston of $$A$$ is fixed but that of $$B$$ is free. Same amount of heat is absorbed by $$A$$ and $$B$$. If $$B's$$ internal energy increases by $$100\ J$$ the change in internal energy of $$A$$ is

A
$$100\ J$$

B
$$\dfrac {500}{3}J$$

C
$$250\ J$$

D
None of these

Solution

From $$1st$$ Law of thermodynamics, we have $$dQ=dU+dW=dU+PdV\rightarrow(1)$$
For case $$A:dV=0$$ So, $$dW=0$$ and hence
$$\Rightarrow dQ_A=dU_A\rightarrow(2)$$
For case $$B:$$ It is free expansion so, $$\triangle W$$ has to be zero and that's why
$$\Rightarrow dQ_B=dU_B=100J\rightarrow (3)$$
But $$ dQ_A= dQ_B=100J$$ So, using $$(2)$$ we get,
$$\Rightarrow dU_A=100J,$$ Change in internal energy of $$A.$$
Hence, the answer is $$100J.$$
Question 8
1 / -0

A gas at pressure $$p$$ has volume $$V$$. It is adiabatically compressed to volume $$V/32$$. If $$(32)^{1.4} = 128$$, what is the current pressure of the gas?

A
$$128p$$

B
$$63p$$

C
$$32p$$

D
$$16p$$

Solution

$$P{ V }^{ \gamma }=Constant\\ { P }_{ 1 }{ V }_{ 1 }^{ \gamma }={ P }_{ 2 }{ V }_{ 2 }^{ \gamma }\\ { P }_{ 2 }={ P }_{ 1 }\times ({ \cfrac { { V }_{ 1 } }{ { V }_{ 2 } } })^{ \gamma }\\ =P\times ({ \cfrac { V }{ \cfrac { V }{ 32 } } })^{ 1.4 }\quad [\gamma =1.4]\\ =P\times ({ 32) }^{ 1.4 }\\ { P }_{ 2 }=128P$$
Question 9
1 / -0

For an ideal gas with initial pressure and volume $$P_i$$ and $$V_i$$ respectively, a reversible isothermal expansion happens, when its volume becomes $$V_0$$. Then it is compressed to its original volume $$V_i$$ by a reversible adiabatic process. If the final pressure is $$P_t$$ then which of the following statements is true?

A
$$P_f = P_i$$

B
$$P_f > P_i$$

C
$$P_f < P_i$$

D
$$\displaystyle\frac{P_f}{V_o}=\frac{P_i}{V_i}$$

Solution

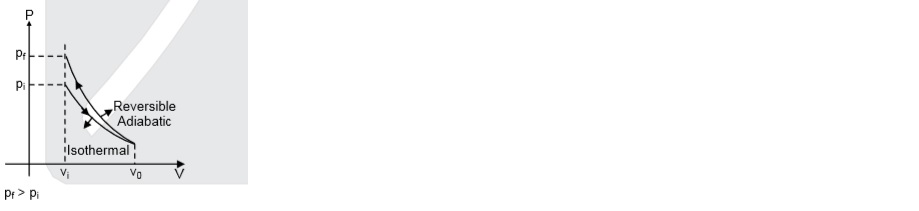

It is clear from the image that $$P_f>P_i$$ .
Question 10
1 / -0

The adiabatic Bulk modulus of a diatomic gas at atmospheric pressure is

A
$$0\ Nm^{-2}$$

B
$$1\ Nm^{-2}$$

C
$$1.4\times 10^{4}\ Nm^{-2}$$

D
$$1.4\times 10^{5}\ Nm^{-2}$$

Solution

The correct answer is option(D).
We have the bulk modulus formula as:
$$\text{Bulk Modulus}=\dfrac {\text{Pressure}}{\text{Strain}}=\dfrac {p}{(V_0-V_n)/V_0}$$
For an adiabatic process, the bulk modulus is given by
$$k=-\dfrac {V\Delta p}{\Delta V}=\gamma p$$
adiabatic bulk modulus $$=\gamma p$$
At NTP, $$p=1.013\times 10^5N/m^2$$ and $$\gamma=1.4$$
Hence Bulk modulus $$=1.013\times 10^5\times 1.4\approx 1.4\times 10^5N/m^2$$
