Question 1
1 / -0

At zero kelvin, most of the ionic crystals possess :

A
Frenkel defect

B
Schottky defect

C
metal excess defect

D
No defect

Solution

At zero kelvin, most of the ionic crystals posses no defect. This is due to presence of highly ordered arrangement.
Question 2
1 / -0

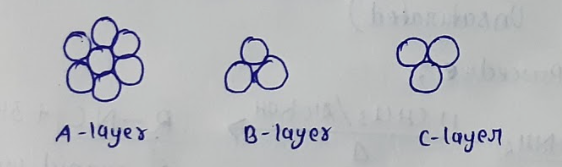

The ABAB packing and ABCABC packing are respectively called as:

A
hexagonal close packing (hcp) and cubic close packing (ccp)

B
cubic closed packing (ccp) and hexagonal closed packing (hcp)

C
body centered cubic (bcc) and hexagonal close packing (hcp)

D
hexagonal closed packing (hcp) and body-centered cubic (bcc)

Solution

$$\text { Solution:- Packing of lattice points in a crystal is of 2-types:- } \\$$
$$\text { 1.) Cubic dose packing (CCP) } \\$$
$$\text { 2.) hexagonal close packing (HCP) } \\$$
$$\text { layers of packing sphere or lattice points } \\$$
$$\text { in ccp & hcp are } 3 \text { . }$$

$$\text { - CCP is ABCABC ... type } \\$$
$$\text { and } \\$$
$$\text { - HCP is } A B \triangle B A B \text { .... type. }$$

$$\text { Examples:- } \\$$
$$\qquad \text { - Zinc blende }(Z n S)(4: 4)-c c p \text { . } \\$$
$$\qquad \text { - Wurtzite }(Z n S)(4: 4)-h c p \text { . } \\$$
$$\text { hence correct option is (A) }$$
Question 3
1 / -0

Tetragonal crystal system has which of the following unit cell dimensions?

A
$$a = b = c$$ and $$\alpha = \beta = \gamma = 90^{\circ}$$

B
$$a = b \neq c$$ and $$\alpha = \beta = \gamma = 90^{\circ}$$

C
$$a \neq b \neq c$$ and $$\alpha = \beta = \gamma = 90^{\circ}$$

D
$$a = b \neq c$$ and $$\alpha = \beta = 90^{\circ}, \gamma = 120^{\circ}$$
Question 4
1 / -0

Solid sodium amide, $$NaNH_2$$ has a cubic closed packed arrangement of $$N{ H }_2^-$$ ions with _____ voids occupied by $$Na^+$$ ions.

A
half the number of octahedral

B
all tetrahedral

C
half the number of tetrahedral

D
double the number of octahedral

Solution

$$Z_{effective}\quad of\quad {NH_2}^{-}=6\times \cfrac {1}{2}+8\times \cfrac {1}{8}=4$$ (CCP arrangement)

To maintain the $$NaNH_2$$ formula $$Z_{effective}$$ of $$Na^{+}$$ must be $$4$$.
So, $$Na^{+}$$ will be present at alternate tetrahedral voids.

$$Z_{effective}$$ of $$Na^{+}=\cfrac {1}{2}\times 8=4$$

Answer: (C) half the number of tetrahedral
Question 5
1 / -0

Which of the following is amorphous?

A
Sodium chloride

B
Quartz glass

C
Powdered marble

D
Cane sugar

Solution

Amorphous is defined as a substance laking clear structure or shape.
In quartz glass, elements are not organized in a periodic array, so they don't have a proper shape or structure.

Hence, quartz glass is am an example of an amorphous solid.
Question 6
1 / -0

An element (atomic mass $$=100$$ g/mol) having bcc structure has unit cell edge length $$400$$ pm. The density (in g cm$$^{-3}$$) of the element is:

A
$$10.376$$

B
$$5.188$$

C
$$7.289$$

D
$$2.144$$

Solution

Given, M $$= $$ 100 g/mol, a $$= $$ 400pm

For BCC -

$$n= 8\times \dfrac{1}{8}+ 1= 2$$

As we know,

$$\text{Density}\displaystyle=\frac{n\times M}{a^3\times N_A}$$ $$\displaystyle=\frac{2\times100}{(400\times10^{-10})^3\times6.02\times10^{23}}$$ $$=5.188$$ g cm$$^{-3}$$

$$(\because 400pm= 400\times 10^{-10} cm)$$

Hence, the correct option is B.
Question 7
1 / -0

Average composition of ordinary glass is:

A
$$Na_2O\cdot CaO\cdot 6SiO_2$$

B
$$Na_2O\cdot 2CaO\cdot 3SiO_2$$

C
$$Na_2O\cdot CaO\cdot 6SiO_2\cdot Cr_2O_3$$

D
$$Na_2O\cdot CaO\cdot PbO\cdot 6SiO_2$$

Solution

$$Na_2CO_3+xSiO_2\rightarrow Na_2O\cdot xSiO_2+CO_2$$

$$Na_2SO_4+C\rightarrow Na_2O+CO+SO_2$$

$$Na_2O+ySiO_2\rightarrow Na_2O\cdot ySiO_2$$

$$CaCO_3+zSiO_2\rightarrow CaO\cdot zSiO_2+CO_2\uparrow$$

The overall reaction on simultaneous fusion may be represented as:-
$$Na_2CO_3+CaCO_3+6SiO_2\rightarrow Na_2O\cdot CaO\cdot 6SiO_2+CO_2\uparrow$$

Specifically called as soda lime glass composed of approximately $$75$$%
$$SiO_2$$,$$Na_2O$$ and $$CaO$$ (lime).

Option A is the answer.
Question 8
1 / -0

A compound $$AB$$ has a rock type structure with $$A:B =1:1$$. The formula mass of $$AB$$ is $$6.023$$ $$y^{1/3}$$ y amu and the closest $$A-B$$ distance is $$y^{1/3}$$ nm.Calculate the density of lattice.

A
$$5.0 kg/m^3$$

B
$$10 kg/m^3$$

C
$$50kg/m^3$$

D
$$20 kg/m^3$$

Solution

$$AB$$ has rock-salt $$(A:B: :1:1)$$ structure, i.e., fcc structure $$(n=4)$$ and formula mass of $$AB$$ is 6.023 y g having closest distance $$A-B\:y^{1/3}$$ nm. Therefore, edge length of unit cell
$$(a)=2(A^++B^-)=2\times y^{1/3}\times10^{-9}m$$

$$\therefore$$ $$Density of AB=\displaystyle\frac{n\times\:formula\:mass}
{Av.no.\times V}=\frac{n\times\:formula\:mass}{6.023\times10^{23}\times a^3}$$

$$=\displaystyle\frac{4\times6.023\times y\times10^{-3}}{6.023\times10^{23}\times(2y1/3\times10^{-9})^3}$$ (formula mass in kg)

$$=5.0kg/m^3$$
Question 9
1 / -0

Crystal system in which maximum number of Bravais lattices are possible is:

A
cubic

B
triclinic

C
orthorhombic

D
rhombohedral

Solution

Orthorhombic crystal system has all four lattices i.e. primitive, body-centered, face-centered and end-centered.
Question 10
1 / -0

The maximum proportion of available volume that can be filled by hard spheres in diamond is:

A
$$0.52$$

B
$$0.34$$

C
$$0.32$$

D
$$0.68$$

Solution

The maximum packing or the maximum proportion of volume filled by hard spheres in various arrangements are as follows:

(a) Simple cubic $$\displaystyle=\frac{\pi}{6}=0.52$$

(b) Body-centered cubic $$\displaystyle=\frac{\pi\sqrt{3}}{8}=0.68$$

(c) Face-centered cubic $$\displaystyle=\frac{\pi\sqrt{2}}{6}=0.74$$

(d) Hexagonal closed packing $$\displaystyle=\frac{\pi\sqrt{2}}{6}=0.74$$

(e) Diamond $$\displaystyle=\frac{\pi\sqrt{3}}{6}=0.34$$
