Question 1
1 / -0

If the radius of first Bohr orbit is $$r$$, then the radius of second orbit will be

A
2$$r$$

B
$$\dfrac{r}{2}$$

C
4$$r$$

D
$$\sqrt{2}{r}$$

Solution

The radius of an orbit of revolution of electron is:
$$r = \dfrac{n^2h^2\epsilon_0}{\pi m e^2}$$
where, variables have their usual meanings.
$$\Rightarrow r \propto n^2$$

Therefore, $$r_1 \propto n_1^2$$ and $$r_2 \propto n_2^2$$
$$\Rightarrow \dfrac{r_2}{r_1} = \dfrac{n_2^2}{n_1^2}$$

$$\therefore \dfrac{r_2}{r} = \dfrac{2_2^2}{1_1^2}$$

$$\therefore r_2 = 4r$$
Question 2
1 / -0

Whenever a hydrogen atom emits a photon in the Balmer series

A
It need not emit any more photon

B
It may emit another photon in the Paschen series

C
It must emit another photon in the Lyman series

D
It may emit another photon on the Balmer series

Solution

Balmer series, electron is still in excited state. ($$n=2$$), so it will definitely come to a lower energy state by transit from ($$n=2 to n=1$$)
Question 3
1 / -0

Two electrons in an atom are moving in orbit of radii $$R$$ and $$9R$$ respectively. The ratio of their frequencies will be

A
$$1:8$$

B
$$8:1$$

C
$$1:27$$

D
$$27:1$$

Solution

Radius is directly proportional to square of $$n$$. Therefore, ratio of principal quantum number is $$1:3$$
Hence, ratio of frequencies is $$27:1$$.
Question 4
1 / -0

The electron in a hydrogen atom jumps from the ground state to the higher energy where its velocity is reduced to one-third of its initial value. If the radius of the orbit in the ground state is $$r$$, the radius of new orbit will be

A
$$3r$$

B
$$9r$$

C
$$\displaystyle\frac{r}{3}$$

D
$$\displaystyle\frac{r}{9}$$

Solution

Velocity is inversely proportional to $$n$$, hence $${ n }_{ 2 }=3$$
Radius is directly proportional to square of $$n$$.
Therefore, $$ r_{ 3 }=9r$$
Question 5
1 / -0

The radius of the Bohr orbit in the ground state of hydrogen atom is $$0.5\mathring{A}$$. The radius of the orbit of the electron in the third excited state of $$He^+$$ will be

A
$$8\mathring{A}$$

B
$$4\mathring{A}$$

C
$$0.5\mathring{A}$$

D
$$0.25\mathring{A}$$

Solution

Radius, $$r\propto \dfrac{n^2}{Z}$$

Thus, $$\dfrac{r_2}{r_1}=\dfrac{n_2^2Z_1}{n^2_1Z_2}=\dfrac{4^2\times 1}{1^2\times 2}=8$$

$$\Rightarrow r_2=8r_1=8(0.5)=4 \mathring A$$
Question 6
1 / -0

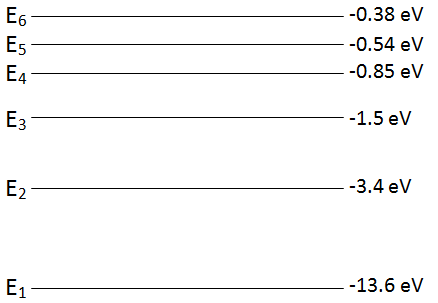

In the above figure, $$E_1$$ to $$E_6$$ represent some of the energy levels of an electron in the hydrogen atom.
Which one of the following transitions produces a photon of wavelength in the ultra-violet region of the electromagnetic spectrum?

A
$$E_2-E_1$$

B
$$E_3-E_2$$

C
$$E_4-E_3$$

D
$$E_6-E_4$$

Solution

If a transition is occurred into $${ E }_{ 1 }$$, resulting radiation will be U.V
Question 7
1 / -0

The approximate value of quantum number $$'n\ '$$ for the circular orbit of hydrogen of $$0.0001\space mm$$ in diameter is

A
$$1000$$

B
$$60$$

C
$$10000$$

D
$$31$$

Solution

For $$d = 0.0001\ mm = 10^{-7} m = 1000\ A$$
$$ r = 0.529 \cfrac{n^2}{Z} $$
For hydrogen, $$Z =1$$
$$ 500 = 0.529 n^2$$
$$n = 30.74 $$
Question 8
1 / -0

How many revolutions does an electron complete in one second in the first orbit of hydrogen atom?

A
$$6.62\times10^{15}$$

B
$$6.62\times10^{5}$$

C
$$6.62\times10^{10}$$

D
$$1.62\times10^{15}$$

Solution

The radius of first orbit , $$r_1=0.53 \times 10^{-10} m$$

Thus, circumference of this orbit , $$p=2\pi r_1=2\pi\times (0.53\times 10^{-10})=3.33\times 10^{-10} m$$

The speed of first orbit is approximately , $$v_1=c/137=\dfrac{3\times 10^8}{137}=2.19\times 10^6 m/s$$

Time period, $$T=p/v_1=\dfrac{3.33\times 10^{-10}}{2.19\times 10^6}=1.52\times 10^{-16} s$$

The number of revolutions per sec is the frequency.
So, the frequency of the revolutions, $$f=\dfrac{1}{T}=\dfrac{1}{1.52\times 10^{-16}}=6.6\times 10^15$$
Question 9
1 / -0

Which of the following parameters are the same for all hydrogen-like atoms and ions in their ground states?

A
Radius of the orbit

B
Speed of the electron

C
Energy of the atom

D
Orbital angular momentum of the electron

Solution

According to Bohr's model of an atom, energy of nth orbit is given by: $$E_n = -13.6 \dfrac{Z^2}{n^2} eV$$
Radius of nth orbit, $$r_n = 0.529 \dfrac{n^2}{Z} A^o$$
Speed of an electron in nth orbit, $$v_n = 2.18 \times 10^6 \dfrac{Z}{n} m/s$$
And orbital angular momentum, $$L_n =\dfrac{nh}{2\pi}$$
$$\implies$$ Radius of the orbit, speed of the electron, and energy of an atom depends on $$Z$$ whereas orbital angular momentum is independent of $$Z$$.
Hence, orbital angular momentum remains the same for all hydrogen like atoms and ions in ground state $$(n=1)$$.
Question 10
1 / -0

The electric potential energy between a proton and an electron is given by $$U=U_0ln\dfrac{r}{r_0}$$, where $$r_0$$ is a constant. Assuming Bohr's model to be applicable, write the variation of $$'r\ '$$ with $$n$$, $$n$$ being the principal quantum number.

A
$$r_n \propto n$$

B
$$r_n \propto 1/n$$

C
$$r_n \propto n^2$$

D
$$r_n \propto 1/n^2$$

Solution

The electrostatic interaction force between electron and proton is $$F=\dfrac{dU}{dr}=\dfrac{U_0}{rr_0}$$
According Bohr's first postulate, $$\dfrac{mv^2}{r}=F=\dfrac{U_0}{rr_0}$$
or $$v^2=\dfrac{U_0}{mr_0} \rightarrow constant$$
According Bohr's second postulate, $$mvr_n=\dfrac{nh}{2\pi}$$
As m,v and h are constant so we can write, $$r_n\propto n$$
