  • Question 1
    1 / -0
    Zener diodes with breakdown voltage ranging over 2V- 200 V are commercially available. Breakdown voltage of a zener diode
    Solution
    For Zener Diodes, the breakdown voltage decreases with increasing doping concentration.
  • Question 2
    1 / -0
    In a p-n junction diode, not connected to any circuit
    Solution
    In pn function diode p side of diode (+ve side) attract ve-ve charge and due to induct ion opposite charge +ve+ve charge appraises on n side which produce potential barrierand we know that charge separation produce electric fields from inside to p side of diode.
  • Question 3
    1 / -0
    Which of the following is a correct statement about current carrying conductor?
    Solution
    vd=etmEvd =\dfrac{et}{m} E
    tt \downarrow as T]T \uparrow ]
    As the temperature increases, the thermal agitation of the electrons increases thereby, increasing the number of collisions. Hence, drift velocity of the electrons decreases.
  • Question 4
    1 / -0
    In the circuit shown in figure, the diode is ideal. The potential difference between A and B is?

    Solution
    Diode short circuits the resistance of  2Ω2\Omega.
    \thereforeVoltage across points A and B will be
           V1=2323+2×V=V4V_1=\dfrac{\dfrac{2}{3}}{\dfrac{2}{3}+2}\times V=\dfrac{V}{4}.
  • Question 5
    1 / -0
    The following figure shown a logic gate circuit with two input A and B output C. The voltage waveforms of A, B and C are as shown in second figure given. The logic gate is?

    Solution

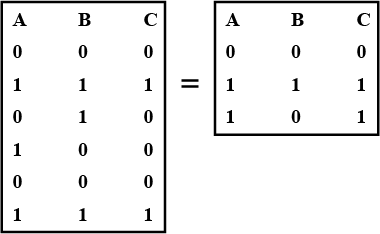

    Let's make truth table first,
    See the image
    The above truth table is of 'OR' gate.

  • Question 6
    1 / -0
    Read the following diagram and tell which of the following statements are true:

    Solution
    In (i) circuit, the emitter base junction is not biased, so no current flows across L; hence lamp L does not light. In (ii) circuit, the emitter base junction is forward biased, so emitter and hence collector current flows and lamp L lights up.
  • Question 7
    1 / -0
    Germanium and silicon junction diodes are connected in parallel. These are connected in series with a resistance RR, a milliammeter (mA)(mA) and a key (K)(K) as shown in Fig. When key (K)(K) is closed a current begins to flow in the milliammeter. The potential drop across the germanium diode is then

    Solution
    In Fig. germanium diode is reverse biased and silicon diode is forward biased. Therefore, there will be no current in the branch of germanium diode. The potential barrier of silicon diode is 0.7V0.7 V. Therefore, for conduction minimum potential difference across silicon is 0.7V0.7 V.
    Maximum potential difference across resistance, R=120.7=11.3V.R = 12 - 0.7 = 11.3 V.
  • Question 8
    1 / -0
    For the plate voltage, the plate current in a triode valve is maximum when the potential of :
    Solution
    When grid is given potential more electrons will cross the grid to reach the positive plate pp. Hence current increases.

  • Question 9
    1 / -0
    The electrical conductivity of a semiconductor increases when emf radiation of wavelength shorter the 24802480 nm is incident in it. The band gap (in eV) for the semiconductor is?
    Solution

  • Question 10
    1 / -0
    A non-conducting device is connected in a series circuit with a battery and a resistance. A current is found to pass through the circuit. If the polarity of the battery is reversed, the current drops to almost zero. The device may be
    Solution
    This behavior can be shown by a p-n junction.
    In the previous polarity, the p-n junction will be forward biased and so allowing to pass current through it. After reversing the polarity, it will be in reverse bias so won't allow current to pass through it.
