Question 1
1 / -0

Eight identical spherical mercury drops charged to a potential of 20 v each are coalesced into a single spherical drop:

A
The internal Energy of the system remains the same

B
The new potential of the drop is 80 V

C
Internal Energy of he system decreases

D
The potential remains the same i.e. 20 v

Solution

$$V=\dfrac {kq}{r}=20V$$
$$\dfrac {4}{3}\pi R^3=8\times \dfrac {4}{3}\pi r^3\Rightarrow R=2r$$
$$Q'=8q$$
$$V'=\dfrac {kQ'}{R}=\dfrac {k\times 8q}{2r}=\dfrac {4kq}{r}=4\times 20$$

$$V'=80 V$$
Question 2
1 / -0

To obtain $$3 \mu F$$ capacity from three capacitors of $$2 \mu F$$ each, they will be arranged as follows:

A
all the three in series

B
all the three in parallel

C
two capacitors in series and the third in parallel with the combination of first two

D
two capacitors in parallel and the third in series with the combination of first two

Solution

Adding all the capacitors in series creates a capacitance of $$2/3\mu F$$
Adding all the capacitors in parallel creates a capacitance of $$ 6\mu F$$
Adding two in series and third in parallel with both creates a capacitance of $$ 2/2 \mu F + 2 \mu F = 3 \mu F $$
Adding two in parallel and third in series creates a capacitance of $$ (4\times 2)/ (4+2) \mu F = 4/3 \mu F $$
Question 3
1 / -0

When a thin mica sheet is placed between the plates of a condenser then the amount of charge, so compared to its previous value, on its plates will become:

A
unchanged

B
zero

C
less

D
more

Solution

As no cell is connected to the capacitor, the charge will remain constant.
Question 4
1 / -0

Name the unit of electrical potential :

A
Coulomb

B
Watt

C
Joule

D
Volt

Solution

Answer is D.

The volt is a measure of electric potential. Electrical potential is a type of potential energy, and refers to the energy that could be released if electric current is allowed to flow.
Question 5
1 / -0

Electric potential is :

A
a scalar quantity

B
a vector quantity

C
neither scalar nor vector

D
sometimes scalar and sometimes vector

Solution

Electric potential is the electric potential energy per unit charge. In equation form, $$V=U/q,$$ where $$U$$ is the potential energy, $$q$$ is the charge, and $$V$$ is the electric potential. Since both the potential energy and charge are scalar quantities, so does the potential.
Question 6
1 / -0

Let S be the set of all points in a plane. Let R be a relation on S such that for any two points a and b, aRb iff b is within 1 cm from a. Then R is

A
Equivalence relation

B
Reflexive and symmetric not transitive

C
Reflexive and transitive not symmetric

D
Symmetric and transitive not reflexive

Solution

R is reflexive since any point is at distance O from itself so that it is within 1 cm from itselt.
R is symmetric since if a point a is within 1 cm from another point b, then b is also within 1 cm from a.
R is not transitive. Let a, b, c, be three points in a straight lines in this order such that distance between a and b is $$\frac{1}{2}$$ cm and distance between band c is $$\frac{2}{3}$$ cm. Then aRb and bRc. But (a, c) distance between a $$\not{\varepsilon}$$ R since the and c is $$\displaystyle \left ( \frac{1}{2} + \frac{2}{3} \right ) = \frac{7}{6} cm > 1 cm.$$
Question 7
1 / -0

1 volt = ?

A
1 joule

B
1 joule per coulomb

C
1 coulomb per metre

D
1 newton per coulomb

Solution

Using: $$V = \dfrac{W}{q}$$
$$\implies$$ 1 volt is equal to 1 joule per coulomb
Question 8
1 / -0

When a dielectric is introduced between the plates of a condenser, the capacity of condenser :

A
increases

B
decreases

C
remains same

D
none of these

Solution

If the empty Condensor has capacity $$C$$, then its capacity with dielectric is given by $$C' = kC$$, where $$k$$ is the dielectric constant of the dielectric material. $$k$$ can never be less than $$1$$.
Question 9
1 / -0

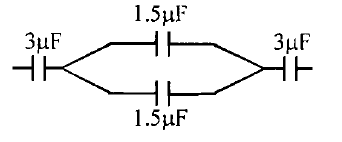

The equivalent capacitance in the given circuit is

A
$$3 \mu F$$

B
$$1.5 \mu F$$

C
$$2 \mu F$$

D
$$1 \mu F$$

Solution

Two 1.5 $$\mu$$ F capacitors are in parallel
$$\therefore C_p = 1.5 + 1.5 = 3 \mu F$$
Three $$3 \mu F$$ capacitors are in series
$$|therefore \displaystyle \frac{1}{C_{eq}} = \frac{1}{3} +\frac{1}{3} +\frac{1}{3} = \frac{3}{3} =1$$
$$\therefore c_{eq} = 1 \mu F$$
Question 10
1 / -0

what is the potential difference between two points, if 2J of work must be done to move a 4 mC charge from one point to another is:

A
50 V

B
500 V

C
5 V

D
5000 V

Solution

Answer is B.

The total work done = energy transferred.
so, we might see the equation energy = voltage x charge, E = V * Q, written as,
work = voltage x charge, W = V * Q.
In this case, the charge is 4 mC, that is, 0.004 C and work done is 2 J.
Therefore, V=W/Q = 2/0.004 = 500 V.
Hence, the potential difference between two points if 2 J of work must be done to move a 4 mC charge from one point to another is 500 V.
