Given:
\(Z=6 x+2 y\)
\(x+2 y \geq 3\)
\( x+4 y \geq 4\)
\(3 x+y \geq 3\)
\( x \geq 0, y \geq 0\)

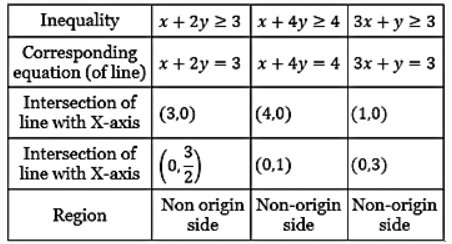

To draw the feasible region, construct table as follows:

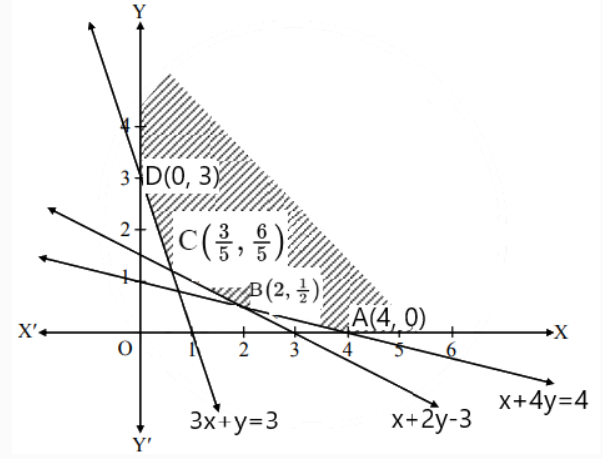

Shaded portion XABCDY is the feasible region, whose vertices are \(\mathrm{A}(4,0), \mathrm{B}, \mathrm{C}\) and \(\mathrm{D}(0,3)\).
\(B\) is the point of intersection of the lines \(x+4 y=4\) and \(x+2 y=3\)
Solving the above equations, we get:
\(\mathrm{x}=2, \mathrm{y}=\frac{1}{2} \)
\( \therefore \mathrm{B} =\left(2, \frac{1}{2}\right)\)
\(C\) is the point of intersection of the lines \(x+2 y=3\) and \(3 x+y=3\)
Solving the above equations, we get:
\(\mathrm{x}=\frac{3}{5}, y=\frac{6}{5} \)
\( \therefore C =\left(\frac{3}{5}, \frac{6}{5}\right)\)

Here, the objective function is \(Z=6 x+2 y\).
\(Z\) at \(A(4,0)=6(4)+2(0)=24\)
\(\mathrm{Z}\) at \(\mathrm{B}\left(2, \frac{1}{2}\right)=6(2)+2\left(\frac{1}{2}\right)=12+1=13\)
\(\mathrm{Z}\) at \(\left.C\left(\frac{3}{5}, \frac{6}{5}\right)=6\left(\frac{3}{5}\right)+2\left(\frac{6}{5}\right)=\frac{18}{5}\right)+\frac{12}{5}=6\)
\(\therefore Z\) at \(D(0,3)=6(0)+2(3)=6\)
\(\therefore Z\) has minimum value 6 at \(C\left(\frac{3}{5}, \frac{6}{5}\right)\) and \(D(0,3)\).
\(\therefore Z\) is minimum when, \(x=\left(\frac{3}{5}\right), y=\left(\frac{6}{5}\right), Z=6\) and \(x=0, y=3, Z=6\).
