Digital Logic Test 2

Question 1
2 / -0.33

Consider a quadratic equation x2 – 13x + 36 = 0 with coefficients in a base b. The solutions of this equation in the same base b are x = 5 and x = 6. Then b = _______.

A
7

B
8

C
9

D
10

Question 2
2 / -0.33

A function (A, B, C) defined by three boolean variables A, B, and C when expressed as the sum of products is given by:
F = A̅.B̅.C̅ + A̅.B.C̅ + A.B̅.C̅
where, A̅, B̅, and C̅ are the complements of the respective variables. The product of sums (POS) form of the function F is

A
F = (A + B + C) . (A + B̅ + C) . (A̅ + B + C)

B
F = (A̅ + B̅ + C̅) . (A̅ + B + C̅) + (A + B̅ + C̅)

C
F = (A + B + C̅) . (A + B̅ + C̅) . (A̅ + B + C̅) . (A̅ + B̅ + C) . (A̅ + B̅ + C̅)

D
F = (A̅ + B̅ + C) . (A̅ + B + C) . (A + B̅ + C) . (A + B + C̅) . (A + B + C)

Question 3
2 / -0.33

What are the first eight bits of mantissa part and the decimal value stored in exponent if (-28.375)10 is represented in single-precision IEEE 754 format?

A
Mantissa = 11000110

B
Exponent = 132

C
Mantissa = 11100011

D
Exponent = 131

Question 4
2 / -0.33

In the following truth table, V = 1 if and only if the input is valid.
Inputs
Outputs
D₀
D₁
D₂
D₃
X₀
X₁
V
0
0
0
0
x
x
0
1
0
0
0
0
0
1
x
1
0
0
0
1
1
x
x
1
0
1
0
1
x
x
x
1
1
1
1

What function does the truth table represent?

A
Priority encoder

B
Decoder

C
Multiplexer

D
Demultiplexer

Question 5
2 / -0.33

The clock frequency of 12 MHz is applied to a cascaded counter of modulus-4 counter, modulus-5 counter and modulus-6 counter.

A
The overall modulus of the cascaded counter is 60

B
The lowest output frequency of the cascaded counter is 100 kHz

C
The overall modulus of the cascaded counter is 120

D
The lowest output frequency of the cascaded counter is 200 kHz

Question 6
2 / -0.33

The simplified Sum of Product form of the following Boolean expression:
\((P + \bar Q + \bar R )(P + Q+R)(P+Q+\bar R )\) is

A
\(\bar P Q+R\)

B
\(P+Q\bar R \)

C
\(P\bar Q +R\)

D
\(PQ+ R\)

Question 7
2 / -0.33

Consider the unsigned 8-bit point binary number representation below:
X₇X₆X₅X₄ .X₃X₂X₁X₀
where the position of the binary point is between X₄ and X₃. X₇ is the MSB. Which of the decimal numbers cannot be represented exactly in the above representation:
(a) 14.1875
(b) 16.125
(c) 3.03125
(d) 1.6875

A
Only a and c

B
Only b and c

C
Only b and d

D
All (a), (b), (c) and (d)

Question 8
2 / -0.33

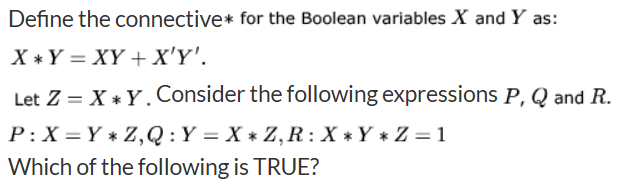

Consider the function F = A + B̅C, where F is a three-variable Boolean function in which A is MSB and C is LSB. Which of the following is/are false among the given options?

A
F = ∑ (1, 4, 5, 6, 7)

B
F = ∑ (1, 3, 5, 6, 7)

C
F = ∏ (0, 2, 4)

D
F = ∏ (0, 2, 3)

Question 9
2 / -0.33

Consider the 64-bit register which stops floating point number in IEEE Double precision format
What is the value of the number if 64 bits are given below?
1
10000000111
010111000…

A
-348--348

B
-3484--3481

C
-3487--3486

D
-3489--3482

Question 10
2 / -0.33

P, Q, and R are the decimal integers corresponding to the 4-bit binary number 1100 considered in signed magnitude, 1’s complement, and 2’s complement representations, respectively. The 6-bit 2’s complement representation of (P + Q + R) is

A
110101

B
110010

C
111101

D
111001

Question 11
2 / -0.33

How many functions does f1.f2 and f1 + f2 represents respectively if the given function is
\({\rm{f}}1{\left( {{\rm{a}},{\rm{b}},{\rm{c}}} \right)_{}} = \mathop \sum \nolimits_M \;\left( {0,{\rm{\;}}1,{\rm{\;}}4} \right) + {\rm{\;}}\mathop \sum \limits_\emptyset \left( {3,{\rm{\;}}5,{\rm{\;}}7} \right)\)
\({\rm{f}}2\left( {{\rm{a}},{\rm{b}},{\rm{c}}} \right) = \mathop \sum \nolimits_M \;\left( {2,3} \right) + {\rm{\;}}\mathop \sum \limits_\emptyset \left( {1,{\rm{\;}}6,{\rm{\;}}7} \right)\)
where ∑_m represents sum of min-terms and ∑_ϕ represents and don’t care

A
2, 4

B
8, 8

C
4, 8

D
4, 4

Question 12
2 / -0.33

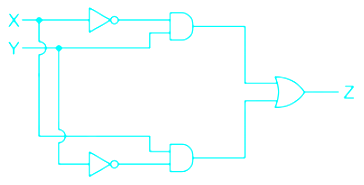

D input of a clocked D-flip-flop receives and input A ⊕ Q_n where A is an external logic input and Q_n is the output of the n^th D-FF before the clock appears. The circuit works as

A
EXOR gate

B
T-FF

C
D-FF

D
JK-FF
