Physics Test 24...

A rod PQ of mass M and length L is hinged at end P. The rod is kept horizontal by a massless string tied to point Q as shown in the figure. When the string is cut, the initial angular acceleration of the rod is:

A particle is projected with a velocity v, so that its range on a horizontal plane is twice the greatest height attained. If g is acceleration due to gravity, then its range is

A body starts from rest, the ratio of distances travelled by the body during 3^rd and 4^thseconds is :

A ray of light is incident at an angle of 60° on one face of a prism of angle 30°. The emergent ray of light makes an angle of 30° with incident ray. The angle made by the emergent ray with second face of prism will be:

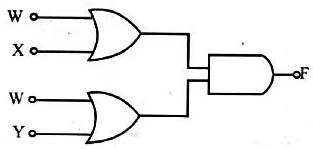

The diagram of a logic circuit is given below. The output F of the circuit is given by:

In the circuit shown in the Figure, cell is ideal and R₂ = 100Ω. A voltmeter of internal resistance 200Ω reads V₁₂ = 4 V and V₂₃ = 6 V between the pair of points 1 - 2 and 2 - 3 respectively. What will be the reading of the voltmeter between the points 1 - 3.

The energy required to separate the typical middle mass nucleus  into its constituent nucleons is:

(Mass of  119.902199amu, mass of proton = 1.007825amu and mass of neutron = 1.008665amu)

The astronomical phenomenon when the planet Venus passes directly between the Sun and the earth is known as Venus transit. For two separate persons standing on the earth at points M and N, the Venus appears as black dots at points M' and N' on the Sun. The orbital period of Venus is close to 220 days. Assuming that both earth and Venus revolve on circular paths and taking distance MN = 1000 km, calculate the distance M'N' on the surface of the Sun. [Take (2.75)^1/3 = 1.4]

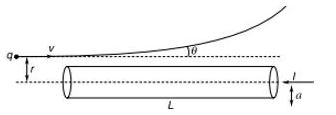

A straight wire of length L and radius a has a current I. A particle of mass m and charge q approaches the wire moving at a velocity v in a direction anti parallel to the current. The line of motion of the particle is at a distance r from the axis of the wire. Assume that r is slightly larger than a so that the magnetic field seen by the particle is similar to that caused by a long wire. Neglect end effects and assume that speed of the particle is high so that it crosses the wire quickly and suffers a small deflection θ in its path. Calculate θ.

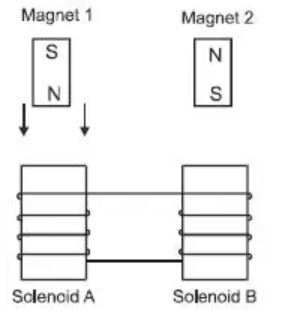

Two hollow-core solenoids, A and B, are connected by a wire and separated by a large distance, as shown in the diagram. Two bar magnets, 1 and 2, are suspended just above the solenoids. If the magnet 1 is dropped through solenoid A as shown, then the magnet 2 will simultaneously be
