Question 1
4 / -1

In the circuit shown, the currents i₁ and i₂ are

A
i₁ = 3A, i₂ = 1A

B
i₁ = 1A, i₂ = 3A

C
i₁ = 0.5A, i₂ = 1.5A

D
i₁ = 1.5A, i₂ = 0.5A

Solution
Question 2
4 / -1

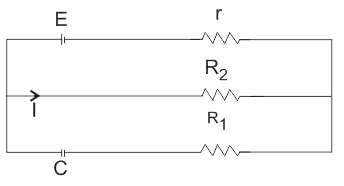

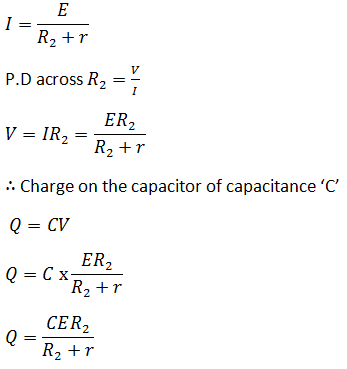

The charge on the capacitor of capacitance C shown in the figure below will be

A
CE

B

C

D

Solution
Question 3
4 / -1

Five equal resistance, each of resistance R, are connected as shown in figure below. A battery of V volt is connected between A and B. The current flowing m FC will be

A

B

C

D

Solution
Question 4
4 / -1

The equivalent resistance between A and B in the given circuit is

A
3 Ω

B
6 Ω

C
12 Ω

D
1.5 Ω

Solution
Question 5
4 / -1

What is the equivalent resistance between A and B in the given circuit?

A
4 Ω

B
2 Ω

C

D

Solution
Question 6
4 / -1

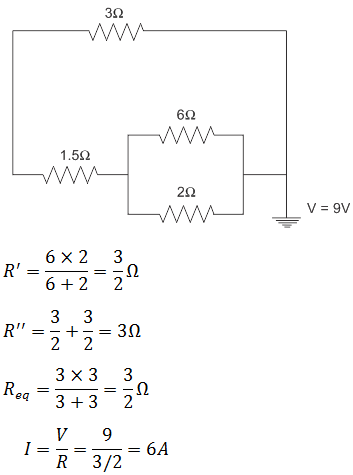

The total current supplied to the given circuit by the battery is

A
9 A

B
6 A

C
2 A

D
4 A

Solution
Question 7
4 / -1

Three resistors 1 Ω, 2 Ω and 3 Ω are connected to form a triangle. Across 3 Ω resistor a 3 V battery is connected. The current through 3 Ω resistor is

A
0.75 A

B
1 A

C
2 A

D
1.5 A

Solution
Question 8
4 / -1

Six resistors, each of value 3 Ω are connected as shown in the figure. A cell of emf 3 V is connected across AB. The effective resistance across AB and the current through the arm AB will be

A
o.6 Ω, 1 A

B
1.5 Ω, 2 A

C
0.6 Ω, 2 A

D
1.5 Ω, 1 A

Solution
Question 9
4 / -1

Figure shows a network of eight resistors, each equal to 2 Ω, connected to a 3 V battery of negligible internal resistance. The current I in the circuit is

A
0.25 A

B
0.50 A

C
0.75 A

D
1.0 A

Solution
Question 10
4 / -1

A uniform wire has resistance 24 Ω. It is bent in the form of a circle. The effective resistance between the two end points on any diameter of the circle is

A
6 Ω

B
12 Ω

C
3 Ω

D
24 Ω

Solution
