  • Question 1
    4 / -1

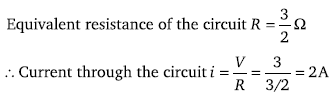

    The current passing through the ideal ammeter in the circuit given below is

    Solution

  • Question 2
    4 / -1

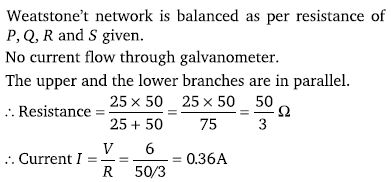

    In the Wheatstone\'s network given, P = 10 Ω, Q = 20 Ω, R = 15 Ω, S = 30 Ω. The current passing through the battery (of negligible internal resistance) is

    Solution

  • Question 3
    4 / -1

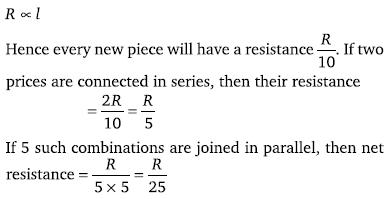

    A copper wire of resistance R is cut into ten parts of equal length. Two pieces each are joined in series and then five such combinations are joined in parallel. The new combination will have a resistance
    Solution

  • Question 4
    4 / -1

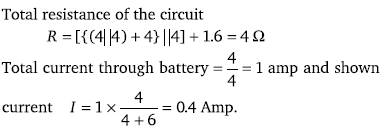

    In the circuit shown the value of I in ampere is

    Solution

  • Question 5
    4 / -1

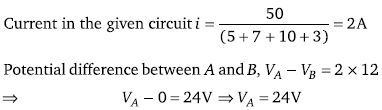

    In the circuit shown, the point \'13\' is earthed. Thepotential at the point \'A\' is

    Solution

  • Question 6
    4 / -1

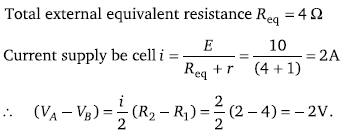

    In the circuit shown below, the cell has an e.m.f. of 10 V and internal resistance of 1 ohm. The other resistances are shown in the figure. The potential difference VA– VB is

    Solution

  • Question 7
    4 / -1
    A wire of resistance R is cut into \'n\' equal parts. These parts are then connected in parallel. The equivalentresistance of the combination will be
    Solution

  • Question 8
    4 / -1
    What is the current (i) in the circuit as shown in figure

    Solution

  • Question 9
    4 / -1
    n equal resistors are first connected in series and then connected in parallel. What is the ratio of the maximum to the minimum resistance?
    Solution

  • Question 10
    4 / -1

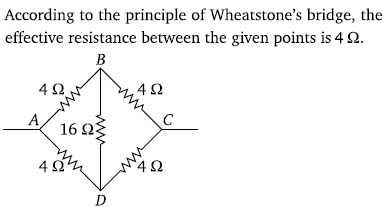

    A uniform wire of 16 Ω is made into the form of a square. Two opposite corners of the square are connected by a wire of resistance 16 Ω. The effective resistance between the other two opposite corners is
    Solution
