  • Question 1
    4 / -1

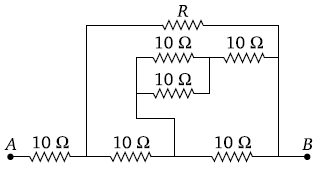

    For what value of R the net resistance of the circuit will be 18 ohms?

  • Question 2
    4 / -1

    Three resistances 4 Ω each are connected in the form of an equilateral triangle. The effective resistance between two corners is

  • Question 3
    4 / -1

    What will be the equivalent resistance between the two points A and D?

  • Question 4
    4 / -1

    What is the equivalent resistance between A and B in the figure below if R = 3 Ω

  • Question 5
    4 / -1

    Three resistances of values 2 Ω, 3 Ω and 6 Ω are to be connected to produce an effective resistance of 4 Ω. This can be done by connecting.

  • Question 6
    4 / -1

    What is the equivalent resistance of the circuit?

  • Question 7
    4 / -1

    The equivalent resistance of the circuit shown in the figure is

  • Question 8
    4 / -1

    In the given figure, the equivalent resistance between the points A and B is

  • Question 9
    4 / -1

    A circuit consists of five identical conductors as shown in figure. The two similar conductors are added as indicated by the dotted lines. The ratio of resistances before and after addition will be

  • Question 10
    4 / -1

    If all the resistors shown have the value 2 ohm each, the equivalent resistance over AB is A
