  • Question 1
    4 / -1

    A meter bridge is set-up as shown, to determine an unknown resistance ‘X’ using a standard 10 ohm resistor. The galvanometer shows null point when tapping-key is at 52 cm mark. The end-corrections are 1 cm and 2 cm respectively for the ends A and B. The determined value of ‘X’is

  • Question 2
    4 / -1

    In a potentiometer experiment, when three cells A, B and C are connected in series, the balancing length is found to be 740 cm. If A and B are connected in series balancing length is 440 cm and for B and C connected in series that is 540 cm. Then the e.m.f of EA, EB and ECare respectively (in volts)

  • Question 3
    4 / -1

    A galvanometer of resistance G can measure lA current. If a shunt S is used to convert it into an ammeter to measure A current. The ratio of G/S is

  • Question 4
    4 / -1

    Two uniform wires A and B are of the same metal and have equal masses. The radius of wire A is twice that of wire B. The total resistance of A and B when connected in parallel is

  • Question 5
    4 / -1

    Twelve wires of equal length and same cross-section are connected in the form of a cube. If the resistance of each of the wires is R, then the effective resistance between the two diagonal ends would be

  • Question 6
    4 / -1

    You are given several identical resistances each of value R = 10 Ω and each capable of carrying maximum current of 1 ampere. It is required to make a suitable combination of these resistances to produce a resistance of 5Ω which can carry a current of 4 ampere. The minimum number of resistances of the type R that will be required for this job

  • Question 7
    4 / -1

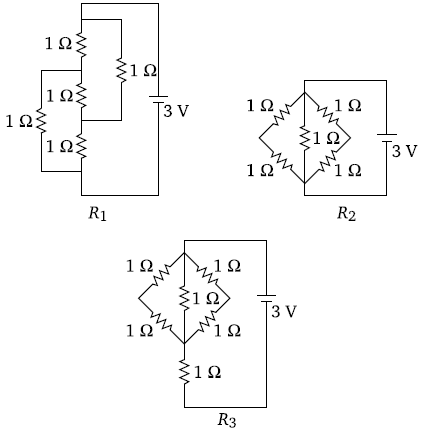

    Figure shows three resistor configurations R1, R2 and R3 connected to 3V battery. If the power dissipated by the configuration R1, R2 and R3 is P1, P2 and P3respectively then

  • Question 8
    4 / -1

    A torch bulb rated as 4.5 W, 1.5 V is connected as shown in the figure. The e.m.f. of the cell needed to make the bulb glow at full intensity is

  • Question 9
    4 / -1

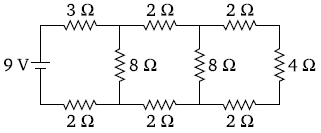

    In the circuit shown in the figure, the current through

  • Question 10
    4 / -1

    There are three resistance coils of equal resistance. The maximum number of resistances you can obtain by connecting them in any manner you choose, being free to use any number of the coils in any way is
