Question 1
4 / -1

Assertion In a simple battery circuit the point of lowest potential is positive terminal of the battery.
Reason The current flows towards the point of the higher potential as it flows in such a circuit from the negative to the positive terminal.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion.

B
If both Assertion and reason are true but Reason is not the correct explanation of the Assertion.

C
If Assertion is true but Reason is false.

D
If the Assertion and Reason both are false.

E
If Assertion is false but Reason is true.
Question 2
4 / -1

Assertion The temperature coefficient of resistance is positive for metals and negative for p-type semiconductor.
Reason The effective charge carriers in metals are negatively charged whereas in p-type semiconductor they are positively charged.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion.

B
If both Assertion and reason are true but Reason is not the correct explanation of the Assertion.

C
If Assertion is true but Reason is false.

D
If the Assertion and Reason both are false.

E
If Assertion is false but Reason is true.
Question 3
4 / -1

Assertion In the following circuit e.m.f is 2V and internal resistance of the cell is 1 Ω and R = 1 Ω, then reading of the voltmeter is 1 V.
Reason V = E – ir where E = 2V, i = 2/2 = 1A and 2 R = 1 Ω

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion.

B
If both Assertion and reason are true but Reason is not the correct explanation of the Assertion.

C
If Assertion is true but Reason is false.

D
If the Assertion and Reason both are false.

E
If Assertion is false but Reason is true.

Solution
Question 4
4 / -1

Assertion There is no current in the metals in the absence of electric field.
Reason Motion of free electrons is random.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion.

B
If both Assertion and reason are true but Reason is not the correct explanation of the Assertion.

C
If Assertion is true but Reason is false.

D
If the Assertion and Reason both are false.

E
If Assertion is false but Reason is true.
Question 5
4 / -1

Assertion Electric appliances with metallic body have three connections, whereas an electric bulb has a two pin connection.
Reason Three pin connections reduce heating of connecting wires.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion.

B
If both Assertion and reason are true but Reason is not the correct explanation of the Assertion.

C
If Assertion is true but Reason is false.

D
If the Assertion and Reason both are false.

E
If Assertion is false but Reason is true.
Question 6
4 / -1

Assertion The drift velocity of electrons in a metallic wire will decrease, if the temperature of the wire is increased.
Reason On increasing temperature, conductivity of metallic wire decreases.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion.

B
If both Assertion and reason are true but Reason is not the correct explanation of the Assertion.

C
If Assertion is true but Reason is false.

D
If the Assertion and Reason both are false.

E
If Assertion is false but Reason is true.
Question 7
4 / -1

Assertion The electric bulbs glows immediately when switch is on.
Reason The drift velocity of electrons in a metallic wire is very high.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion.

B
If both Assertion and reason are true but Reason is not the correct explanation of the Assertion.

C
If Assertion is true but Reason is false.

D
If the Assertion and Reason both are false.

E
If Assertion is false but Reason is true.
Question 8
4 / -1

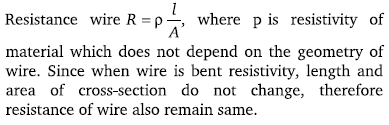

Assertion Bending a wire does not effect electrical resistance.
Reason Resistance of wire is proportional to resistivity of material.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion.

B
If both Assertion and reason are true but Reason is not the correct explanation of the Assertion.

C
If Assertion is true but Reason is false.

D
If the Assertion and Reason both are false.

E
If Assertion is false but Reason is true.

Solution
Question 9
4 / -1

Assertion In meter bridge experiment, a high resistance is always connected in series with a galvanometer.
Reason As resistance increases current through the circuit increases.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and reason are true but Reason is not the correct explanation of the Assertion.

C
If Assertion is true but Reason is false.

D
If the Assertion and Reason both are false.

E
If Assertion is false but Reason is true.
Question 10
4 / -1

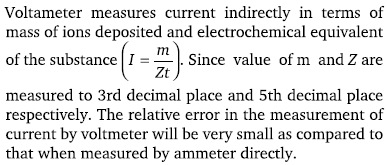

Assertion Voltameter measures current more accurately than ammeter.
Reason Relative error will be small if measured from voltameter.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion.

B
If both Assertion and reason are true but Reason is not the correct explanation of the Assertion.

C
If Assertion is true but Reason is false.

D
If the Assertion and Reason both are false.

E
If Assertion is false but Reason is true.

Solution
