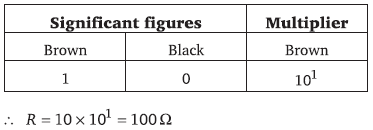

Question 1
4 / -1

What is the resistance of a carbon resistance which has bands of colours brown, black and brown?

A
100 Ω

B
1000 Ω

C
10 Ω

D
1 Ω

Solution
Question 2
4 / -1

The lead wires should have

A
Larger diameter and low resistance

B
Smaller diameter and high resistance

C
Smaller diameter and low resistance

D
Larger diameter and high resistance
Question 3
4 / -1

The alloys constantan and manganin are used to make standard resistance because they have

A
Low resistivity

B
High resistivity

C
Low temperature coefficient of resistance

D
Both (b) and (c)
Question 4
4 / -1

When a potential difference is applied across the ends of a linear metallic conductor

A
The free electrons are accelerated continuously from the lower potential end to the higher potential end of the conductor

B
The free electrons are accelerated continuously from the higher potential end to the lower potential end of the conductor

C
The free electrons acquire a constant drift velocity from the lower potential end to the higher potential end of the conductor

D
The free electrons are set in motion from their position of rest
Question 5
4 / -1

The electric resistance of a certain wire of iron is R. If its length and radius are both doubled, then

A
The resistance will be doubled and the specific resistance will be halved

B
The resistance will be halved and the specific resistance will remain unchanged

C
The resistance will be halved and the specific resistance will be doubled

D
The resistance and the specific resistance, will both remain unchanged

Solution
Question 6
4 / -1

A wire of diameter 0.02 metre contains 10²⁸ free electrons per cubic metre. For an electrical current of 100 A, the drift velocity of the free electrons in the wire is nearly

A
1 × 10^–19 m/s

B
5 × 10^–10 m/s

C
2 × 10^–4 m/s

D
8 × 10³ m/s

Solution
Question 7
4 / -1

The following four wires are made of the same material and are at the same temperature. Which one of them has highest electrical resistance?

A
Length = 50 cm, diameter = 0.5 mm

B
Length = 100 cm, diameter = 1 mm

C
Length = 200 cm, diameter = 2 mm

D
Length = 300 cm, diameter = 3 mm

Solution

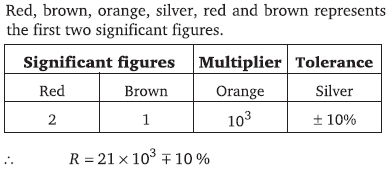

Question 8
4 / -1

The colour sequence in a carbon resistor is red, brown, orange and silver. The resistance of the resistor is

A
21 × 10³ ± 10%

B
23 × 10¹ ± 10%

C
21 × 10³ ± 5%

D
12 × 10³ ± 5%

Solution

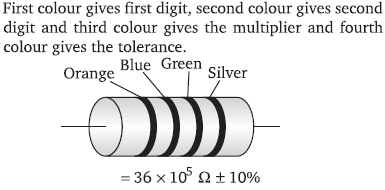

Question 9
4 / -1

A colour coded carbon resistor has the colours orange, blue, green and silver. Its resistance value and tolerancepercentage respectively are

A
36 × 10⁵Ω and 10%

B
36 × 10⁴Ω and 5%

C
63 × 10⁵Ω and 10%

D
36 × 10⁶Ω and 5%

Solution
Question 10
4 / -1

The tolerance level of a resistor with the colour code red, blue, orange, gold is

A
± 5%

B
± 10%

C
± 20%

D
± 40%
