Question 1
1 / -0

The capacitance of a parallel plate capacitor with air as medium is $$6 \mu F$$. With the introduction of a dielectric medium, the capacitance becomes $$30\mu F$$. The permittivity of the medium is :
$$(\in_0= 8.85 \times 10^{-12} C^2N^{-1} m^{-2})$$

A
$$1.77 \times 10^{-12} C^2 N^{-1} m^{-2}$$

B
$$0.44 \times 10^{-10} C^2 N^{-1} m^{-2}$$

C
$$5.00 C^2 N^{-1} m^{-2}$$

D
$$0.44 \times 10^{-13} C^2 N^{-1} m^{-2}$$

Solution

Capacitance of air capacitor
$$C_0 = \dfrac{\varepsilon_0A}{d} = 6 \mu F$$ ......... (i)
When a dielectric of permittivity $$\varepsilon_r$$ and dielectric constant K is introduced between the plates, then
Capacitance, $$C = \dfrac{K \varepsilon_0 A}{d} = 30 \mu F$$ ..... (ii)
Dividing eq. (ii) by (i), we get
$$\dfrac{C}{C_0} = \dfrac{\dfrac{K\epsilon_o A}{ d}}{\dfrac{\varepsilon_0 A}{d}} = \dfrac{30}{6}$$
$$\Rightarrow K = 5$$
$$\therefore$$ permittivity of the medium
$$\varepsilon_0 = \varepsilon_0 K$$
$$= 8.85 \times 10^{-12} \times 5 = 0.44 \times 10^{-10}$$
Question 2
1 / -0

Two parallel metal plates having charges +Q and -Q face each other at a certain distance between them. If the plates are now dipped in kerosene oil tank, the electric field between the plates will :

A
become zero

B
increase

C
decrease

D
remains same

Solution

Electric field between two parallel plates placed in vacuum is given by
E = $$\displaystyle \frac{\sigma}{\varepsilon_0}$$
In a medium of dielectric constant K, E' = $$\displaystyle \frac{\sigma}{\varepsilon_0 K}$$ For kerosene oil K > 1$$\Rightarrow$$ E' is less than E
Question 3
1 / -0

An electric charge $${10}^{-3}\mu C$$ is placed at the origin $$(0,0)$$ of $$(x,y)$$ co-ordinate system. Two points $$A$$ and $$B$$ are situated at $$(\sqrt {2}, \sqrt {2})$$ and $$(2,0)$$ respectively. The potential difference between the points $$A$$ and $$B$$ will be:

A
$$4.5\ V$$

B
$$9\ V$$

C
$$zero$$

D
$$2\ V$$

Solution

Given : $$q = 10^{-3} \mu C = 10^{-9} C$$

Distance of A from origin $$r_A = \sqrt{(\sqrt{2} - 0)^2 + (\sqrt{2} - 0)^2} = 2$$

Distance of B from origin $$r_B = 2$$

Thus potential due to charge at point A $$V_A = \dfrac{Kq}{r_A}$$ where $$K = \dfrac{1}{4\pi \epsilon_o} = 9 \times 10^9$$

$$\therefore$$ $$V_A = \dfrac{9 \times 10^9 \times 10^{-9}}{2} = 4.5$$ V

Potential due to the charge at B
$$V_B = \dfrac{Kq}{r_B} = \dfrac{9\times 10^9 \times 10^{-9}}{2} = 4.5$$ V

Potential difference between A and B
$$V_{AB} = V_A- V_B = 0$$
Question 4
1 / -0

A parallel plate capacitor with air as a dielectric has capacitance $$C$$. A slab of dielectric constant $$K$$, having same thickness as the separation between the plates is introduced so as to fill one-fourth of the capacitor as shown in the figure. The new capacitance will be:

A
$$(K + 3)\dfrac {C}{4}$$

B
$$(K + 2)\dfrac {C}{4}$$

C
$$(K + 1)\dfrac {C}{4}$$

D
$$\dfrac {KC}{4}$$

Solution

The two condensers with $$K$$ and with air are in parallel. With air, $$C_{1} = \dfrac {\epsilon_{0}}{d}\left (\dfrac {3A}{4}\right ) = \dfrac {3\epsilon_{0}A}{4d}$$
With medium, $$C_{2} = \dfrac {\epsilon_{0}K}{d}\left (\dfrac {A}{4}\right ) = \dfrac {\epsilon_{0}AK}{4d}$$
$$\therefore C' = C_{1} + C_{2}$$
or $$C' = \dfrac {3\epsilon_{0}A}{4d} + \dfrac {\epsilon_{0}AK}{4d} = \dfrac {\epsilon_{0}A}{d}\left [\dfrac {3}{4} +\dfrac {K}{4}\right ]$$
or $$C' = \dfrac {C}{4} (K + 3) \left [\because C = \dfrac {A\epsilon_{0}}{d}\right ]$$.
Question 5
1 / -0

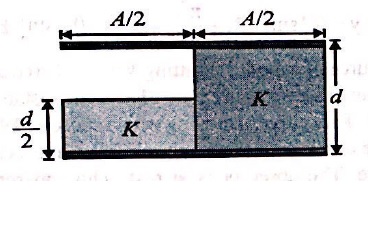

A parallel plate capacitor of area $$'A'$$ plate separation $$'d'$$ is filled with two dielectrics as shown. What is the capacitance of the arrangement?

A
$$\dfrac {3K\epsilon_{0}A}{4d}$$

B
$$\dfrac {4K\epsilon_{0}A}{3d}$$

C
$$\dfrac {(K + 1)\epsilon_{0}A}{2d}$$

D
$$\dfrac {K(K + 3)\epsilon_{0}A}{2(K + 1)d}$$

Solution

$$c_{1} = \dfrac {(A/2)\epsilon_{0}}{d/2} = \dfrac {A\epsilon_{0}}{d}, c_{2} = K \dfrac {A\epsilon_{0}}{d}, c_{3} = K\dfrac {A\epsilon_{0}}{2d}$$
$$\therefore c_{eq.} = \dfrac {c_{1}\times c_{2}}{c_{1} + c_{2}} + c_{3} = \dfrac {(3 + K)KA\epsilon_{0}}{2d(K + 1)}$$
$$(\because C_{1}$$ and $$C_{2}$$ are in series and resultant of these two in parallel with $$C_{3})$$.
Question 6
1 / -0

Space between the plates of a parallel plate capacitor is filled with a dielectric slab. The capacitor is charged and then the supply is disconnected to it. If the slab is now taken out , then:

A
work is not done to take out the slab

B
energy stored in the capacitor reduces

C
potential difference across the capacitor is decreased

D
potential difference across the capacitor is increased

Solution

When a capacitor is charged and then the supply is disconnected charge present on it becomes constant (law of conservation of charge)
Initial capacitance $$C=\frac {k\varepsilon_0 A}{d}$$ (with slab)
Final capacitance $$C=\frac {\varepsilon_0 A}{d}$$ (slab removed)
We know $$Q= CV$$
As C decreases and Q remains constant V has to increase.
Question 7
1 / -0

A parallel plate condenser is charged by connecting it to a battery. The battery is disconnected and a glass slab is introduced between the plates. Then,

A
potential increases

B
electric intensity incrases

C
energy decreases

D
capacity decreases

Solution

$$\rightarrow $$ When the capacitor is charged and battery is removed the charge present on capacitor remains constant. (Law of conservation of charge)
$$\rightarrow$$ We know $$C=\dfrac {\varepsilon_0 A}{d}$$
When slab is introduced, $$C=\dfrac {k\varepsilon_0 A}{d}$$
$$C$$ increases and $$Q$$ is constant.
We know: $$Q=CV$$
$$\therefore $$ $$V$$ has to decrease.
We know energy store in capacitor $$=\dfrac{1}{2} QV$$
$$\therefore $$ as V decreases, energy decreases.
Question 8
1 / -0

Fill in the blank:

In order to increase the capacity of a parallel plate condenser, one should introduce a sheet of $$\underline{\hspace{0.5in}}$$ between the plates (assume that the space is completely filled).

A
Mica

B
Tin

C
Copper

D
Stainless Steel

Solution

Dielectric constant is the factor by which the capacitance increases from its value in air when a dielectric is introduced between the plates.
Mica, among the materials mentioned above, is a dielectric material and hence to be used to increase the capacity.
Question 9
1 / -0

The capacity of a parallel plate air condenser is $$2\ \mu F$$. If a dielectric of dielectric constant $$4$$ is introduced between the plates, its new capacity is:

A
$$1.5\ \mu F$$

B
$$0.5\ \mu F$$

C
$$8\ \mu F$$

D
$$6\ \mu F$$

Solution

We know $$C=\dfrac{\epsilon_{0}A}{d}$$
When dielectric is added:
$$C'=\dfrac{K \epsilon_{0}A}{d}$$$$=4\times 2\ \mu F$$$$=8\mu F$$
Question 10
1 / -0

In an electrical circuit, which of the following quantities is analogous to temperature?

A
Potential

B
Resistance

C
Current

D
Charge

Solution

When there is a temperature difference, heat flows from high temperature to low temperature. Similarly, when there is a potential difference electric current flows from high potential to low potential. Hence, potential is analogous to temperature.
