Question 1
1 / -0

Calculate the unknown resistance R of the circuit as shown in figure, all resistance are connected in the series. The current is flowing through circuit is 2A and battery is of 20 voltage.

A
$$1 \Omega$$

B
$$2 \Omega$$

C
$$4 \Omega$$

D
$$6 \Omega$$

E
$$12 \Omega$$

Solution

Given : $$V =20$$ volts $$I = 2$$ A
Total resistance of the circuit $$R_{eq} =R + 4+4 = R+8$$
Using $$V = IR_{eq}$$
$$\therefore$$ $$20 =2 (R+8)$$ $$\implies R = 2\Omega$$
Question 2
1 / -0

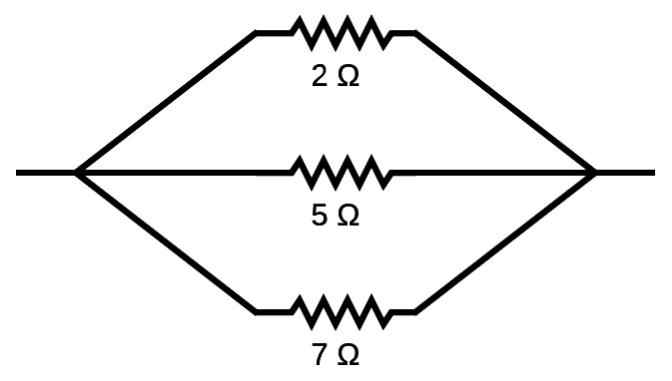

Three resistors ($$2, 5$$ and $$7$$ ohm) are wires as shown in the diagram. The equivalent resistance of this combination (in ohm) is:

A
$$\dfrac{59}{70}$$

B
$$\dfrac{70}{59}$$

C
$$\dfrac{1}{14}$$

D
$$14$$

E
Cannot be determined without additional information.

Solution

Given : $$R_1 = 2\Omega$$ $$R_2= 5\Omega$$ $$R_3 = 7\Omega$$
Equivalent resistance of parallel combination
$$\dfrac{1}{R_{eq}} =\dfrac{1}{R_1}+\dfrac{1}{R_2}+\dfrac{1}{R_3}$$
$$\therefore$$ $$\dfrac{1}{R_{eq}} =\dfrac{1}{2}+\dfrac{1}{5}+\dfrac{1}{7}$$
$$\Rightarrow \dfrac{1}{R_{eq}}=\dfrac{35+14+10}{70}$$
$$\Rightarrow R_{eq} =\dfrac{70}{59}$$ $$\Omega$$
Question 3
1 / -0

Two electrical bulbs have tungsten filament of same length. If one of them gives 60 watts and other 100 watts, then

A
100 watts bulb has thicker filament

B
60 watt bulb has thicker filament

C
Both filaments are of same thickness

D
It is impossible to get different wattage unless lengths are different

Solution

power $$P=\dfrac{V^2}{R}$$, where $$V$$ is the voltage and $$R$$ is the resistance.
So for higher power, the resistance should be less.
Therefore, the resistance of $$100\ W$$ bulb should be less.
We know that resistance $$R=\dfrac{\rho l}{A}$$, where $$\rho$$ is the resistivity, $$l$$ is the length, and $$A$$ is the area.
when the resistivity and the length are fixed, the area should be more for less resistance.
Thus, the $$100\ W$$ bulb should have a thicker filament.
Question 4
1 / -0

The resistors of resistances $$2\Omega, 4\Omega, 5\Omega$$ are connected in parallel. The total resistance of the combination will be:

A
$$\dfrac {29}{10}\Omega$$

B
$$\dfrac {19}{20}\Omega$$

C
$$\dfrac {10}{20}\Omega$$

D
$$\dfrac {20}{19}\Omega$$

Solution

Given: $$R_1=2\ \Omega$$, $$R_2=4\ \Omega$$, $$R_3=5\ \Omega$$

In parallel combination-
$$\dfrac{1}{R_{eq}}=\dfrac{1}{R_1}+\dfrac{1}{R_2}+\dfrac{1}{R_3}$$

$$\Rightarrow\dfrac{1}{R}=\dfrac{1}{2}+\dfrac{1}{4}+\dfrac{1}{5}$$

$$\Rightarrow R=\dfrac{20}{19}\Omega$$
Question 5
1 / -0

If four resistances, each of value $$1\ ohm$$, are connected in series, what will be the resultant resistance?

A
3 ohm

B
4 ohm

C
5 ohm

D
2 ohm

Solution

In series combination , equivalent resistance is given by-

$$R=R_1+R_2+R_3+R_4+R_5+.....$$

Here there are four resistors.

$$R=1+1+1+1$$

$$\implies R=4\Omega$$

Answer-(B)
Question 6
1 / -0

Calculate the equivalent resistance when two resistances of $$3\ \Omega$$ and $$6\ \Omega$$ are connected in parallel.

A
$$1 \ \Omega$$

B
$$3 \ \Omega$$

C
$$2 \ \Omega$$

D
$$6 \ \Omega$$

Solution

We know that in parallel combination, equivalent resistance is given by-

$$\dfrac{1}{R}=\dfrac{1}{R_1}+\dfrac{1}{R_2}$$

$$\implies \dfrac{1}{R}=\dfrac{1}{3}+\dfrac{1}{6}$$

$$\implies \dfrac{1}{R}=\dfrac{2+1}{6}=\dfrac{1}{2}$$

$$\implies R=2\ \Omega$$

Answer-(C)
Question 7
1 / -0

Two resistances are connected in parallel and a current is sent through the combination. The current divides itself:

A
In the inverse ratio of resistance

B
In the direct ratio of resistance

C
Equally in both the resistance

D
In none of the above manner

Solution

Current flows in inverse ratio of resistance
$$\dfrac{i_1}{i_2}=\dfrac{R_2}{R_1}$$
Question 8
1 / -0

Electrical power P is given by the expression P = $$\dfrac{Q \times V}{t}$$. time. What does $$Q$$ and $$V$$ stand for?

A
Charge, energy

B
Current, voltage

C
Current, power

D
Charge, voltage

Solution

$$Q$$ is the symbol for charge. $$V$$ is the symbol for voltage.
Question 9
1 / -0

What do you add to distilled water for making it to conduct electricity.

A
sulphuric acid

B
water

C
milk

D
base

Solution
Question 10
1 / -0

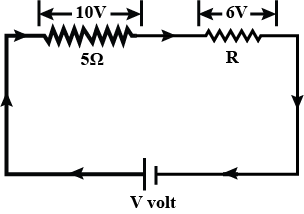

Two resistance are connected in series as shown in diagram. What is the current through the $$5\ ohm$$ resistance?

A
$$2 A$$

B
$$3 A$$

C
$$4 A$$

D
$$5 A$$

Solution

Voltage across $$5\Omega$$ resistor is $$V=10V$$

Current, $$I=\dfrac{V}{R}=\dfrac{10}{5}$$

$$\implies I=2A$$

Answer-(A)
