Question 1
1 / -0

A piston of cross-sectional area $$100 cm^2$$ is used in a hydraulic press to exert a force of $$10^7$$ dyne on the water. The cross-sectional area of the other piston which supports an object having a mass of 2000 kg is :

A
$$100 cm^2$$

B
$$10^9 cm^2$$

C
$$2\times 10^4 cm^2$$

D
$$2\times 10^{10} cm^2$$

Solution

As we know , 1 dyne = $$10 ^{-5}$$ N so $$ 10 ^{7} $$ dyne = 100 N
hence , for Hydraulic press we have
$$\dfrac{100N}{100 cm^{2}}$$ = $$\dfrac{2000g}{A}$$ $$\Rightarrow$$ Area = $$2\times 10 ^{4} cm^{2}$$
So option C is correct.
Question 2
1 / -0

A solid sphere falls with a terminal velocity of 10 m/s in air. If it is allowed to fall in vacuum:

A
terminal velocity will be more than 10 m/s

B
terminal velocity will be less than 10 m/s

C
terminal velocity will be 10 m/s

D
there will be no terminal velocity

Solution

Terminal velocity is reached in air since there is viscous force while moving through air( viscous force is balanced by the weight )
In vacuum, terminal velocity is not achieved since velocity of the sphere will keep on increasing with time.
Question 3
1 / -0

A uniformly tapering vessel shown in figure, is filled with liquid of density $$900 kg/m^3$$. The force that acts on the base of the vessel due to liquid is :

A
3.6 N

B
7.2 N

C
9.0 N

D
12.6 N

Solution

This cylinder so formed has volume exactly half the total volume,
$$\therefore$$ force due to liquid
$$= 2\times A \times 8gh$$
$$= 2\times 10^{-3} \times 9.8\times 900\times 0.4$$
$$= 7.056\ N = 7.2\ N$$ (Taking $$g = 10\ m/s^{2})$$.
Question 4
1 / -0

A girl stands on a box having 60 cm length, 40 cm breadth and 20 cm width in three ways. The pressure exerted by the box will be:

A
maximum when length and breadth form the base

B
maximum when breadth and width form the base

C
maximum when width and length form the base

D
the same in all the above three cases

Solution

The force exerted by the box on base=Weight of object=$$W$$
The pressure that it exerts on the base$$=\dfrac{W}{A}$$
where $$A$$ is the area of the base.
Hence the pressure is maximum for smallest area of the base, which is when formed by breadth and width.
Question 5
1 / -0

Equal volumes of two immiscible liquids of densities $$\rho$$ and $$2\rho$$ are filled in a vessel as shown in figure. Two small holes are punched at depth $$\frac{h}{2}$$ and $$\dfrac{3h}{2}$$ from the surface of lighter liquid. If $$v_1$$ and $$v_2$$ are the velocities of a flux at these two holes, then $$v_1/v_2$$ is:

A
$$\dfrac { 1 }{ 2\sqrt { 2 } } $$

B
$$\dfrac { 1 }{ 2 } $$

C
$$\dfrac { 1 }{ 4 } $$

D
$$\dfrac { 1 }{ \sqrt { 2 } } $$

Solution

Here, two small holes are punchesd at depth $$\frac{h}{2}$$ and $$\frac{3h}{2}$$ from the surface of lighter liquid. Hence, the height of first hole from the surface of lighter liquid is
$$h_1 = \dfrac{h}{2}$$
and the height of second hole from the first hole is(i.e. from surface of remaining liquid)
$$h_2 = \dfrac{3h}{2} - \dfrac{h}{2} = h$$
Now, we have the velocity of flux from first hole is
$$v_1 = \sqrt 2h_1g$$
$$v_1 = \sqrt 2(\frac{h}{2})g$$
$$v_1 = \sqrt hg$$
Also, the velocity of flux from second hole is
$$v_2 = \sqrt 2h_2g$$
$$v_2 = \sqrt 2hg$$
Therefore,
$$\dfrac{v_1}{v_2} = \dfrac{\sqrt hg}{\sqrt 2hg}$$
$$\dfrac{v_1}{v_2} = \dfrac{1}{\sqrt 2}$$
Question 6
1 / -0

With the increase in the area of contact of an object, the pressure:
(Note : Thrust remains same)

A
Increases

B
Decreases

C
Is not affected

D
None of these

Solution

Since,
$$P = \frac{F}{A}$$
Thus pressure is inversely proportional to area,
$$i.e. \,\,P \propto \frac{1}{A}$$
With the increase in the area of contact of an object the pressure decreases because pressure is inversely proportional to area of contact.
Question 7
1 / -0

Figure shows water filled in a symmetrical container. Four pistons of equal area $$A$$ are used at the four openings to keep the water in equilibrium. Now an additional force $$F$$ is applied at each piston. The increase in the pressure at the centre of the container due to this addition is

A
$$\dfrac {F}{A}$$

B
$$\dfrac {2F}{A}$$

C
$$\dfrac {4F}{A}$$

D
0

Solution

The four pistons are initially in equilibrium. As additional force $$F$$ is applied to each piston, the pressure in the fluid at each point must be increased by $$F.A$$ so that each piston retains state of equilibrium.
Thus, the increment in the pressure at each point is
$$\Delta P=\dfrac {F}{A}$$ (by Pascal's law)
So, the pressure increment at the centre is $$ 4\dfrac {F}{A}$$
Question 8
1 / -0

A Cylindrical vessel of cross-sectional area $$1000cm^{2}$$, is fitted with a frictionless piston of mass 10 kg, and filled with water completely. A small hole of cross-sectional area $$10mm^{2}$$ is opened at a point 50 cm deep from the lower surface of the piston. The velocity of effluent from the hole will be

A
10.5 m/s

B
3.4 m/s

C
0.8 m/s

D
0.2 m/s

Solution

Given that
$$A = 1000 cm^3$$
$$m = 10 Kg =10000 g$$
$$A_h = 10 mm^2 = 0.1 m^2$$
$$(H-h) = 50 cm$$
Here, the force on piston is
$$F = mg$$
Hence, Increase in pressure on the liquid in the wider tube is
$$P = \frac{F}{A} = \frac{mg}{A}$$
Let, H is the level of water to which piston will move, thus
$$P = H\rho g$$
$$H = \frac{P}{\rho g}$$
$$H = \frac{mg}{A\rho g} = \frac{m}{A\rho}$$
$$H = \frac{10000}{1000}$$.......($$\because \rho = 1$$)
$$\therefore H = 10 cm$$ from surface of tube.
Since, (H-h) = 50cm, h = 60cm = 0.6 m
The velocity of effluent from the hole is
$$v = \sqrt h\rho g$$
$$v = (\sqrt 2gh) $$
$$v = \sqrt (2)(9.8)(0.6) = 3.4 ms^{-1}$$
Question 9
1 / -0

Match column I with column II :
List I List II
Magnus energy Pascal's Law
Loss of Energy Archimedes' principle
Pressure is same at same level in a liquid Viscous force
Hydraulic Machines Lifting of asbestos roofs

A
B$$\rightarrow$$4, C$$\rightarrow$$2, D$$\rightarrow$$1, A$$\rightarrow$$1

B
A$$\rightarrow$$4, B$$\rightarrow$$3, C$$\rightarrow$$1, D$$\rightarrow$$1

C
C$$\rightarrow$$4, A$$\rightarrow$$2, B$$\rightarrow$$1, D$$\rightarrow$$1

D
D$$\rightarrow$$4, A$$\rightarrow$$2, B$$\rightarrow$$1, C$$\rightarrow$$1

Solution

Magnus effect talks of difference in pressure caused due to difference in velocity to lift a structure. Lifting of asbestos roofs during cyclonic storms in based on this phenomenon. So, $$A\rightarrow 4$$
Viscous force is wet friction and brings loss in internal energy. So, $$B\rightarrow 3$$
At the same level in the same liquid in a container, the pressure is the same according to Pascal's law. So, $$C\rightarrow 1$$
Hydraulic machines use the idea of Pascal's law to transfer equal pressure in all directions from the free surface where it is applied. So, $$D\rightarrow 1$$
Question 10
1 / -0

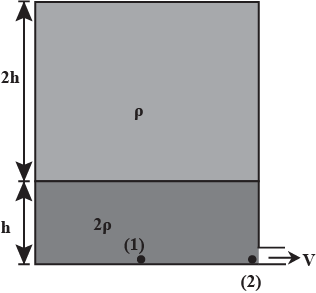

The velocity of the liquid coming out of a small hole of a vessel containing two different liquids of densities $$2\rho$$ and $$\rho$$ as shown in the figure is

A
$$\sqrt {6gh}$$

B
$$2\sqrt {gh}$$

C
$$2\sqrt {2gh}$$

D
$$\sqrt {gh}$$

Solution

Pressure at (1), $$P_1=P_{atm}+\rho g(2h)+2\rho gh$$
Applying Bernoulli's theorem between points (1) and (2),
$$(P_{atm}+2\rho gh)+(2\rho) gh=P_{atm}+\dfrac {1}{2}(2\rho )v^2$$
$$\Rightarrow v=2\sqrt {gh}$$
