Question 1
1 / -0

The lower end of a glass capillary tube is dipped in water. Water rises to a height of 8 cm. The angle of contact is $${ 0 }^{ \circ }$$. the tube is then broken at a height of 6 cm. The height of water column and angle of contact will be.

A
$$6m,{ sin }^{ -1 }\left( \dfrac { 3 }{ 4 } \right) $$

B
$$6m,{ sin }^{ -1 }\left( \dfrac { \sqrt { 7 } }{ 4 } \right) $$

C
$$4m,{ sin }^{ -1 }\left( \dfrac { \sqrt { 7 } }{ 8 } \right) $$

D
$$6m,{ 0 }^{ \circ }$$

Solution

we know that $$h = {(2T cos θ) / (ρrg)} $$
As radius and content of tube is same.

$$T, r, ρ, g $$ = constant

$$∴ {h / (cosθ)} $$= constant

$$ ∴ (h1 / h2) = {(cosθ_1) / (cosθ_2)} $$

Initial height = $$h1 = 8 cm $$

As capillary is broken at height 6 cm, meaning that water will rise to height 6 cm hence $$h2 = 6 cm$$

$$(h1 / h2) = {(cos 0) / (cos θ_2)} $$ --------- initial angle = 0°

$$ ∴ (8/6) = {1 / (cos θ_2)} $$

$$cos θ_2 = 3/4 $$
$$θ_2 = cos^{–1} (3/4) $$

∴ height = $$6 \,cm$$ & angle = $$cos^{–1} (3/4) $$

or $$sin^{–1} (\sqrt7/4) $$
Question 2
1 / -0

A steel ball of density 7800 kg/$${ m }^{ 3 }$$ falls through water of density 1000 kg/$${ m }^{ 3 }$$ and coefficient of viscosity 0.01 poise. Find its terminal velocity (approx) if the radius is 1 cm.

A
1500 m/s

B
500 m/s

C
1000 m/s

D
None of these
Question 3
1 / -0

Vessel shown in the figure has two sections of areas of cross section $$A{}_{1}$$ and $${A}_{2}$$. A liquid of density $$\rho$$ fills both sections up to a height $$h$$ in each. Neglect atmospheirc pressure

A
The pressure at the base of the vessel is $$2h\rho g$$

B
The force exerted by the liquid on the base is $$2h\rho {A}_{2}g$$

C
The weight of the liquid is less thatn $$2hg\rho {A}_{2}$$

D
Walls of the vessel at the level $$x$$ exert a downward force $$hg\rho({A}_{2}-{A}_{1})$$ on the liquid.

Solution

$$\begin{array}{l} pressure\, at\, the\, bottom\, =\rho g\Delta H=2\rho gh \\ Force\, at\, bottom=2\rho gh\times { A_{ 2 } } \\ weight\, of\, liquid\, is\, less\, than\, 2\rho gh\times { A_{ 2 } } \\ \Delta F=\rho gh{ A_{ 2 } }-\rho gh{ A_{ 1 } }=\rho gh\left( { { A_{ 0 } }-{ A_{ 1 } } } \right) . \end{array}$$
Hence, the option $$D$$ is the correct answer.
Question 4
1 / -0

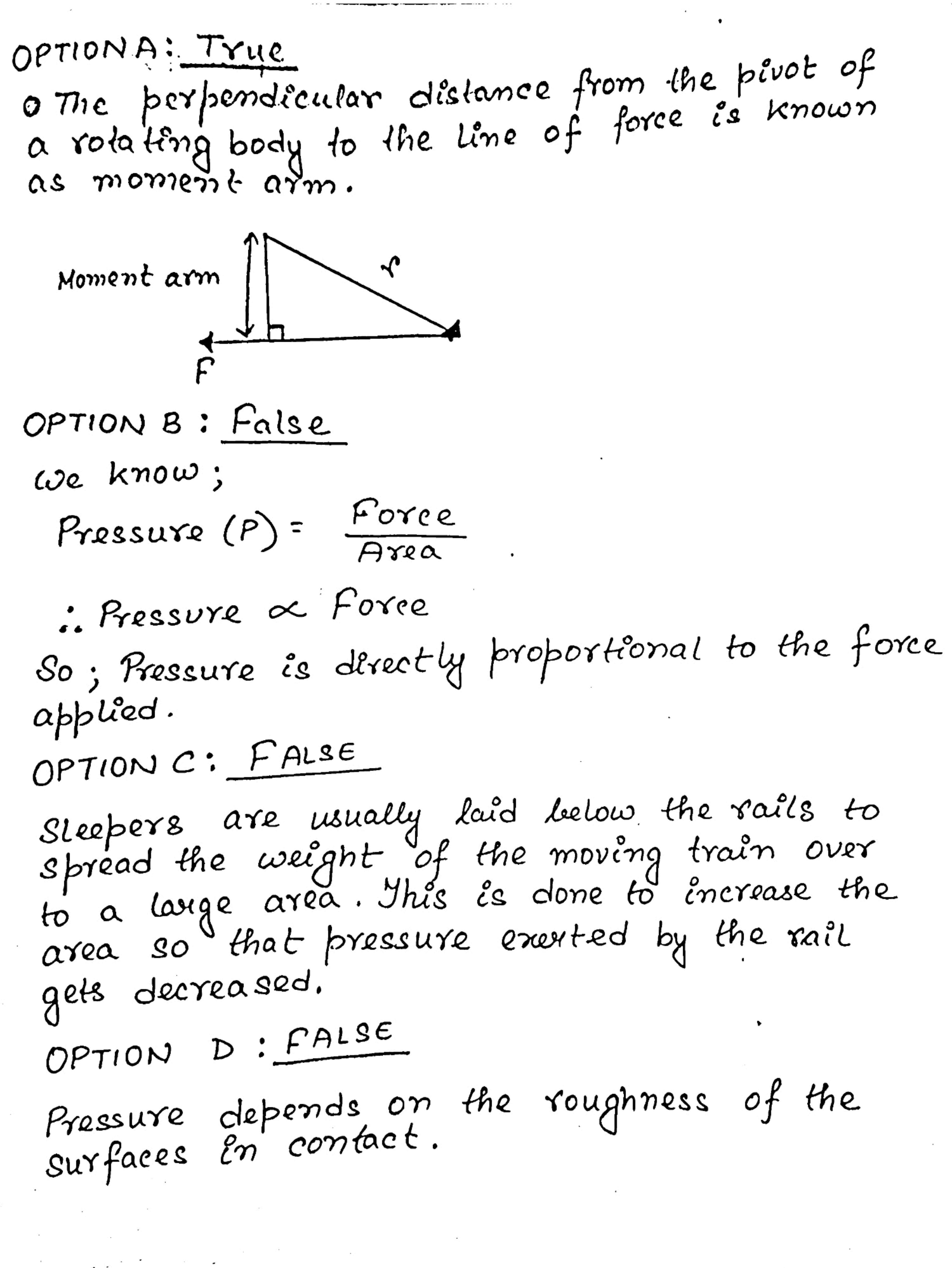

Write true or false. Correct the false statements.

A
The perpendicular distance from the pivot of a rotating body to the line of known as the moment arm.

B
pressure is inversely proportional to the force applied

C
Wooden sleepers are placed under railway tracks in order to increase pres.

D
pressure is independent of the roughness of the surfaces in correct.

Solution
Question 5
1 / -0

If pressure at half the depth of a lake is equal to $$\cfrac {2}{3}$$ pressure at the bottom of the lake then what is the depth of the lake $$[RPET=2000]$$

A
$$10$$ m

B
$$20$$ m

C
$$60$$ m

D
$$30$$ m

Solution

The Pressure at bottom of the lake = $$P_0+h\rho g$$
The Pressure at half the depth of a lake = $$P_0+\dfrac{h}{2}\rho g$$
According to given condition
$$P_0+\dfrac{1}{2}h\rho g=\dfrac{2}{3}(P_0+h\rho g)\Rightarrow \dfrac{1}{3}P_0 = \dfrac{1}{6}h\rho g$$
$$h=\dfrac{2P_0}{\rho g}=\dfrac{2\times10^5}{10^3\times10}=20m$$
Question 6
1 / -0

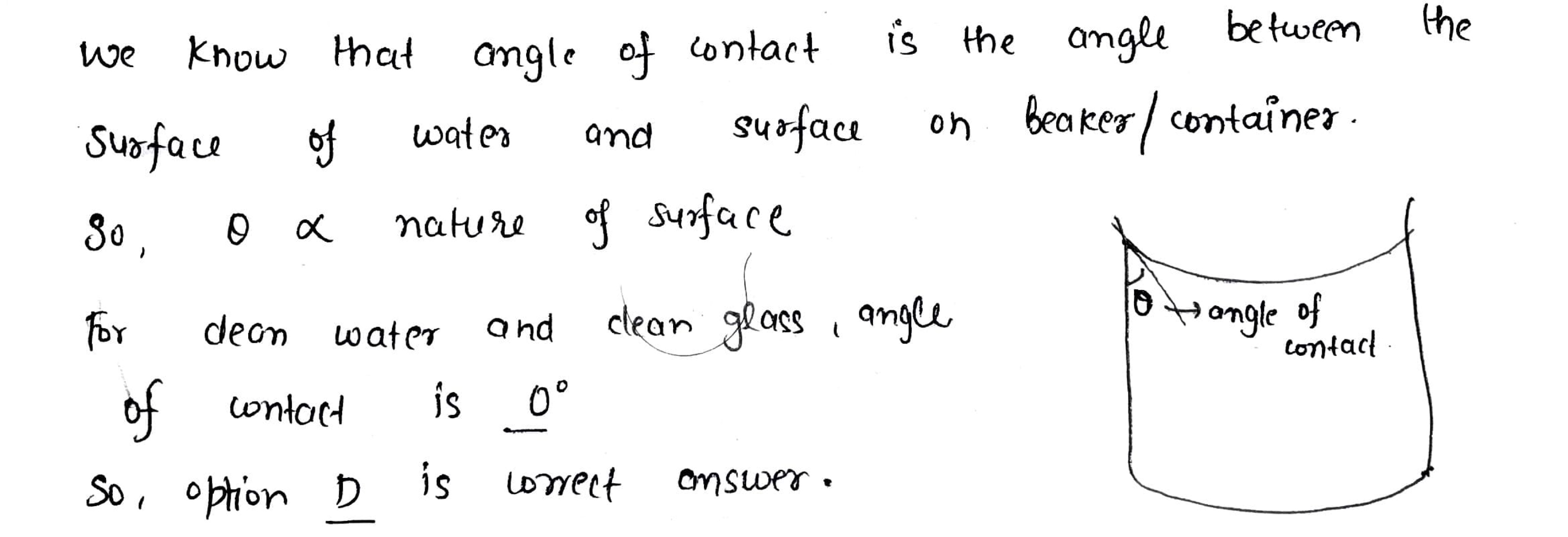

The angle of contact for the pair of pure water with clean glass is

A
acute

B
obtuse

C
$$90^0$$

D
$$0^0$$

Solution
Question 7
1 / -0

The angle of contact between glass and mercury is :

A
$$
0^{0}
$$

B
$$
30^{0}
$$

C
$$
90^{0}
$$

D
$$
135^{0}
$$

Solution

The angle of contact between glass and mercury is $$135^{0}$$
Question 8
1 / -0

Radius of a soap bubble is $$r$$, surface tension of soap solution is $$T$$. Then without increasing the temperature, how much energy will be needed to double its radius.

A
$$4\pi {r^2}T$$

B
$$2\pi {r^2}T$$

C
$$12\pi {r^2}T$$

D
$$24\pi {r^2}T$$

Solution

As we know ,
without increasing temperature increasing radius will be done by performing some work on the bubble,

$$W=8\pi T(R_{2}^{2}-R_{1}^{2})$$

$$=8\pi T[(2r)^{2}-(r)^{2}]=24\pi r^{2}T$$
Question 9
1 / -0

By sucking through a straw, a student can reduce the pressure in his lungs to 750 mm of Hg (density $$13.6 gcm^{-3}$$) using the straw, he can drink water from a glass up to a maximum depth of

A
$$10.2 cm$$

B
$$75.3 cm$$

C
$$13.6 cm$$

D
$$1.96 cm$$

Solution

Normal pressure is $$760 mm\,Hg$$ so the boy can create a depression of $$10 mm\,Hg$$ in his lungs.

According to the law of flotation

Weight of floating body $$=$$ Weight of displaced liquid

Wt. Of water displaced from glass $$=$$ Wt of air of lung reduced (interm of mmHg)

Wt of water displaced from glass = density of water $$(d_1) \times$$ volume of water displaced $$(v_1)$$

Wt of air reduce from lung (interm of mmHg) $$=$$ density of Hg $$(d_2)\times$$ volume of air displaced $$(v_2)$$

Now $$d_1 \times v_1 = d_2 \times v_2$$

And $$v_1 = d_2 \times \dfrac{v_2}{d_1} = 13.6 g/cm –3 \times \dfrac{10mm}{ 1g/cm} –3 = 136mm = 13.6cm$$
Question 10
1 / -0

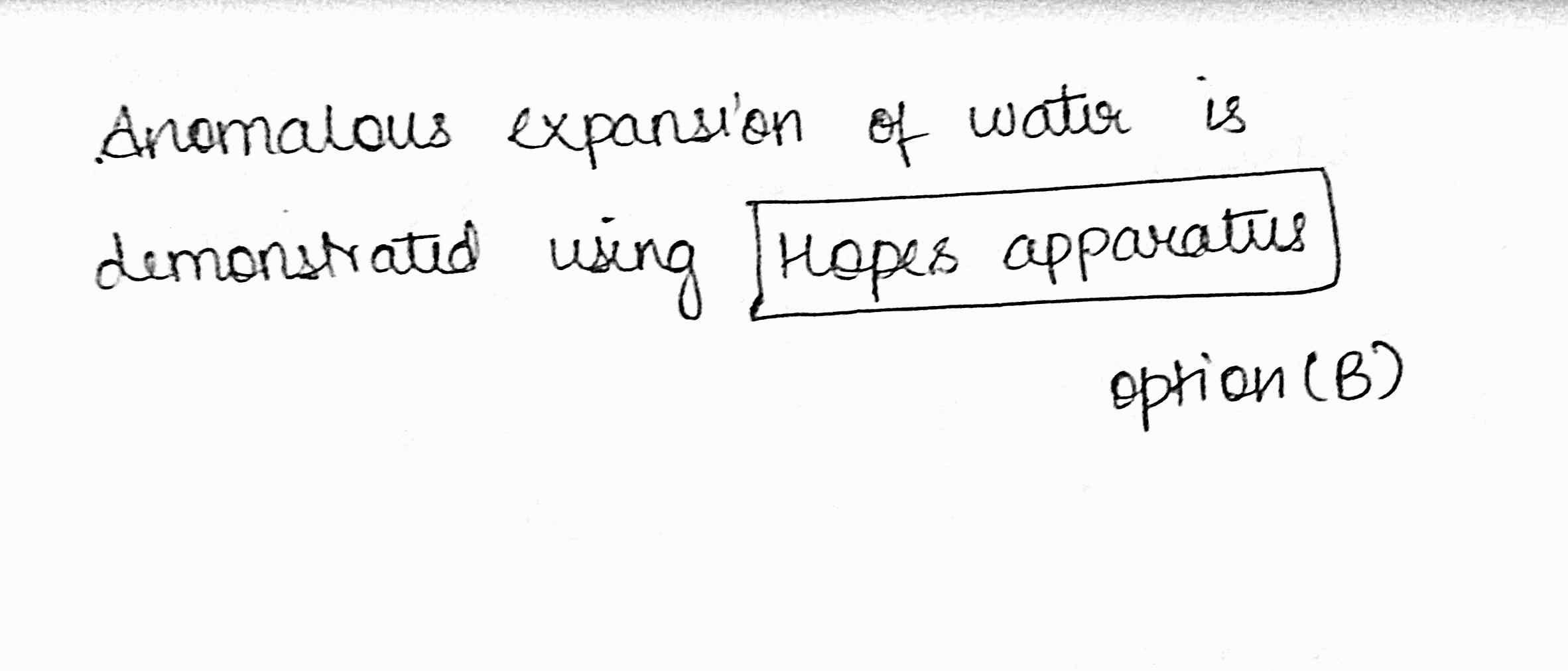

Anomalous expansion of water is demonstrated by using

A
Jolly's apparatus

B
Hopes apparatus

C
Regnaults apparatus

D
Specific apparatus

Solution
