  • Question 1
    1 / -0

    Directions For Questions

    Consider a particle moving along the $$x$$-axis as shown in Fig. 4.138. Its distance from the origin O is described by the coordinate $$x$$ which varies with time. At a time $$t_1,$$ the particle is at point P, where its coordinate is $$x_2$$. The displacement during the time interval from $$t_1$$ and $$t_2$$ is the vector from P to Q the $$x$$-component of this vector is $$(x_2-x_1)$$ and all other component are zero.
     It is convenient to represent the quantity $$x_2-x_1$$, the change in $$x$$, by means of a notation using the Greek letter $$\triangle $$ (capital delta) to designate a change in any quantity. Thus we write $$\triangle x=x_2-x_1$$ in which $$\triangle x$$ is not a product but is to be interpreted as a single symbol representing the change in the quantity $$x$$. Similarly, we denote the time interval from $$t_1$$ to $$t_2$$ as $$t=t_2-t_1.$$
    The average velocity of the particle is defined as the ratio of the displacement $$\triangle x$$ to the time interval $$\triangle t$$. We represent average velocity by the letter v with a bar $$\left( \overline { v }  \right) $$ to signify average value. Thus $$\overline { v } =\dfrac { x_{ 2 }-x_{ 1 } }{ t_{ 2 }-t_{ 1 } } =\dfrac { \triangle x }{ \triangle t } $$

    ...view full instructions

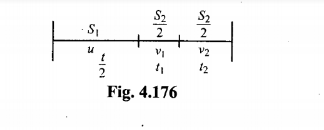

    A particle moves half the time of its journey with velocity u. The rest of the half time it moves with two velocities $$v_1$$ and $$v_2$$ such that half the distance it covers with $$v_1$$ and the other half with $$v_2$$. Find the net average velocity assume straight line motion:
    Solution
    $$S_{ 1 }=\dfrac { ut }{ 2 } ,\dfrac { S_{ 2 } }{ 2 } =v_{ 1 }t_{ 1 }=v_{ 2 }t_{ 2 }$$       (i)
    $$\dfrac{t}{2}=t_1+t_2$$           (ii)
    From (i) and (ii) $$\Rightarrow t_1=\dfrac{v_2t}{2(v_1+v_2)}$$
    $$v_{av}=\dfrac{S}{t}=\dfrac{S_1+S_2}{t}=\dfrac { \dfrac { ut }{ 2 } +{ 2 }v_{ 1 }t_{ 1 } }{ t } $$
    Put the value of $$t_1$$ and get $$v_{av}=\dfrac { u\left( v_{ 1 }+v_{ 2 } \right) +2v_{ 1 }v_{ 2 } }{ 2\left( v_{ 1 }+v_{ 2 } \right)  } $$

  • Question 2
    1 / -0
    The velocity of a particle varies with time as shown below. The distance travelled by the particle during $$t=2s$$ and $$t=6s$$ is:

    Solution

  • Question 3
    1 / -0

    Directions For Questions

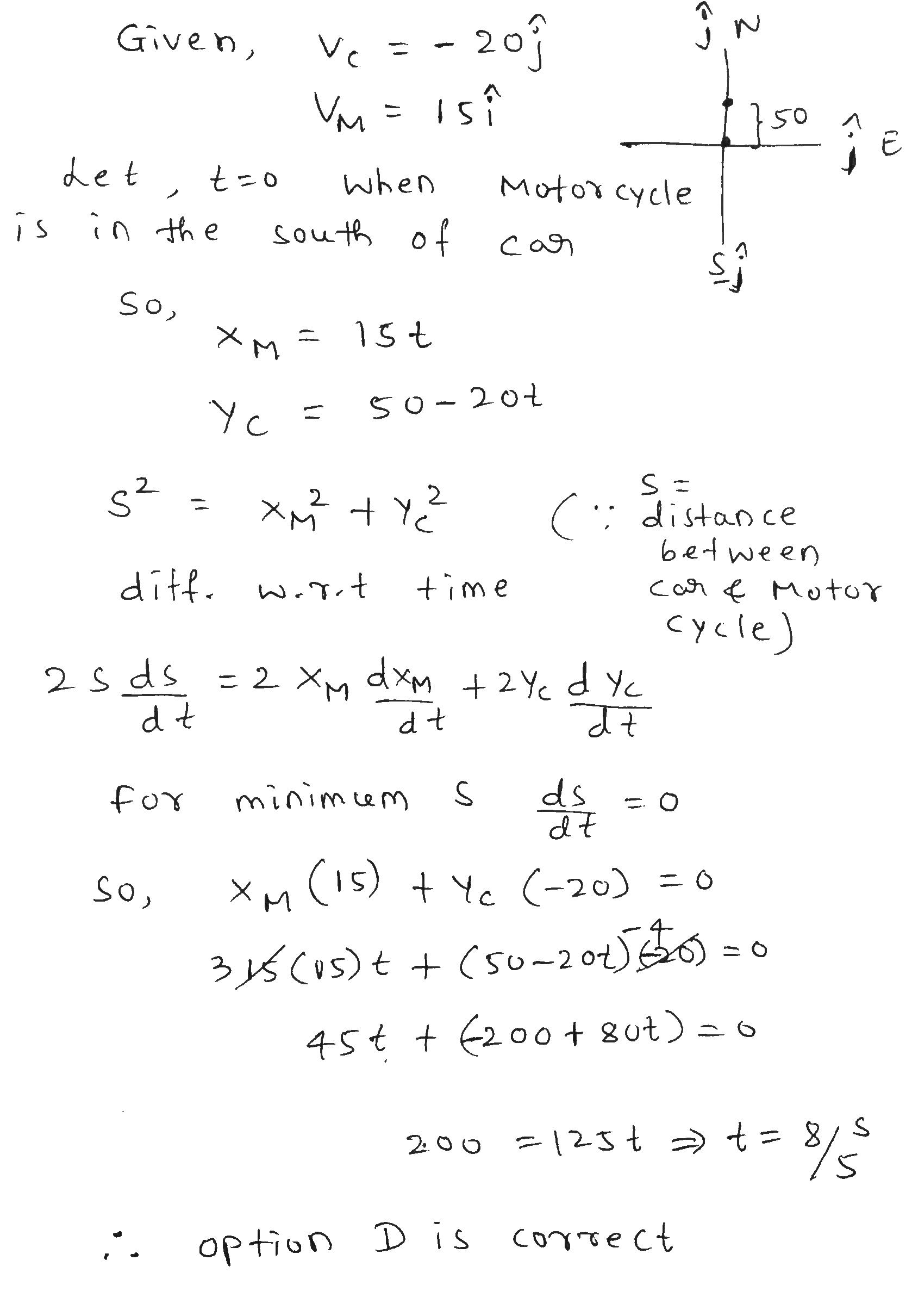

    A car is moving towards south with a speed of $$20ms^{-1}$$. A motorcyclist is moving towards east with a speed of $$15ms^{-1}.$$ At a certain instant, the motorcyclist is due south of the car and is at a distance of 50 m from the car.

    ...view full instructions

    The time after which they are closet to each other
    Solution

  • Question 4
    1 / -0
    An iron sphere of mass $$10\ kg$$ has the same diameter as an aluminium sphere of mass is $$3.5\ kg$$. Both spheres are dropped simultaneously from a tower. When they are $$10\ m$$ above the ground, the have the same
    Solution
    $$(a)$$ acceleration
    Explanation: Momentum, potential energy and kinetic energy depend on the mass of the object; as well as on some other factors. But acceleration, in this case, is the acceleration due to gravity; which does not depend on mass or velocity. So, option (a) is correct.
  • Question 5
    1 / -0
    The speed-time graph of a body is straight line parallel to time axis. The body has:
    Solution
    If the speed-time graph is parallel to the time axis, then this means that the body has the same speed at all the time.
    Thus, speed $$=$$ constant
    Hence the body has uniform speed and thus option B is correct.

  • Question 6
    1 / -0
    A stone is dropped from the top of the tower . Its speed after it has fallen $$ 20\,m $$ is
     (Take $$ g = 10\, ms^{-2} $$ )
    Solution
    Here ,

     $$ {\text{u}} $$  = Initial velocity = $$0$$
     $$ {\text{v}} $$ = Final velocity
     $$ {\text{s}} $$ = Distance travelled  = $$ 20\,m $$
     $$ {\text{a}} $$ = acceleration = g = $$ 10 \, ms^{-2} $$

    Now , we know that from the equation of motion that ,

     $$ {\text{v}}^2 = {\text{u}}^2 + 2as $$

     $$ {\text{v}} = \sqrt{{\text{u}}^2 + 2as} $$

     $$ {\text{v}} = \sqrt{ 0 + 2 \times 10 \times 20} $$

     $$ {\text{v}} = \sqrt{400} \, ms^{-1} $$

     $$ {\text{v}} = 20 \, ms^{-1} $$
  • Question 7
    1 / -0
    Starting from rest at the top of an inclined plane a body reaches the bottom of the inclined plane in 4 second. In what time dies the body cover one-fourth the distance starting from rest at the top?
    Solution
    Let $$s$$ be the total distance and $$a$$ be the acceleration

    Now, we know that initially, the body is at rest
    Now, from the equations of motion, we get

    $$s=ut+\cfrac{1}{2}a{t}^{2}.....(1)$$

    $$s=\cfrac { 1 }{ 2 } a\times {4}^{2}....(2)$$

    To find the time taken for covering $$\cfrac{s}{4}$$, we put $$s=\cfrac{s}{4}$$ in equation (1)

    So, $$\cfrac{s}{4}=\cfrac{1}{2}a\times {t}^{2}....(3)$$

    Now dividing equation $$2$$ by $$3$$, we get
    $$t=2s$$
  • Question 8
    1 / -0
    A book lying on a table is an example of
    Solution
    A book lying on a table is an example of a body at rest.
  • Question 9
    1 / -0
    A body falls from rest in the gravitational field of the earth. The distance travelled in the fifth second of its motion is $$ (g = 10\, m/s^2) $$
    Solution
    Since the initial velocity is $$0$$ ,the distance in $$n^{th}$$ second is given by :
    $$ h_n = \dfrac{g}{2} (2n - 1) \, \Rightarrow h_{5^{th}} = \dfrac{10}{2} (2 \times 5 - 1) = 45 m $$
  • Question 10
    1 / -0
    The variation of velocity of a particle with time moving along a straight line is shown in the figure. The distance traveled by the particle in $$4\ s$$ is :

    Solution
    $$Distance$$   =  $$Area\ under\ v-t\ graph$$ $$ = A_1 + A_2 + A_3 + A_4 $$
    $$ = \dfrac{1}{2} \times 1 \times 20 + (20 \times 1) + \dfrac{1}{2} (20 + 10) \times 1 + (10 \times 1) $$
    $$ = 10 + 20 + 15 + 10 = 55 m $$
