Question 1
1 / -0

A gun of mass $$M$$, frees a shell of mass $$m$$ horizontally and the energy of explosion is such as would be sufficient to project the shell vertically to a height '$$h$$'. The recoil velocity of the gun is:

A
$$\left(\dfrac{2m^2gh}{M(m + M)}\right)^{\dfrac{1}{2}}$$

B
$$\left(\dfrac{2m^2gh}{M(m - M)}\right)^{\dfrac{1}{2}}$$

C
$$\left(\dfrac{2m^2gh}{2M(m - M)}\right)^{\dfrac{1}{2}}$$

D
$$\left(\dfrac{2m^2gh}{2M(m + M)}\right)^{\dfrac{1}{2}}$$

Solution

Applying linear momentum conservation,
$$p_i=p_f$$
$$\Rightarrow 0=mV_g=mV_b$$
$$\Rightarrow V_b=\dfrac{mV_g}{m}$$......(1)
According to question, total explosion energy is equal to $$mgh$$
$$\Rightarrow \dfrac{1}{2}mV_g^2+\dfrac{1}{2}mV_b^2=mgh$$
$$mv_g^2+m\left(\dfrac{M}{m}\right)^2V62g=2mgh$$ ( By (1))
$$v_g^2\left(M+\dfrac{M^2}{m}\right)=2mgh$$
$$v_g^2=2mgh\times \dfrac{m}{m(m+M)}$$
$$v_g=\sqrt{\dfrac{2m^2gh}{M(m+M)}}$$ (A)
Question 2
1 / -0

The ratio of the radii of gyration of a hollow sphere and a solid sphere of the same masses and radii about an axis passing through their centre is

A
$$\sqrt{2/3}$$

B
$$\sqrt{2/5}$$

C
$$\sqrt{5/3}$$

D
$$\sqrt{5/2}$$

Solution

The radius of gyration of a solid sphere is $$\sqrt{2/5}$$ and that of a hollow sphere is $$\sqrt{2/3}$$. Dividing one by the other, we get, the ratio = $$\sqrt{5/3}$$
Question 3
1 / -0

A constant torque is applied to a rigid body, whose moment of inertia is $$4 kg-m^2$$ around the axis of rotation. If the wheel starts from rest and attains an angular velocity of 20 rad/s in 10 s, what is the applied torque

A
$$18 N-m$$

B
$$8 N-m$$

C
$$4 N-m$$

D
$$6 N-m$$

Solution

Torque = $$I \alpha=4(20-0)/10=8 N-m$$

The correct option is (b)
Question 4
1 / -0

A ring of mass m and radius r rolls on an inclined plane. A torque is produced in the ring due to

A
$$mg sin \theta$$ and the radius of the ring

B
the perpendicular distance between the force and the point of contact and the force $$mg$$ acting on it

C
the perpendicular distance between the force and the point of contact and the normal force acting on the object

D
the perpendicular distance between the force and the point of contact and the force $$mg sin \theta$$ acting on it

Solution

Torque is determined using the formula
$$r\times F=rF\sin\theta$$
Here $$r\sin\theta$$ stands for perpendicular distance between the force and the point of contact as shown in figure
Question 5
1 / -0

Three objects of same mass but different geometries, capable of rotating have radius of gyration as 0.2, 0.5 and 0.7. A torque is applied to these objects when they are rotating with constant angular velocity. Which object will have a larger response time for showing the change in their angular velocity

A
Object with a radius of gyration of 0.7 will take a long time to respond to the torque

B
Object with a radius of gyration of 0.5 will take a long time to respond to the torque

C
Object with a radius of gyration of 0.2 will take a long time to respond to the torque

D
All objects with have same response time

Solution

The property of moment of inertia I is a measure of rotational inertia of the body. Larger the moment of inertia, larger the object resists to the sudden increase or decrease of the speed. It allows a gradual change in the speed and prevents jerky motions.
Question 6
1 / -0

Statement related to center of gravity that is incorrect is

A
The center of gravity of an object is defined as the point through which its whole weight appears to act.

B
The center of gravity is sometimes confused with the center of mass.

C
The center of gravity always lies inside the object.

D
For an object placed in a uniform gravitational field, the center of gravity coincides with the center of mass.

Solution

In case of a ring, the centre of gravity lies at the centre of the ring. Hence option c is the incorrect option
Question 7
1 / -0

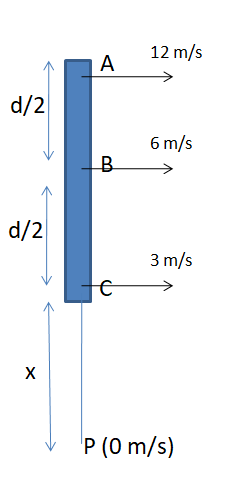

In the image shown . AC is a rigid rod of length 12 cms rotating about point P, whose velocities are shown in the figure. Find the distance PC = x

A
12 cms

B
8 cms

C
4 cms

D
2 cms

Solution

Since the rod is rotating about the point P, the angular velocities of all the points are same.

Thus, the linear velocities of point C and A are related to the angular velocity $$\omega $$ as $$x \omega=3$$ and $$(d+x)\omega$$=12.

Solving both the equations, we get $$x=4cm$$
Question 8
1 / -0

Which of the below statement is correct

A
All points in an object move in a straight line in rectilinear motion, while moves in a curved path when rotated about a fixed point

B
All points in an object move with the same linear speed when rotated about a fixed point

C
All points in an object move in a straight line, while the object moves in a curved path pivoted about a fixed point

D
All points in an object moves in a curved path, while the object is moving along a straight line

Solution

In a rectilinear motion, all points in an object move in a straight line
In a circular motion, all points moved in a curved path, if the object is pivoted about a point
Question 9
1 / -0

A jar filled with two non mixing liquids $$1$$ and $$2$$ having densities $$\rho_{1}$$ and $$\rho_{2}$$ respectively. A solid ball, made of a material of density $$\rho_{3}$$, is dropped in the jar. It comes to equilibrium in the position shown in the figure

A
$$\rho_{3} < \rho_{1} < \rho_{2}$$

B
$$\rho_{1} < \rho_{3} < \rho_{2}$$

C
$$\rho_{1} < \rho_{2} < \rho_{3}$$

D
$$\rho_{3} < \rho_{2} < \rho_{1}$$

Solution

Basic principal of density is that higher density material settle down and lower density floats. So here we can see that
$$\rho_1<\rho_3<\rho_2$$
$$\rho_3$$ density of solid base
$$\rho_1 \&\rho_2$$ density of liquids
Question 10
1 / -0

A wheel having moment of inertia $$4\ kg\ {m}^{2}$$ about its symmetrical axis, rotates at rate of $$240$$ rpm about it. The torque which can stop the rotation of the wheel in one minute is:

A
$$\dfrac {5\pi}{7}Nm$$

B
$$\dfrac {8\pi}{15}Nm$$

C
$$\dfrac {2\pi}{9}Nm$$

D
$$\dfrac {3\pi}{7}Nm$$

Solution

$$\alpha =\dfrac{240\times 2\pi}{60\times (60)}$$
$$\alpha =\dfrac{8\pi}{60}$$
now $$T=I\alpha$$
$$=4\times \dfrac{8\pi}{60}$$
$$=\dfrac{8\pi}{15}$$
