Question 1
1 / -0

The escape velocity for a planet is $$v_e$$. A particle starts from rest at a large distance from the planet, reaches the planet only under gravitational attraction, and passes through a smooth tunnel through its centre. Its speed at the centre of the planet will be

A
$$v_a$$

B
$$1.5 v_e$$

C
$$\sqrt{1.5} v_e$$

D
$$2 v_e$$

Solution

Within the earth's body the gravitational potential at distance $$r$$ from the center is given as $$V=2\pi G\rho(r^2-3R^2)/3$$.
where $$\rho$$ is the density of earth, $$R$$ is the earth's radius.
At the center of earth, $$r=0$$.
So the potential is $$V_c=-2\pi G\rho\times3R^2/3=-3GM/2R$$.
where $$M=\rho\times4\pi R^3/3$$
At very large distance, potential $$V_i=0$$
So gain in kinetic energy = change in potential energy.
$$\Rightarrow mv^2/2=0-(-3GM/2R)=3GM/2R=1.5GM/R\Rightarrow v=\sqrt{1.5}v_e$$
where $$v_e=\sqrt{GM/R}$$ is the escape velocity.
Question 2
1 / -0

Find the height at which the weight will be same as at the same depth from the surface of the earth.

A
$$\displaystyle \frac{R}{2}$$

B
$$\sqrt{5} R - R$$

C
$$\displaystyle \frac{\sqrt{5} R - R}{2}$$

D
$$\displaystyle \frac{\sqrt{3}R - R}{2}$$

Solution

Let the height and depth be 'd'
$$\Rightarrow \quad \dfrac { g }{ { \left( 1+\dfrac { d }{ R } \right) }^{ 2 } } =g\left( 1-\dfrac { d }{ R } \right) $$
$$\Rightarrow { \left( 1+\dfrac { d }{ R } \right) }^{ 2 }\left( 1-\dfrac { d }{ R } \right) =1$$
$$\Rightarrow { \left( 1+\dfrac { { d }^{ 2 } }{ { R }^{ 2 } } +\dfrac { 2d }{ R } \right) }\left( 1-\dfrac { d }{ R } \right) =1\\ \Rightarrow { \left( \dfrac { d }{ R } \right) }^{ 3 }+{ \left( \dfrac { d }{ R } \right) }^{ 2 }-{ \left( \dfrac { d }{ R } \right) }=0\\ \Rightarrow \quad d=\dfrac { \sqrt { 5 } R-R }{ 2 } $$
Question 3
1 / -0

Use the assumptions of the previous question. An object weighed by a spring balance at the equator gives the same reading as a reading taken at a depth d below the earth's surface at a pole $$(d << R)$$. The value of $$d$$ is

A
$$\displaystyle \dfrac{\omega^2 R^2}{ge}$$

B
$$\displaystyle \dfrac{\omega^2 R^2}{2g}$$

C
$$\displaystyle \dfrac{2\omega^2 R^2}{g}$$

D
$$\displaystyle \dfrac{\sqrt{Rg}}{\omega}$$

Solution

Let $$g_e$$ be the acceleration due to gravity on surface of earth, $$g'$$ be the acceleration due to gravity at depth d below the surface of earth and is given by
$$g' = g_e \left(1 - \dfrac{d}{R} \right)$$ ................................(1)
The acceleration due to gravity of an object on below the surface of earth is
$$g' = g_e - \omega^2 R \cos \phi$$
where, $$\phi$$ is the solid angle at the center of earth sustained by the object.
At the equator, $$\phi = 0^\circ$$
$$\therefore \cos \phi = 1$$
Hence,
$$g' = g_e - \omega^2 R$$ ....................................(2)
From (1) and (2), we can write,
$$ g_e \left(1 - \dfrac{d}{R} \right) = g_e - \omega^2 R$$
$$ \Rightarrow \dfrac{dg_e}{R} = \omega^2 R$$
$$ \Rightarrow d = \dfrac{\omega^2 R}{g_e}$$
Question 4
1 / -0

The value of acceleration due to gravity at height $$h$$ from earth surface will become half its value on the surface if (R $$=$$ radius of earth)

A
$$h = R$$

B
$$h = 2R$$

C
$$h = (\sqrt{2} - 1)R$$

D
$$h = (\sqrt{2} + 1)R$$

Solution

The gravitational force acting on mass m on the surface of Earth is
$$F = \dfrac{GMm}{R^2}$$

$$mg = \dfrac{GMm}{R^2}$$

$$g = \dfrac{GM}{R^2}$$

$$gR^2 = GM$$.............$$(1)$$
where, $$g$$ is acceleration due to gravity, $$G$$ is gravitational constant, $$M$$ is mass of Earth and R is radius of Earth.
Now, value of g at height h is
$$g = \dfrac{GM}{(R+h)^2}$$

As per the problem,
$$\dfrac{g}{2} = \dfrac{GM}{(R+h)^2}$$

$$g(R+h)^2 = 2 gR^2$$................from $$(1)$$
$$(R+h)^2 = 2 R^2$$
Taking roots from both sides, we get
$$R+h = \sqrt 2 R$$
$$\therefore h = \sqrt 2 R - R$$
$$\therefore h = (\sqrt 2 - 1)R$$
Question 5
1 / -0

Consider a planet moving in an elliptical orbit round the sun. The work done on the planet by the gravitational force of the sun

A
is zero in any small part of the orbit.

B
is zero in some parts of the orbit.

C
is zero in one complete revolution.

D
is zero in no part of the motion.

Solution

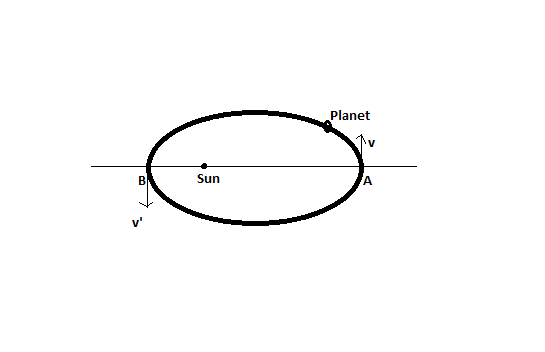

The work done is zero at points A and B, since the force acts along the AB axis and the motion is perpendicular to it($$W=|F||S| \cos \theta$$)
Question 6
1 / -0

The gravitational potential difference between the surface of a planet and a point $$20 m$$ above the surface is $$2 Joule/Kg$$. If the gravitational field is uniform then the work done in carrying a $$5 Kg$$ body to a height of $$4 m$$ above the surface is

A
$$2 Joule$$

B
$$20 Joule$$

C
$$40 Joule$$

D
$$10 Joule$$

Solution

since it is given that gravitational field is uniform
gradient of potential$$=\dfrac { Potential\ diff. }{ Dist.\ between\ points }=\dfrac { 2 }{ 20 } =0.1\ J/Kg s$$
Total work done $$=mass\times distance\times pot.\ gradient=5\times 4\times 0.1=2\ Joule$$
Question 7
1 / -0

The magnitude of the potential energy per unit mass of an object at the surface of the earth is given $$U$$. Then, the escape velocity for the object is given by

A
$$v_e = 2U$$

B
$$v_e = \sqrt{U}$$

C
$$v_e = \sqrt{2U}$$

D
$$v_e = (2U)^2$$

Solution

Potential energy of unit mass of body at earth surface U = $$\dfrac{-GM(1)}{R} = \dfrac{-GM}{R}$$
escape velocity $$v_e = (\dfrac{2GM}{R})^{0.5} = (2U)^{0.5}$$
Question 8
1 / -0

The value of G for two bodies in vacuum is $$6.67 \times 10^{-11} N-m^2/Kg^2$$. Its value in a dense medium of density $$10^{10} gm/cm^3$$ will be:

A
$$6.67 \times 10^{-11} N-m^2 /Kg$$

B
$$6.67 \times 10^{-31} N-m^2 /Kg$$

C
$$6.67 \times 10^{-21} N-m^2 /Kg$$

D
$$6.67 \times 10^{-10} N-m^2 /Kg$$

Solution

G is a Universal Gravitational constant and is same every where in the universe. Thus,
G $$ = 6.67 \times 10^{-11} N.m^{2}.kg^{-2}$$
Question 9
1 / -0

The potential energy of a rocket of mass $$100\ kg$$ at height $$10^7\ m$$ from earth surface is $$4 \times 10^9\ Joule$$. The weight of the rocket at height $$10^9$$ will be

A
$$4 \times 10^{-2} N$$

B
$$4 \times 10^{-3} N$$

C
$$8 \times 10^{-2} N$$

D
$$8 \times 10^{-3} N$$

Solution

Distance $$R = r + h = 0.64 \times 10^{7} + 10^{7} = 1.64 \times 10^7 m$$
Now$$,\ U = \dfrac{GMm}{R} = \dfrac{GM \times 100}{1.64 \times 10^7} = GM \times .609 \times 10^{-5}$$

But, given $$U = 4 \times 10^9 \Rightarrow GM \times 0.609 \times 10^{-5} = 4 \times 10^9$$
$$GM = 6.57 \times 10^{14}$$
now at height $$10^9 m$$, $$R = r+h = 100.64 \times 10^7$$
weight $$mg = \dfrac{GMm}{R^2} = \dfrac{6.57 \times 10^{14} }{(100.64 \times 10^7)^{2}} = 4 \times 10^{-2}$$ N.
Question 10
1 / -0

A tunnel is dug along a diameter of earth. The force on a particle of mass $$m$$ and distance $$x$$ from the centre in this tunnel will be :

A
$$\displaystyle \frac{GM_e m}{R^3 x}$$

B
$$\displaystyle \frac{GM_e mR^3}{x}$$

C
$$\displaystyle \frac{GM_e mx}{R^2}$$

D
$$\displaystyle \frac{GM_e mx}{R^3}$$

Solution

Field at a distance $$x$$ from the center will be equal to field at a distance $$R-x$$ from the earth's surface.

So
$$g_x=g(1-\displaystyle\frac{(R-x)}{R})=\frac{gx}{R}$$

or

$$F=\displaystyle\frac{mgx}{R}=\frac{mx}{R}\frac{GM_e}{R^2}=\frac{GM_e}{R^3}mx$$
