Question 1
1 / -0

A metal rod of Young's modulus $$Y$$ and coefficient of thermal expansion $$\alpha$$ is held at its two ends such that its length remains invariant. If its temperature is raised by $${t}^{o}C$$, the linear stress developed in it is:

A
$$1/\left( Y\alpha t \right) $$

B
$$\alpha t/Y$$

C
$$Y/\alpha t$$

D
$$Y\alpha T$$

Solution
Question 2
1 / -0

For which material the poisson's ratio is greater than 1

A
Steel

B
Copper

C
Aluminium

D
None of the above

Solution

Poisson's ratio can lie only between 0 to 1. It cannot be greater than 1 for any material

The correct option is (d)
Question 3
1 / -0

The maximum strain energy that can be stored in a body is known as:

A
impact energy

B
toughness

C
proof resilience

D
none of the above

Solution

Proof resilience is defined as the maximum energy that can be absorbed up to the elastic limit, without creating a permanent distortion.
Question 4
1 / -0

The proportional limit of steel is $$8\times { 10 }^{ 8 }N/{ m }^{ 2 }$$ and its Young's modulus is $$2\times { 10 }^{ 11 }N/{ m }^{ 2 }$$. The maximum elongation, a one metre long steel wire can be given without exceeding the proportional limit is

A
2 mm

B
4 mm

C
1 mm

D
8 mm

Solution

The correct option is B

Given,

Proportional limits of steel are $$8\times10^8N/m^2$$

Young's modulus is $$2\times10^{11}N/m^2$$

So, Stress up to which stress and strain are proportional.

So $$\dfrac{stress}{strain}=\dfrac{8\times10^8}{strain}$$

Since

$$ strain = \dfrac{stress}{modulus}$$

$$\Rightarrow strain=\dfrac{4\times10^8}{2\times10^{11}}$$

$$=4\times10^{-3}$$

Thus,

$$\dfrac{\Delta L}{L}=4\times10^{-3}$$ Where $$\Delta L$$ is stress

But, $$L=1m$$

So,

$$\Delta L=4\times10^{-3}m$$

$$=4mm$$
Question 5
1 / -0

A rubber ball is taken to depth $$1$$ km inside water so that its volume reduces by $$0.05\% $$.What is the bulk modulus of the rubber:

A
$$2 \times 10^{10} N/m^2$$

B
$$2 \times {10^{9\,}}\,N/{m^2}$$

C
$$2 \times 10^{7}N/m^2$$

D
$$2 \times {10^{11\,}}\,N/{m^2}$$

Solution

Pressure at $$1\ km$$ depth inside water,

$$P=1000\times 10\times 1000=10^7\ Nm^{_2}$$

say, V=volume of ball

$$\dfrac{0.05}{100}\times V$$ = Reduction in volume (i.e) $$\Delta V$$

Bulk Modulus, $$\beta=\dfrac{-PV}{\Delta V}=\dfrac{-10^7\times V}{\dfrac{-0.05V}{100}}$$

$$=2\times 10^{10}\ Nm^{-2}$$

Hence Option $$\textbf A $$ is correct.
Question 6
1 / -0

Select the correct alternative(s).

A
Elastic forces are always conservative

B
Elastic forces are not always conservative

C
Elastic forces are conservative only when Hooke's law is obeyed

D
Elastic forces may be conservative even when Hooke's law is not obeyed

Solution

Elastic forces are conservative because work done in closed path is always zero. Take a spring energy gets stored when we compress it and again becomes zero if we release the net work done in the cycle is zero.
Question 7
1 / -0

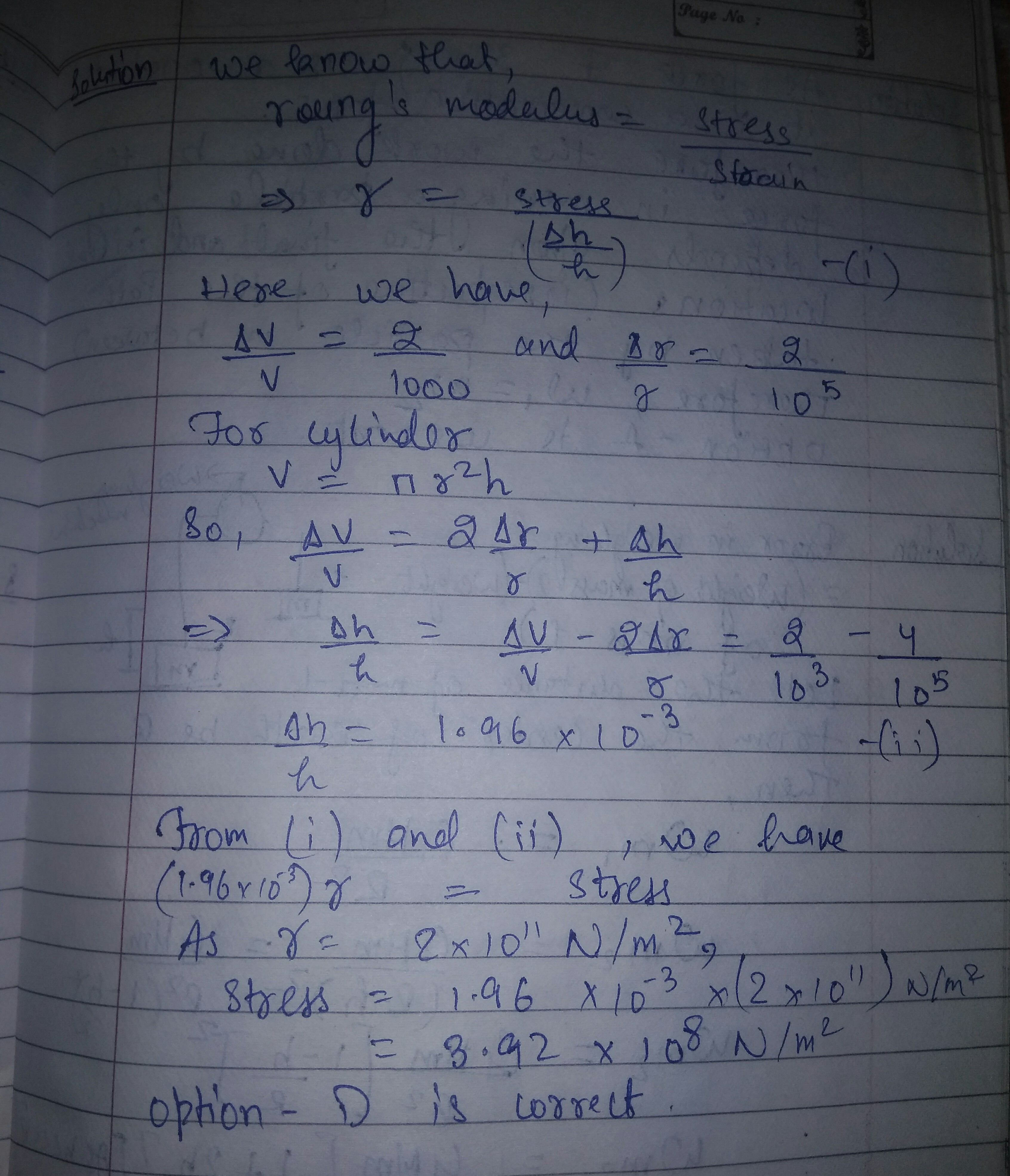

Overall changes in volume and radii of a uniform cylindrical steel sire are $$0.2\%$$ and $$0.002\%$$ respectively when subjected to some suitable force. Longitudinal tensile stress acting on the wire is :-
$$(Y=2.0\times 10^{11}\ NM^{-2})$$

A
$$3.2\times 10^{9}\ Nm^{-2}$$

B
$$3.2\times 10^{7}\ Nm^{-2}$$

C
$$3.6\times 10^{9}\ Nm^{-2}$$

D
$$3.9\times 10^{8}\ Nm^{-2}$$

Solution
Question 8
1 / -0

When the load on a wire is increasing slowly from $$2$$ kg to $$4$$ kg, the elongation increases from $$0.6$$ mm to $$1$$ mm. The work done during this extension of the wire is $$(g=10 m/s^2)$$.

A
$$14\times 10^{-3}$$J

B
$$0.4\times 10^{-3}$$J

C
$$8\times 10^{-2}$$J

D
$$10^{-3}$$J

Solution

$$W=(\dfrac{1}{2}F_2\times \Delta l_2)-(\dfrac{1}{2}F_1\times \Delta l_1)=20\times 10^{-3}=6\times 10^{-3}=14\times 10^{-3}$$J
Hence (A) is correct.
Question 9
1 / -0

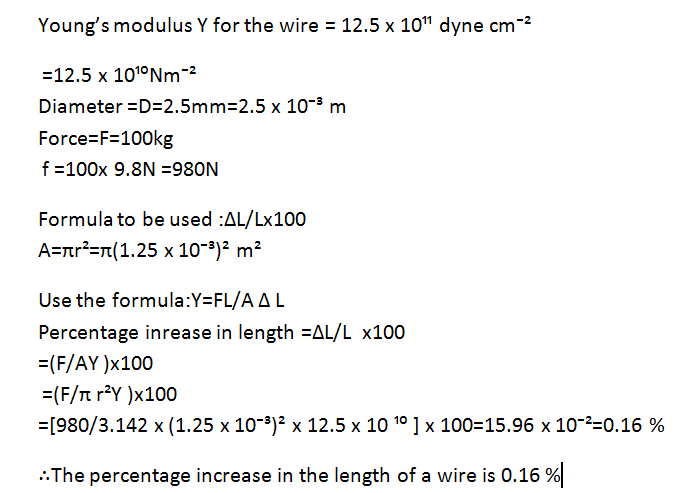

What is the percentage increase in length of a wire of diamater $$2.5\ mm$$, stretched by a force of $$100\ Kg\ wt$$? Youngs modulus of elasticity of wire $$=1.25 \times {10}^{11}\ dyne/{cm}^{2}$$

A
$$0.16\%$$

B
$$0.32\%$$

C
$$0.08\%$$

D
$$0.12\%$$

Solution
Question 10
1 / -0

A steel wire has length 2.0 m, radius 1 mm and $$Y = 2 \times 10^{11} N/m^2$$ A sphere of mass 1 kg is attached at one end of the wire which is then whirled in a vertical circle with speed 2 rev/sec. Elongation of the wire when mass is at the lowest position.

A
1.0 mm

B
2.0 mm

C
0.1 mm

D
0.01 mm

Solution

$$ \begin{array}{l} \text { Given, lure of length }=2 \mathrm{~m} \\ \text { radius }=1 \mathrm{~mm} \\ y=2 \times 10^{11} \mathrm{~N} / \mathrm{m}^{2} \\ \text { sphere of mass }=1 \mathrm{~kg} \\ \text { frequency }=2 \end{array} $$
$$ \begin{aligned} T-m g &=m \omega^{2} R \\ T=& m g+m \omega^{2} R \\ =& 10+16 \pi^{2}(2) \\ &=325 N \\ T=& Y A\left(\frac{\Delta L}{L}\right) \\ \frac{325 \times(2)}{2 \times 10^{11} \times \pi\left(10^{-6}\right)} &=\Delta L \\ \therefore & \Delta L=1 \mathrm{~mm} \end{aligned} $$
