Question 1
1 / -0

The Electrostatic Force between two charges is 4 N. If one charge has a value of 5 $$\mu$$C and is 2 cm from the second charge, find the new electrostatic force if the second charge is moved 2 cm further away from the first charge.

A
1 N

B
2 N

C
4 N

D
8 N

E
16 N

Solution

By Coulomb's law, $$F_1=\dfrac{kq_1q_2}{r^2}=4$$
In the second case, $$r=2r$$, so the force will be $$F_2=\dfrac{kq_1q_2}{(2r)^2}=F_1/4=4/4=1 N$$
Question 2
1 / -0

A charge $$\mathit{q}$$ of mass $$\mathit{m}$$ that is free to move is placed at the origin of a coordinate system.
A second identical charge, but of twice the mass, is placed at a distance $$d$$ along the positive $$x$$ axis from the origin.
Which of the following correctly describes the magnitude and direction of the force acting on the particle at the origin?

A
$$\mathit{\cfrac{2kq}{d^2}}$$, to the left

B
$$\mathit{\cfrac{2kq^2}{d^2}}$$, to the right

C
$$\mathit{\cfrac{2kq^2}{d^2}}$$, to the left

D
$$\mathit{\cfrac{kq^2}{d^2}}$$, to the right

E
$$\mathit{\cfrac{kq^2}{d^2}}$$, to the left

Solution

We know that the electric force $$F$$ between two charges$$q_{1} , q_{2}$$ separated by a distance $$r$$ is given by ,
$$F=kq_{1}q_{2}/r^{2}$$ ,
given that $$q_{1}=q , q_{2}=q , r=d$$ ,
therefore force between them is
$$F=kq\times q/d^{2}$$ ,
or $$F=kq^{2}/d^{2}$$ ,
this will be the force on the particle at origin , now as the two charges are positive therefore there is a repulsion force between them hence force on q at origin will be towards the left .
Question 3
1 / -0

The Electrostatic Force between two identical charges $$q_0$$ separated by a distance $$r_0$$ is $$F_0$$. The magnitudes of each charge and the separation distance are tripled. Find the new Electrostatic Force in terms of $$F_0$$.

A
$$\cfrac{1}{9}F_0$$

B
$$\cfrac{1}{3}F_0$$

C
$$F_0$$

D
$$3F_0$$

E
$$9F_0$$

Solution

Let the distance between the charges initially be $$r$$.
Thus initial electrostatic force $$F_o = \dfrac{kQ_1Q_2}{r^2}$$

New distance between the charges $$r'= 3r$$
Charge of each particle is tripled $$Q'_1 = 3Q_1$$ and $$Q_2' =3Q_2$$

$$\therefore$$ New electrostatic force $$F' = \dfrac{k(3Q_1)(3Q_2)}{(3r)^2} = F_o$$
Question 4
1 / -0

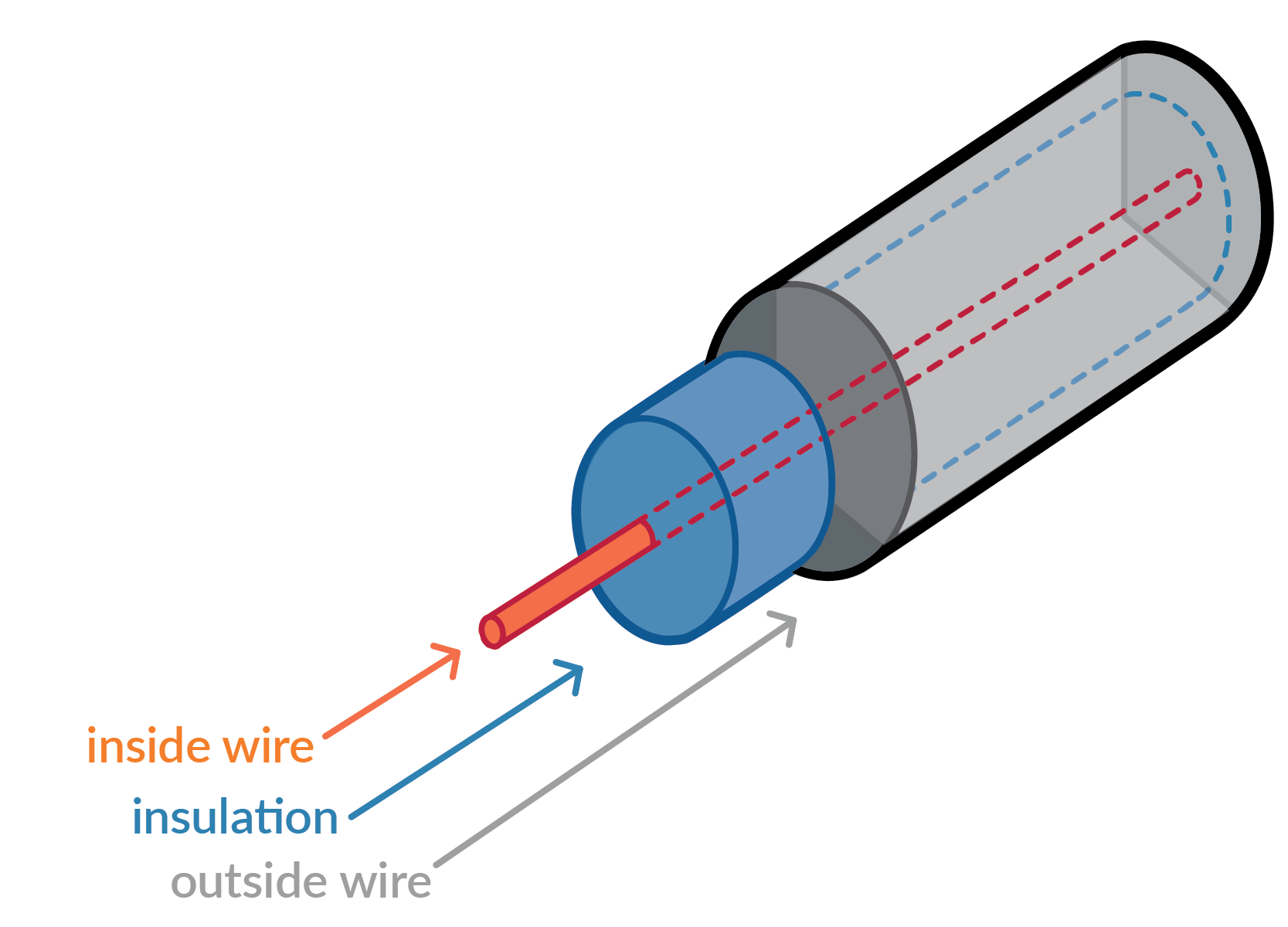

Coaxial cable (typically used for cable and satellite tv) has its signal run on a copper wire surrounded by an insulator which is surrounded by the ground wire, as opposed to the typical side by side configuration.
What is the most logical reason for this?

A
The energy held in the electric field between the inside wire and the outside allow for a clearer signal.

B
The outside wire prevents any magnetic field from the inside wire from leaking out of the wire.

C
The outside wire prevents electric fields from interfering with the signal in the inside wire.

D
The overall resistance of the wire is reduced using this configuration.

Solution

Coaxial Cable is type of electric cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. The energy held in the electric field between the inside wire and outside allow for a clearer signal.
Question 5
1 / -0

Compare how the magnitude of the electric field decreases with distance from a uniform charged sphere and a uniform charged wire.

A
Both decrease with a one over the square of the distance relationship.

B
From the sphere, the electric field decreases with a one over the distance relationship. From the wire, the electric field decreases with a one over the distance squared relationship.

C
Both decrease with a one over the distance relationship.

D
From the wire, the electric field decreases with a one over the distance relationship. From the sphere, the electric field decreases with a one over the distance squared relationship.

Solution

Electric field at a point due to uniform charged wire $$E_w = \dfrac{\lambda}{2\pi \epsilon_o r}$$ $$\implies E_w =\propto \dfrac{1}{r}$$
Thus electric field decreases with one over the distance relationship.

Electric field at a point due to uniform charged sphere $$E_s = \dfrac{Q}{4\pi \epsilon_o r^2}$$ $$\implies E_s= \propto \dfrac{1}{r^2}$$
Thus electric field decreases with one over the distance squared relationship.
Question 6
1 / -0

Two identical conducting spheres were situated so that they were insulated from their surroundings, and their centers were separated by a distance, d.
One sphere had a charge of $$+8$$ Coulombs; the other had a charge of $$-4$$ Coulombs.
The spheres were then brought together to touch each other. The spheres were separated and again insulated from their surroundings, and their centers were separated by a distance d.
How does the magnitude of the electrostatic force between the spheres in their final situation compare to the magnitude of electrostatic force between them in their original situation?

A
The magnitude of the final force is the same as the magnitude of the original force

B
The magnitude of the final force is half as much as the magnitude of the original force

C
The magnitude of the final force is twice as much as the magnitude of the original force

D
The magnitude of the final force is one-fourth as much as the magnitude of the original force

E
The magnitude of the final force is one-eighth as much as the magnitude of the original force

Solution

Before touch , the electrostatic force between two given identical spheres ,
$$F_{before}=k8\times4/d^{2}$$ ...............................eq1
net charge of spheres $$=+8-4=+4C$$
now as the spheres are identical therefore their capacitances will be same , we know charges on spheres after touch are given by ,
$$q_{1}'/q_{2}'=C_{1}/C_{2}=1$$ (because $$C_{1}=C_{2}$$)
or $$q_{1}=q_{2}$$
it means net charge will be divided equally on both he spheres i.e. $$q_{1}=q_{2}=4/2=2C$$
therefore after touch , the electrostatic force between two spheres ,
$$F_{afer}=k2\times2/d^{2}$$ ...............................eq2
dividing eq2 by eq1 ,
$$F_{after}/F_{before}=4/32=1/8$$
or $$F_{after}=1/8F_{before}$$
Question 7
1 / -0

A 1 C charge and a 8C charge experience a force of 180 N.
How far apart are the charges?

A
20 km

B
0.02 m

C
0.2 m

D
2 m

E
4 m

Solution

Given : $$Q_1 = 1$$ C $$Q_2 = 8$$ C $$F = 180$$ N
The electrostatic force between the charges $$F = \dfrac{kQ_1Q_2}{r^2}$$ where $$k =9\times 10^9$$
$$\therefore$$ $$180 = \dfrac{9\times 10^9 \times 1\times 8}{r^2}$$ $$\implies r =20,000$$ m $$ = 20$$ km
Question 8
1 / -0

If the distance between two unlike poles is doubled then the force of attraction between them becomes ______ times its original value.

A
$$0.25$$

B
$$0.5$$

C
$$0.125$$

D
$$2$$

Solution

Force between two charges at a distance r is
$$F=\cfrac{1}{4\pi {\epsilon}_0}\cfrac{q_1q_2}{r^2}$$
when r' = 2r
then
$$F'=\cfrac{1}{4\pi {\epsilon}_0}\cfrac{q_1q_2}{{r'}^2}$$
$$F'=\cfrac{1}{4\pi {\epsilon}_0}\cfrac{q_1q_2}{4r^2}$$
$$F'=\cfrac{1}{4}F \; i.e. \; 0.25F$$
Question 9
1 / -0

______ is that charge which repels an equal and similar charge with a force of $$9\times 10^{9}N$$, when placed in vacuum at a distance of $$1\ m$$ from it.

A
One coulomb

B
Two coulomb

C
Three coulomb

D
Four coulomb

Solution

we know that force is given by $$F=\dfrac{Q_1Q_2}{4\pi\epsilon_o R^2}$$

Now, here $$Q_1=Q_2=Q$$ and

$$R=1m $$ and $$F=9\times 10^9N$$

And, $$\dfrac{1}{4\pi\epsilon_o}=9\times 10^9$$

Hence from force equation-

$$\implies \dfrac{9\times 10^9\times Q^2}{1^2}=9\times 10^9$$

$$\implies Q^2=1$$

$$\implies Q=\pm1C$$

Hence charge is $$1\hspace{2mm}coulomb$$.

Answer-(A)
Question 10
1 / -0

Two point charges separated by a distance d repel each other with a force of $$10\ N$$. If the separation between them becomes $$d/2$$, the force of repulsion will be ______.

A
$$10\ N$$

B
$$30\ N$$

C
$$40\ N$$

D
$$5\ N$$

Solution

$$F=\dfrac{q_1q_2}{4\pi\epsilon_o d^2}=10N$$

Now when distance becomes $$\dfrac{d}{2}$$-

$$F'=\dfrac{q_1q_2}{4\pi\epsilon_o \left(\dfrac{d}{2}\right)^2}$$

$$\implies F'=\dfrac{4q_1q_2}{4\pi\epsilon_o d^2}=4F=4\times 10$$

$$\implies F'=40N$$

Answer-(C)
