  • Question 1
    1 / -0

    A charged water drop whose radius  is $$ 0.1\mu m$$ is in equilibrium in an electric field. If charge on it is equal to charge of an electron, then intensity of electric field will be $$(g = 10 { m }^{ -1 }$$)

  • Question 2
    1 / -0

    An electron and a proton are in a uniform electric field, the ratio of their accelerations will be

  • Question 3
    1 / -0

    The total flux associated with the given cube will be where $$'a'$$ is side of the cube:-
    $$\left(\dfrac{1}{\epsilon_0} = 4\pi \times 9 \times 10^{9}\  SI\  units\right)$$

  • Question 4
    1 / -0

    Identify the wrong statement in the following:
    Coulomb's law correctly describes the electric force that

  • Question 5
    1 / -0

    Equal charges  q are placed at the vertices A and B of an aquilateral triangle ABC of side a. The magnitude of electric field at the point C due to two charges is.

  • Question 6
    1 / -0

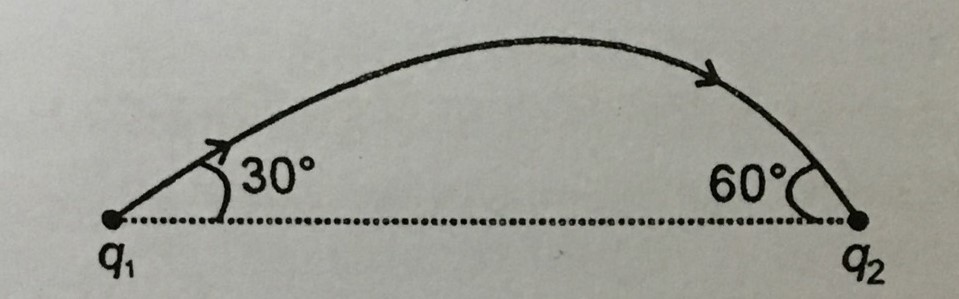

    Two point charges $$q _ { 1 } \text { and } q _ { 2 }$$ terminates at are kept as shown.
    One of the electric field line coming out from $$q _ { 1 }$$ makes an angle $$30 ^ { \circ }$$ with the line joining $$q _ { 1 } q _ { 2 }$$ terminates at $$q _ { 2 }$$ makes an angle $$60 ^ { \circ }$$.The ratio $$\frac { q _ { 1 } } { q _ { 2 } }$$ is

  • Question 7
    1 / -0

    A charge q is divided into two parts q $$\left(q-q\right)$$. If the coulomb repulsion between them when they are separated is to be maximum the ratio of $$q/q$$ should be:

  • Question 8
    1 / -0

    Two identical metal balls with charges $$+2Q$$ and $$-Q$$ are separated by some distance and exert a force $$F$$ on each other. They are joined by a conducting wire, which is then removed. The magnitude force between them will now be

  • Question 9
    1 / -0

    Six charges +Q each are placed at the corners of a regular hexagon of side (a), the electric field at the centre of hexagon is -

  • Question 10
    1 / -0

    Two positive ions, each carrying a charge $$q$$ , are separated by a distance $$d$$. If $$F$$ is the force of repulsion between the ions, the number of electronsmissing from each ion will be (e being the charge on an electron)
