  • Question 1
    1 / -0

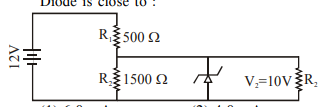

    In the given circuit the current through Zener Diode is close to :

    Solution
    From the given diagram,
    $${R_1} = 500\Omega $$
    $${R_2} = 1500\Omega $$
    $${V_2} = 10V$$
    As the resistors are in parallel, the potential difference across the $$1500\Omega $$ will also be 10 V.
    The potential difference across the $$500\Omega $$ will be
    $${V_1} = 12 - 10 = 2V$$
    According to ohm’s law,
    $$V = IR$$
    $$ \Rightarrow I = \dfrac{V}{R}$$
    Current across the $$500\Omega $$ is
    $$ \Rightarrow {I_1} = \dfrac{{{V_1}}}{{{R_1}}} = \dfrac{2}{{500}} = 4 \times {10^{ - 3}}A$$
    Current across the $$1500\Omega $$ is
    $$ \Rightarrow {I_2} = \dfrac{{{V_2}}}{{{R_2}}} = \dfrac{{10}}{{1500}} = 6.66 \times {10^{ - 3}}A$$
    From above calculations, $${I_1} < {I_2}$$ (Not possible case)
    So the potential difference across Zener diode will never reach to breakdown voltage.
    The current flows in the Zener diode only when the applied reverse voltage reaches breakdown voltage. Therefore, the current flowing through the Zener diode is 0 mA
    Hence, Option (D) is the correct answer

  • Question 2
    1 / -0
    Truth table for the given circuit will be

    Solution
     $$x$$$$y$$ $$\overline{x}$$ $$a=x.y$$  $$b=\overline{x}.y$$$$z=\overline{a.b}$$
     0 0 1 0 0 1
     0 1 1 0 1 1
     1 0 0 0 0 1
     1 1 0 1 0 1
  • Question 3
    1 / -0
    To get an output of 1. from the circuit shown in figure the input must be

    Solution
    To get final output as 1, the output of OR gate must be 1 and C must be 1.
    So, a = 1, b =0 or a=0, b=1.
  • Question 4
    1 / -0

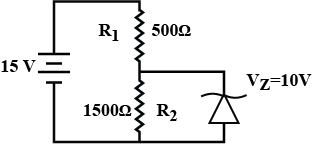

    In the given circuit, the current through zener diode is:

    Solution
    the current through 500 ohm resistor is 0.01 ampere as voltage across is 5V.
    the current through 1500 ohm resistor is 0.0067 ampere so the current through zener diode is difference in current through these resistors . so the current is $$ 0.01-0.0067=0.0033 $$ampere .
    On converting to mA we get
    Current through zener diode = 3.3 mA
    so the correct answer is B.
  • Question 5
    1 / -0
    Given : A and B are input terminals.
    Logic $$1= > 5V$$
    Logic $$0= < 1V$$
    Which logic gate operation, the following circuit does?

    Solution
    Since, when A and B both are logic 1 then no current will flow through the both  $$50\Omega$$
    resistors, because both the diodes will not conduct. therefore, whole current will flow through $$R=10K$$
    and output is potential difference across the $$R=10K$$ which will be $$6 V$$ in this case means high
    Now, When either of the input is low current through terminal which is low will flow through it and most of the current will flow through the $$50\Omega$$ resistance since it is very very less than $$R=10K$$ therefore, Potential across $$R=10K$$ will be less than $$1 V$$ . Hence, when either of input is low output is also low.
    When both the inputs are low same case as when either of input is low will be there hence output will also be low.
    Therefore, above circuit acts as a AND Logic gate.
  • Question 6
    1 / -0
    In an unbiased n-p junction electrons diffuse from n-region to p- region because
    Solution
    In p-type materials holes are majority carriers and electrons are majority carriers in n-type materials. When the two types of semiconductor materials are joined together, the electrons from the n-type material diffuse into p-type material and combines with holes as their concentration is higher in n-type layer. This creates a layer of negative ions near the junction in p-type material. Negative ions are formed because the trivalent impurities (e.g., Aluminum) now has an extra electron from the n-type material. Similarly, the holes from the p-type material diffuse into n-type material resulting in a layer of positive ions in the n-type material.
    These negative ions creates an electric field in the direction from n-type to p-type. As more electrons diffuse into p-type material, the electric field strength goes on increasing. The electrons from n-type material now diffusing into p-type material will have to overcome the electric field due to negative ions. At one point, the electric field becomes sufficiently strong to stop further diffusion of electrons.

  • Question 7
    1 / -0
    To get an output $$Y=1$$ in given circuit which of the following input will be correct.

    Solution
    Here the logic gates used are OR gate, AND gate. So, if we input values $$0$$ and $$1$$ to the OR gate, the output will be $$1$$. This output along with another input $$1$$ will be used as input for the AND gate. Thus, the final output is $$1$$.

  • Question 8
    1 / -0

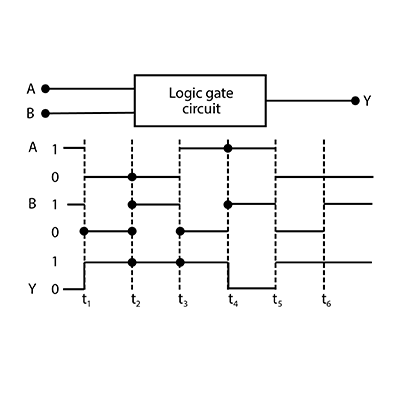

    Two following figure shows a logic gate circuit with two inputs A and B and the output Y. The voltage wave forms of A, B and Y are as given.
    The logic gate is

    Solution
    It is clear from given logic circuit, that output Y is low when both the inputs are high, otherwise it is high. Thus, logic circuit is NAND gate.
    ABY
    1   10
    001
    01   1
    101
  • Question 9
    1 / -0

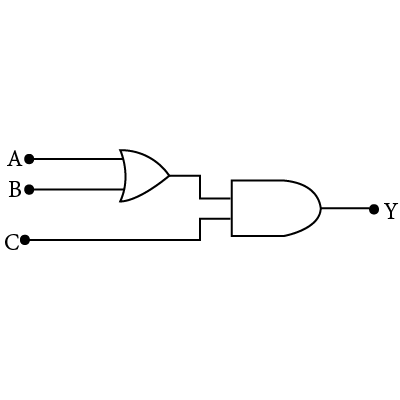

    To get output $$1$$ for the following circuit, the correct choice for the input is.

    Solution
    From left side the first gate is OR gate and next one is AND gate. So the out put of OR gate  is $$A+B$$ and the output of AND gate $$Y=(A+B).C$$
    We know that  for AND gate the put will be 1 if both inputs are 1. So, $$A+B =1 $$and $$C=1$$
    In logic gate , $$ 1+0=1$$ so $$A=1,  B=0 , C=1 $$ will be the correct choice for output 1.
  • Question 10
    1 / -0

    Which logic gate is represented by the following combination of logic gates?

    Solution
    A B Y
    0  0 0
    0  1  0
    1  0  0
    1   1   1
    AND gate.
