  • Question 1
    1 / -0
    Copper and Carbon wires are connected in series and the combined resistor is kept at $$\displaystyle { 0 }^{ \circ  }C$$. Assuming the combined resistance does not vary with temperature, the ratio of the resistances of Carbon and Copper wires at $$\displaystyle { 0 }^{ \circ  }C$$ is:
     (Temperature coefficients of resistivity of Copper and Carbon respectively are $$\displaystyle 4\times { { 10 }^{ -3 } }/{ ^{ \circ  }{ C } }$$ and $$\displaystyle -0.5\times { { 10 }^{ -3 } }/{ ^{ \circ  }{ C } }$$)
    Solution
    It is given that combined series resistance does not change with temperature.
    Thus, $$R_{Cu}+R_{C}=R_{Cu}(1+\alpha_{Cu}\Delta T)+R_C(1+\alpha_C\Delta T)$$
    for all values of $$\Delta T$$
    Thus, $$R_{Cu}\alpha_{Cu}=-R_{C}\alpha_{C}$$
    $$\implies \dfrac{R_C}{R_{Cu}}=-\dfrac{\alpha_{Cu}}{\alpha_C}$$
    $$=-\dfrac{4\times 10^{-3}}{-0.5\times 10^{-3}}=8$$
  • Question 2
    1 / -0

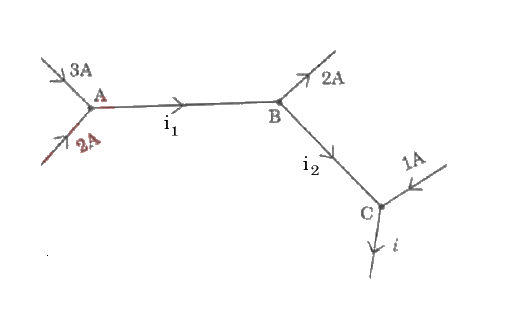

    The electric current $$i$$ in the circuit shown is:

    Solution
    Using Kirchhoff's junction law at A :        $$3 + 2  = i_1$$
    $$\implies i_1  = 5$$ A

    Using Kirchhoff's junction law at B :        $$ i_1   = 2 + i_2$$
    $$\therefore$$    $$ 5   = 2 + i_2$$    $$\implies i_2 = 3$$ A

    Using Kirchhoff's junction law at C :        $$ i_2    + 1  = i$$
    $$\therefore$$    $$ 3    + 1  =  i$$    $$\implies i = 4$$ A

  • Question 3
    1 / -0
    A group of $$N$$ cells whose emf varies directly with the internal resistance as per the equation $$\displaystyle { E }_{ N }=1.5{ r }_{ N }$$ are connected as shown in the figure above. The current $$I$$ in the circuit is:

    Solution
    Current, $$I=\dfrac{\Sigma E}{\Sigma r}$$

                      $$=\dfrac{1.5r_1+1.5r_2+........+1.5r_N}{r_1+r_2+......+r_N}$$

                      $$=1.5 \ A$$
  • Question 4
    1 / -0
    A potentiometer wire is $$100\ $$cm long and a constant potential difference is maintained across it. Two cells are connected in series first to support one another and then in opposite direction. The balance points are obtained at $$50$$ cm and $$10$$ cm from the positive end of the wire in the two cases. The ratio of emf's is:
    Solution
    If the emfs of the two cells are taken as $$E_1$$ and $$E_2$$ respectively.

    So, $$\dfrac{E_1+E_2}{E_1-E_2}=\dfrac{50}{10}$$

    or, $$\dfrac{2E_1}{2E_2}=\dfrac{50+10}{50-10}$$

    or, $$\dfrac{E_1}{E_2}=\dfrac{3}{2}$$
  • Question 5
    1 / -0
    The resistance across $$A$$ and $$B$$ in the given figure will be:

    Solution
    Given: $$R_1 = R_2 = R_3 = R$$

    The three resistances are connected in parallel between the points A and B.
    Equivalent resistance for parallel combination:
    $$\Rightarrow \dfrac{1}{R_{AB}}   =\dfrac{1}{R_1} + \dfrac{1}{R_2} + \dfrac{1}{R_3}$$

    $$\Rightarrow \dfrac{1}{R_{AB}}   =\dfrac{1}{R} + \dfrac{1}{R} + \dfrac{1}{R}    =  \dfrac{3}{R}$$

    $$\Rightarrow $$ $$R_{AB}  = \dfrac{R}{3}$$

  • Question 6
    1 / -0
    In shown diagram, if voltage of battery is doubled and resistance kept constant then what is the new Power dissipated at resistor(Consider $$P$$ was the initial power dissipation) ?

    Solution
    Power, $$P=\dfrac{V^2}{R}$$
    As R is kept constant so $$P \propto V^2$$
    $$P'$$is new power dissipation.
    So, $$\dfrac{P'}{P}=\dfrac{(2V)^2}{V^2}=\dfrac{4V^2}{V^2}$$ or $$P'=4P$$
    Thus, option E is correct.
  • Question 7
    1 / -0
    A potentiometer has uniform potential gradient. The specific resistance of the material of the potentiometer wire is $$\displaystyle { 10 }^{ -7 }$$ ohm-metre and the current passing through it is $$0.1$$ ampere, cross-section of the wire is $$\displaystyle { 10 }^{ -6 }{ m }^{ 2 }$$. The potential gradient along the potentiometer wire is:
    Solution
    Given : Resistivity      $$\rho = 10^{-7}  \Omega m$$
    Cross-section area       $$A  =10^{-6}  m^2$$
    Current in the wire     $$i = 0.1$$ A
    Resistance of the wire         $$R = \rho \dfrac{l}{A}$$

    Thus  resistance gradient      $$R'  =  \dfrac{R}{l}   =  \dfrac{\rho}{A}  = \dfrac{10^{-7}}{10^{-6}}  = 0.1$$

    $$\therefore$$ Potential gradient       $$V'= i R'    = 0.1 \times 0.1  = 10^{-2}$$ V/m
  • Question 8
    1 / -0
    If a third identical resistor is added in parallel in a circuit of two identical parallel resistors. Calculate the ratio of the new equivalent resistance to the old?
    Solution
    Let the resistance of each resistor be $$R$$.
    Equivalent resistance of two resistors in  parallel, $$\dfrac{1}{R_{eq}}  = \dfrac{1}{R} + \dfrac{1}{R}$$
    $$\implies R_{eq}  = \dfrac{R}{2}$$

    Equivalent resistance of three resstors in parallel, $$\dfrac{1}{R'_{eq}}  = \dfrac{1}{R} + \dfrac{1}{R}+ \dfrac{1}{R}$$
     $$\implies R'_{eq}  = \dfrac{R}{3}$$

    $$\therefore\  \dfrac{R'_{eq}}{R_{eq}}  = \dfrac{R/3}{R/2} = \dfrac{2}{3}$$
  • Question 9
    1 / -0
    Three resistor of $$10 \Omega$$, $$20 \Omega$$, and $$30 \Omega$$ are connected in parallel in a circuit. Calculate the equivalent resistance.
    Solution
    Given :     $$R_1 = 10\Omega$$                              $$R_2= 20\Omega$$                         $$R_3 = 30\Omega$$
    Equivalent resistance of parallel combination              $$\dfrac{1}{R_{eq}} =  \dfrac{1}{R_1} +\dfrac{1}{R_2} + \dfrac{1}{R_3}$$

     $$\therefore$$      $$\dfrac{1}{R_{eq}} =  \dfrac{1}{10} +\dfrac{1}{20} + \dfrac{1}{30}$$                    $$\implies R_{eq} = 5.45$$ $$\Omega$$
  • Question 10
    1 / -0
    This question relates to the DC circuit shown below.
    The values for current, voltage, and resistance in the circuit are graphed from point A through point G in the graphs directly below.
    Which of the graphs shows the voltage from point A to point G?

    Solution
    Here the current through entire circuit is constant and the resistance is increasing from A to G. So by Ohm's law,  the voltages throughout the circuit will decrease as the distance from point A increases. Thus, each increase in the resistance produces a corresponding decrease in voltage. So graph A will be the correct.
