Magnetism and Matter Test 28

Result

Magnetism and Matter Test 28

Score
-
out of -
Rank
-
out of -

TIME Taken - -

SHARING IS CARING

If our Website helped you a little, then kindly spread our voice using Social Networks. Spread our word to your readers, friends, teachers, students & all those close ones who deserve to know what you know now.

Weekly Quiz Competition

Question 1
1 / -0

The torque and magnetic potential energy of a magnetic dipole in most stable position in a uniform magnetic field($$\bar{B}$$) having magnetic moment ($$\bar{m}$$) will be.

A
$$-$$mB, zero

B
mB, zero

C
Zero, mB

D
Zero, $$-$$mB

Solution

Torque, $$\bar{\tau}=\vec{m}\times \vec{B}=mB\sin\theta$$
and magnetic potential energy $$U_m=\vec{m}\cdot \vec{B}=mB\cos \theta$$
at $$\theta =0^o$$ the dipole will be in most stable position
$$\tau =mB\sin\theta =mB\sin 0^o=0$$
and $$U_m=-mB\cos\theta =-mB\cos \theta^o=-mB$$
Question 2
1 / -0

If a magnetic material is having magnetic susceptibility $$(\chi)=-1$$, then the relative magnetic permeability $$(\mu_r)$$ and type of magnetic material is?

A
$$0$$, diamagnetic

B
$$2$$, ferromagnetic

C
$$1$$, paramagnetic

D
$$-1$$, diamagnetic

Solution

Here, $$\chi =-1$$
then $$\mu_r=1+\chi \Rightarrow \mu_r=1+(-1)=I-1=0$$
Since, magnetic susceptibility of given material is less than one. Hence, the given magnetic material is a diamagnetic material.
Question 3
1 / -0

Assertion : Substances which at room temperature retain their ferromagnetic property for a long period of time are called permanent magnets.
Reason : Permanent magnet can be made by placing a ferromagnetic rod in a solenoid and passing current through it.

A
If both assertion and reason are true and reason is the correct explanation of assertion.

B
If both assertion and reason are true and reason is not the correct explanation of assertion.

C
If assertion is true but reason is false.

D
If both assertion and reason are false.

Solution

To make a permanent magnet, place a ferromagnetic rod in a solenoid and pass a current through it. The magnetic field of the solenoid magnetises the rod.
Question 4
1 / -0

Assertion : At high temperature, a ferromagnet becomes a paramagnet.
Reason : The ferromagnetic property depends on temperature.

A
If both assertion and reason are true and reason is the correct explanation of assertion.

B
If both assertion and reason are true and reason is not the correct explanation of assertion.

C
If assertion is true but reason is false.

D
If both assertion and reason are false.

Solution

At enough high temperature, a ferromagnet become a paramagnet. The domain structure disintegrates with temperature.
Question 5
1 / -0

A ball of superconducting material is dipped in liquid nitrogen and placed near a bar magnet. In which direction will it move?

A
Away from bar magnet

B
Towards the bar magnet

C
Around the bar magnet

D
Remain constant

Solution

Since, superconducting material and liquid nitrogen both are diamagnetic in nature, the dipped ball of superconductor in liquid nitrogen also behaves as a diamagnetic material. When it is placed near a bar magnet it will be repelled.
Question 6
1 / -0

Two magnets of movement M and 2M are tied at an angle of $$60^0$$ to each other. What is the resultant magnetic moment of the combination?

A
$$\sqrt7M$$

B
$$\sqrt8M$$

C
$$\sqrt9M$$

D
$$\sqrt10M$$

Solution
Question 7
1 / -0

Short Answer Type Question.

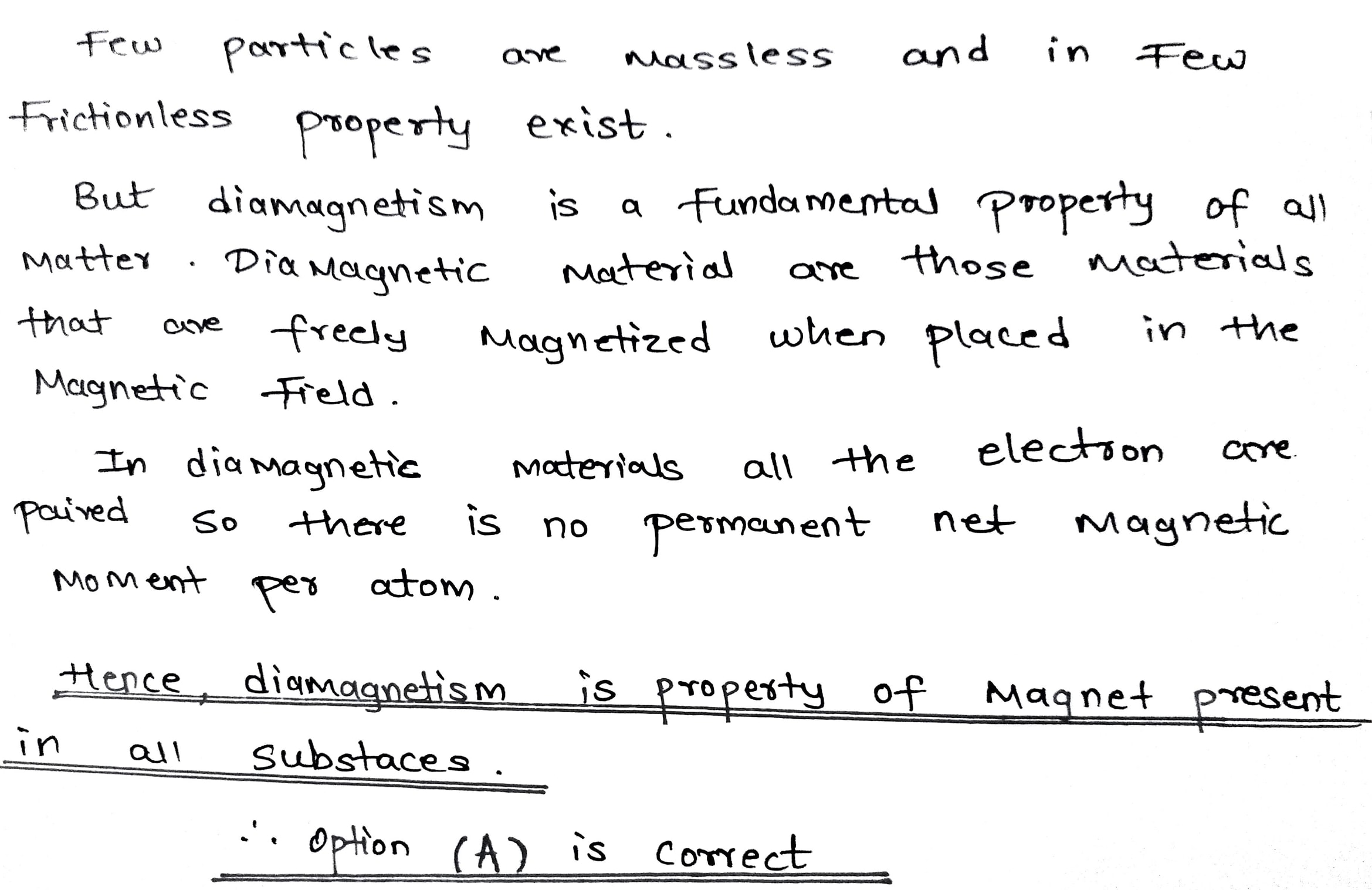

Which magnetic property is present in all substances?

A
Diamagnetism

B
massless

C
frictionless

D
no common property

Solution
Question 8
1 / -0

The magnetic field of earth at the equator is approximately $$4\times 10^{-5}\ T$$. The radius of earth is $$6.4\times 10^{6}\ m$$. Then the dipole moment of the earth will be near the order of

A
$$10^{23}\ A\ m^{2}$$

B
$$10^{20}\ A\ m^{2}$$

C
$$10^{16}\ A\ m^{2}$$

D
$$10^{10}\ A\ m^{2}$$

Solution

$$B=\cfrac {\mu_om}{4 \pi d^3}= \cfrac {4 \times 10^{-7}}{4 \pi (6.4 \times 10^6)^3}= \approx 10^{23} Am^2$$
Question 9
1 / -0

The coercivity of a small magnet where the ferromagnet gets demagnetized is $$3\times 10^{3}\ Am^{-1}$$. The current required to be passed in a solenoid of length $$10\ cm$$ and number of turns $$100$$, so that the magnet gets demagnetized when inside the solenoid, is:

A
$$3A$$

B
$$6A$$

C
$$30\ mA$$

D
$$60\ mA$$

Solution

Coercivity refers to the intensity of magnetic fields $$(B)$$ where the magnet gets demagnetised
For solenoid we have, $$B=\mu _{0}nI$$
($$\mu _{0}=$$ absolute permeability, $$n= $$ no. of turns per unit length, $$B=$$ Magnetic field in solenoid , I= current through each turn)
$$\Rightarrow \mu _{0}H= \mu _{0}nI$$ ($$H=$$ intensity of magnetic field)
$$\Rightarrow I=\dfrac{H}{n}$$
$$\Rightarrow I=\dfrac{3\times 10^{3}A/m}{\dfrac{100}{0.1 m}}=3A$$
So current needed to be passed through solenoid $$=3A$$
Question 10
1 / -0

Core of electromagnets are made of ferromagnetic materials which have.

A
Low permeability and low retentivity

B
High permeability and high retentivity

C
High permeability and low retentivity

D
Low permeability and high retentivity
Solution
Electromagnetic cores should have:
High permeability so that it supports the formation of a magnetic field within itself.
Low retentivity so that the magetic field so that it gets demagnetized easily.
And Ferromagnetic materials are used to make electromagnets cores
Because:-
Ferromagnetic materials have high permeability and low retentivity.
