Question 1
1 / -0

A thin glass (refractive index 1.5) lens has optical power of -5D in air.Its optical power in a liquid medium with refractive index 1.6 will be:

A
-1D

B
1 D

C
25 D

D
-25 D

Solution
Question 2
1 / -0

A thin Prism $$P_1$$ with angle $$4^o$$ and made from glass of refractive index 1.54 is combined with another thin prism $$P_2$$ made from glass of refractive index 1.72 to produce dispersion without deviation. The angle of Prism $$P_2$$ is

A
$$5.33^0$$

B
$$4^o$$

C
$$3^o$$

D
$$2.6^o$$

Solution
Question 3
1 / -0

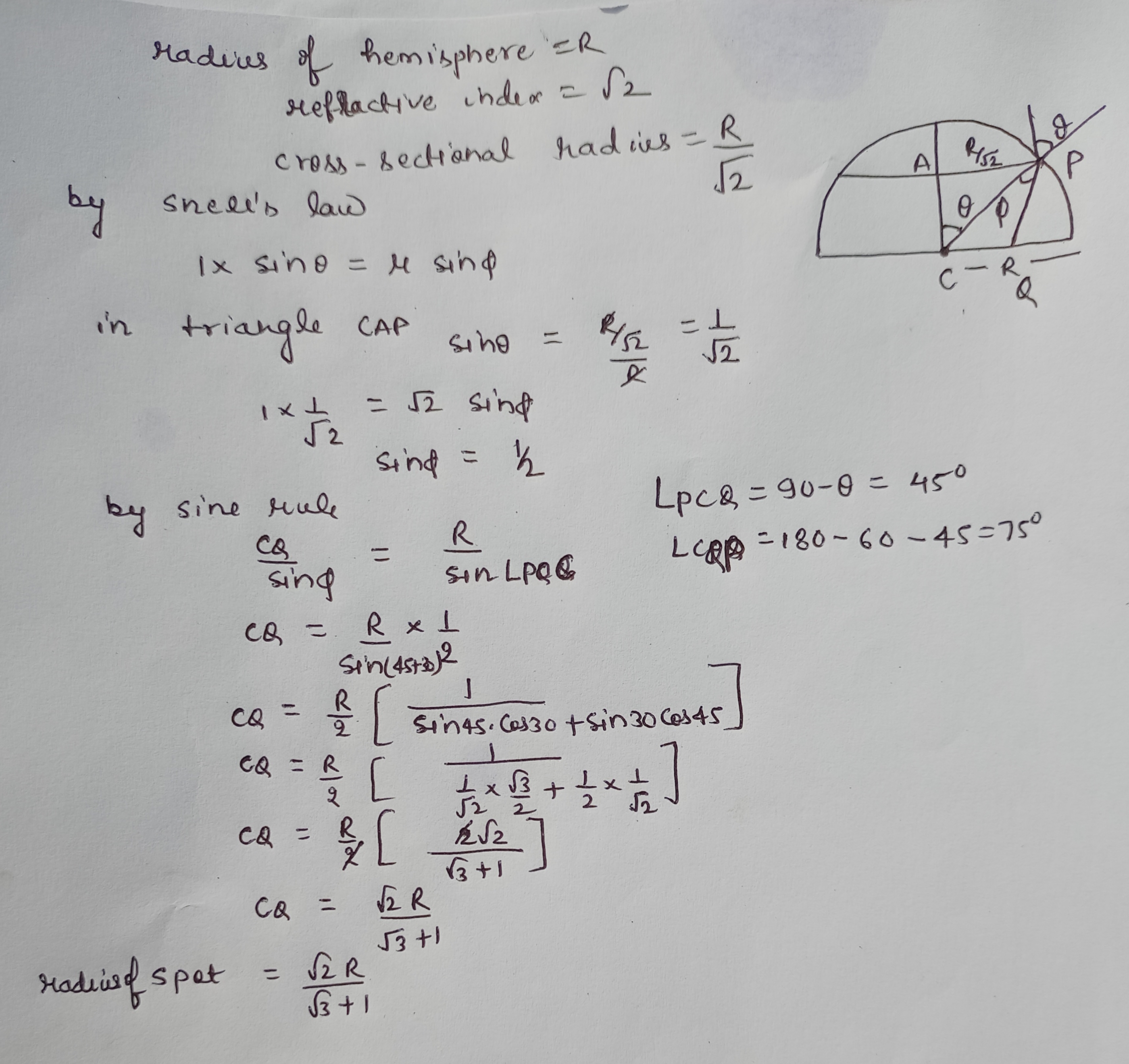

A beam of the light incident vertically on a glass hemisphere of radius R and refractive index $$\sqrt 2$$ lying with its plane side on a table .The axis of beam coincides with the vertical axis passing through the center of the base of the hemisphere and the cross sectional radius is $$\cfrac{R}{\sqrt2}$$ .The luminious spot form on the table is

A
R

B
$$\cfrac{R}{\sqrt 2}$$

C
$$\cfrac{\sqrt 2R}{\sqrt 3 + 1}$$

D
($$\sqrt 3 + 1 $$) R

Solution
Question 4
1 / -0

Inside a 6 cm thick glass slab a rectangular cavity is made as shown. On one face of slab a cross is marked. On other side an observes is looking i=on the slab. Find the shift of cross as seen by the man

A
$$\dfrac { 2 }{ 3 } cm$$

B
$$\dfrac { 4 }{ 3 } cm$$

C
$$\dfrac { 8 }{ 3 } cm$$

D
none of these

Solution

Shift produced-
$$S = \left( {1 - \dfrac{1}{\mu }} \right) \times \left( {l - d} \right)$$
$$l = 6{\text{ cm}}$$
$$d = 2{\text{ cm}}$$
$$\mu = \dfrac{3}{2}$$
So,
$$S = \left( {1 - \dfrac{2}{3}} \right) \times \left( {6 - 2} \right){\text{ cm}}$$
$$S = \left( {\dfrac{1}{3} \times 4} \right){\text{ cm}} = \dfrac{4}{3}{\text{ cm}}$$
Question 5
1 / -0

For path $$A \rightarrow B$$ optical path is

A
$$2(a + b)$$

B
$$2 (a - b)$$

C
$$a + b$$

D
$$a - b$$

Solution

$$AC = \dfrac{a}{\cos \, 60^o} ; CB = \dfrac{b}{\cos 30^o}$$
$$\sin 60^o = \mu \sin 30^o$$
$$\mu = \sqrt{3}$$
optical path $$= AC + \mu CB$$
$$= \dfrac{a}{cos 60^o} + \mu \dfrac{\beta}{cos \, 30^o} = 2a + \sqrt{3} \dfrac{6}{\dfrac{\sqrt{3}}{2}} = 2 (a + b)$$
Question 6
1 / -0

Light propagates $$2\ cm$$ distance in glass of refractive index $$1.5$$ in time $$t_0$$. In the same time $$t_0$$, light propagates a distance of $$2.25\ cm$$ in a medium. The refractive index of the medium is :

A
$$4/3$$

B
$$3/2$$

C
$$8/3$$

D
$$none\ of\ these$$

Solution

In medium-1 (refractive index $$n_1=1.5$$), light travels a distance $$2\ cm$$ in time $$t_0$$.
The speed of light in medium-1 is $$v_1 = \dfrac{2\times 10^{-2}\ m}{t_0\ sec}$$
In medium-2 (refractive index $$n_2$$), light travels a distance $$2.25\ cm$$ in time $$t_0$$.
The speed of light in medium-2 is $$v_2 = \dfrac{2.25\times 10^{-2}\ m}{t_0\ sec}$$
From the definition of refractive index, we can write,
$$\dfrac{n_1}{n_2}=\dfrac{v_2}{v_1}$$
$$\Rightarrow \dfrac{1.5}{n_2}= \dfrac{2.25\times 10^{-2}}{2\times 10^{-2}}$$
$$\Rightarrow n_2 = \dfrac{1.5\times 2\times 10^{-2}}{2\times 10^{-2}}= \dfrac{4}{3}$$
Question 7
1 / -0

Directions For Questions

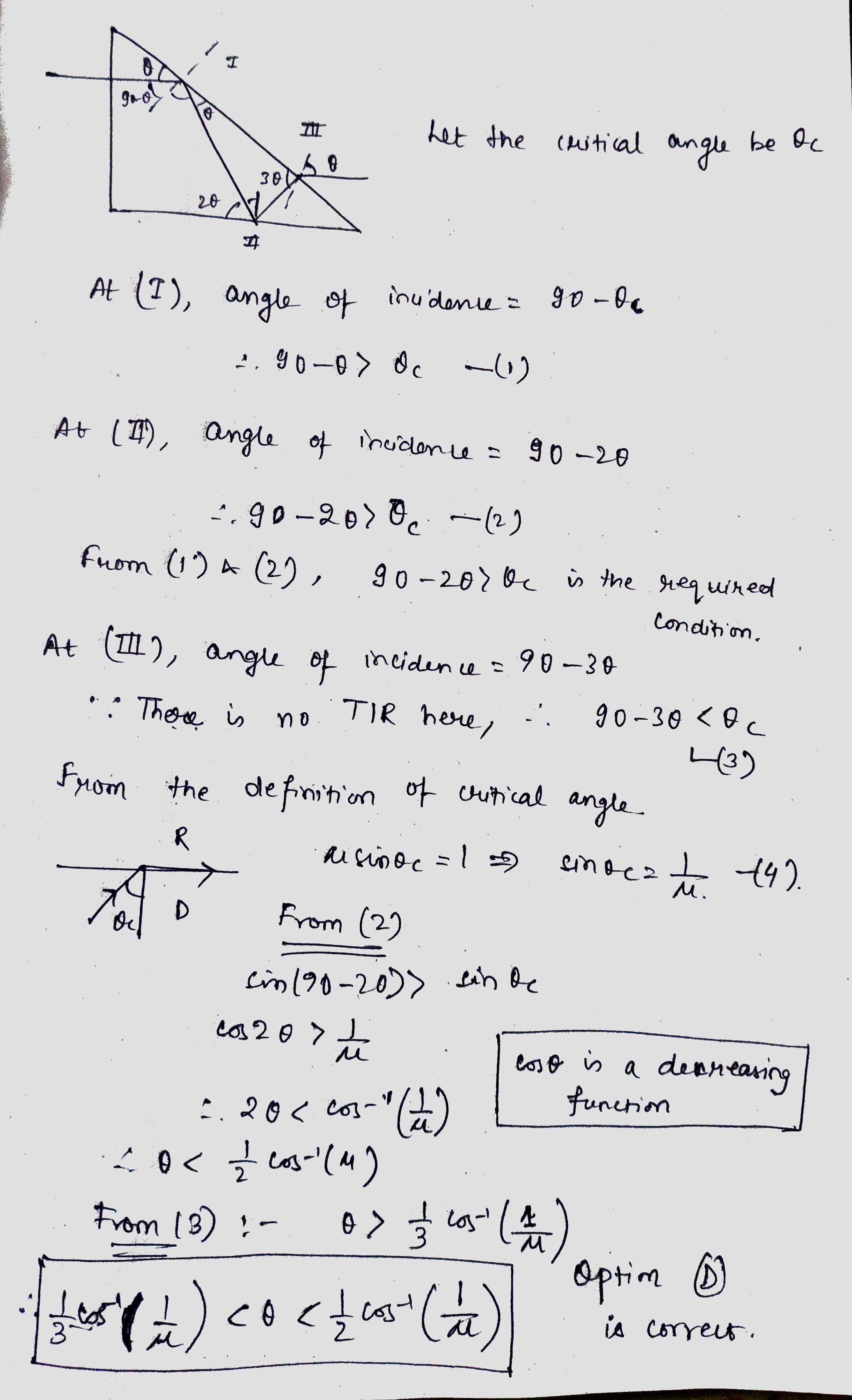

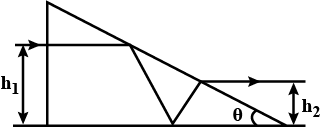

Consider the set up shown in the figure, which uses a right-angled prism to transmit a horizontal incident ray. This device is known as anamorphic de-magnifier. During its passage through the prism, the ray experience total internal reflection $$(TIR)$$ twice and then exits as shown in the figure. The prism in made from a glass of refractive index $$\mu$$.

...view full instructions

Range the values of tip angle $$\theta$$ for the advice to work as anamorphic de-magnifier is

A
$$\dfrac {1}{3}\cos^{-1}\left(\dfrac {1}{\mu}\right) < \theta < \dfrac {1}{2}\sin^{-1} \left(\dfrac {1}{\mu}\right)$$

B
$$\dfrac {1}{3}\sin^{-1}\left(\dfrac {1}{\mu}\right) < \theta < \dfrac {1}{2}\cos^{-1} \left(\dfrac {1}{\mu}\right)$$

C
$$\dfrac {1}{3}\sin^{-1}\left(\dfrac {1}{\mu}\right) < \theta < \dfrac {1}{2}\sin^{-1} \left(\dfrac {1}{\mu}\right)$$

D
$$\dfrac {1}{3}\cos^{-1}\left(\dfrac {1}{\mu}\right) < \theta < \dfrac {1}{2}\cos^{-1} \left(\dfrac {1}{\mu}\right)$$

Solution
Question 8
1 / -0

The refractive index of material of a prism of angles $$45^{\circ}, -45^{\circ}$$, and $$-90^{\circ}$$ is $$1.5$$. The path of the ray of light incident normally on the hypotenuse side is shown in

A

B

C

D
Question 9
1 / -0

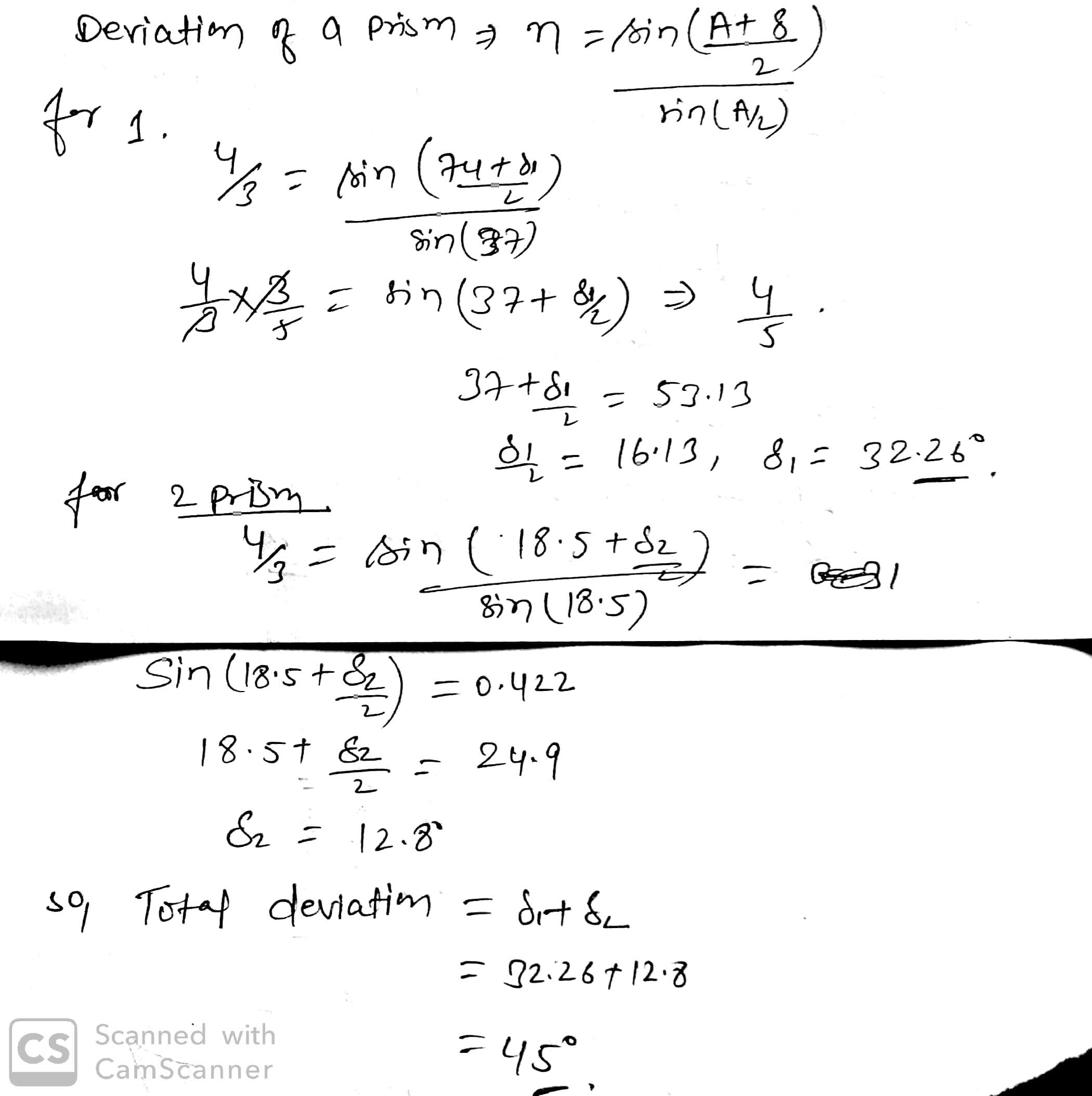

A light ray is incident ton face AB of prism ABC as shown in figure. The second prism is kept in such a manner that emergent ray from prism ABC is falling normally on face A'B' of prism A'B'C'. The net deviation produced by the optical' system of the two prisms is :

A
$$ 45^{\circ} $$

B
$$ 112^{\circ} $$

C
$$ 32^{\circ} $$

D
$$ 18^{\circ} $$

Solution
Question 10
1 / -0

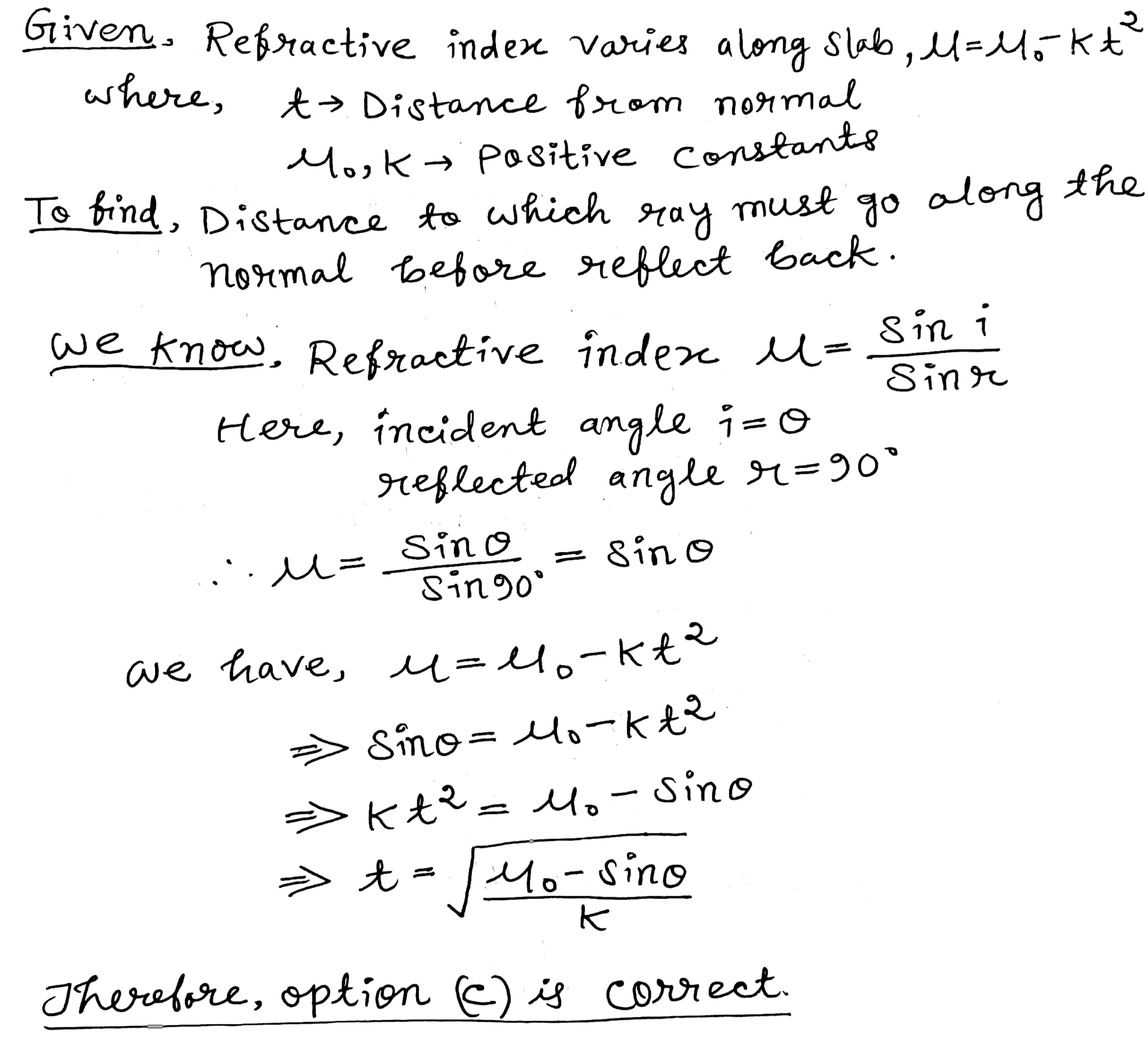

A ray enters a glass slab at an angle $$ \alpha $$ from air and the refractive index varies along the slab as $$ \mu = \mu_0 - kt^2 $$ where $$ t $$ is the distance measured along the normal . $$ \mu_0 $$ and $$ k $$ are positive constants . If the glass slab is sufficiently thick , how far along the normal will the ray go before it reflects back ?

A
$$ \dfrac{\mu_0 - sin\, \theta}{k} $$

B
$$ \dfrac{\mu_0 + sin\, \theta }{k} $$

C
$$ \sqrt{\dfrac{\mu_0 - sin\, \theta }{k}} $$

D
$$ \sqrt{\dfrac{\mu_0 + sin\, \theta }{k}} $$

Solution
