JEE Advanced Mix Test 11

4 gms of steam at 100°C is added to 20 gms of water at 46°C in a container of negligible mass. Assuming no heat is lost to surrounding, the mass of water in container at thermal equilibrium is. Latent heat of vaporisation = 540 cal/gm. Specific heat of water = 1 cal/gm-°C.

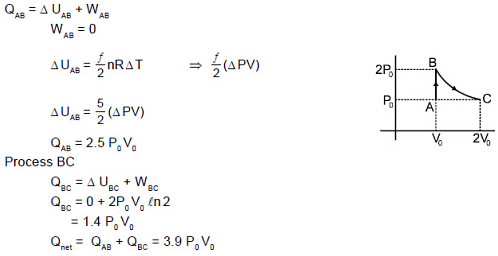

A diatomic ideal gas undergoes a thermodynamic change according to the P–V diagram shown in the figure. The total heat given to the gas is nearly (use ln2 = 0.7) :

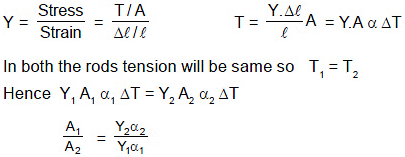

Two rods are joined between fixed supports as shown in the figure. Condition for no change in the lengths of individual rods with the increase of temperature will be ( α₁, α₂ = linear expansion co-efficient A₁, A₂ = Area of rods Y₁, Y₂ = Young modulus).

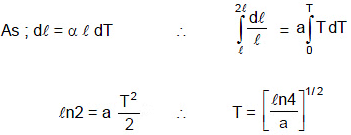

The co-efficient of thermal expansion of a rod is temperature dependent and is given by the formula α = a T, where a is a positive constant and T in ºC. If the length of the rod is l at temperature 0 ºC, then the temperature at which the length will be 2 l is:

A black body emits radiation at the rate P when its temperature is T. At this temperature the wavelength at which the radiation has maximum intensity is λ0. If at another temperature T' the power radiated is

Thermal coefficient of volume expansion at constant pressure for an ideal gas sample of n moles having pressure P₀, volume V₀ and temperature T₀ is

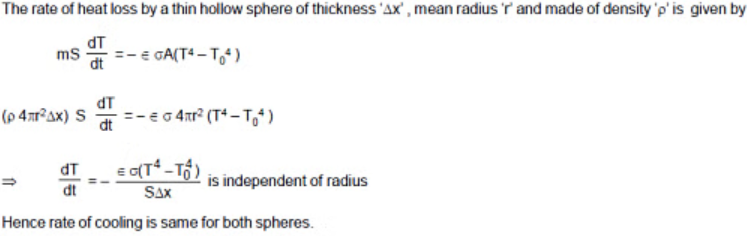

There are two thin spheres A and B of the same material and same thickness. They emit like black bodies. Radius of A is double that of B. A and B have same temperature T. When A and B are kept in a room of temperature T0 (< T), the ratio of their rates of cooling (rate of fall of temperature) is: [ assume negligible heat exchange between A and B ]

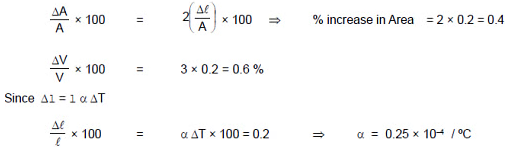

When the temperature of a copper coin is raised by 80 ^oC, its diameter increases by 0.2%,
