Physics Test 141

The root mean square velocity of hydrogen molecules at 300 K is 1930 metre/sec. Then the r.m.s velocity of oxygen molecules at 1200 K will be

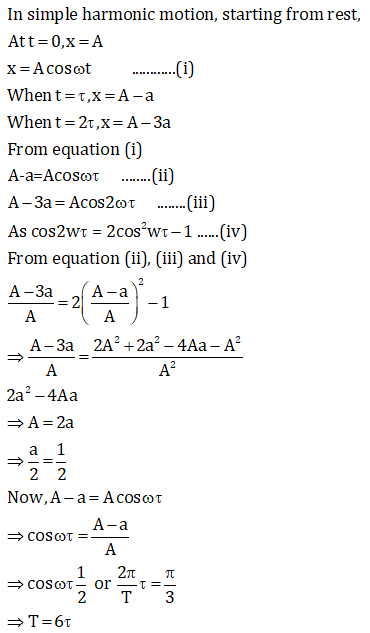

A particle moves with simple harmonic motion in a straight line. In first , after starting from rest it travels a distance a, and in next t s it travels 2a, in same direction, then:

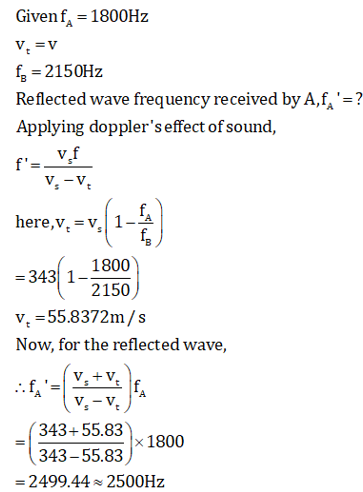

A source of sound A emitting waves of frequency 1800 Hz is falling towards ground with a terminal speed v. The observer B on the ground directly beneath the source receives waves of frequency 2150 Hz. The source A receives waves, reflected from ground of frequency nearly: (Speed of sound = 343 m/s)

A point Q lies on the perpendicular bisector of an electrical dipole of dipole moment p. If the distance of Q from the dipole is r (much larger than the size of the dipole), then the electric field at Q is proportional to

A parallel plate capacitor is made of two plates of length l, width w and separated by distance d. A dielectric slab (dielectric constant K) that fits exactly between the plates is held near the edge of the plates. It is pulled into the capacitor by a force  where U is the energy of the capacitor when dielectric is inside the capacitor up to distance x (See figure). If the charge on the capacitor is Q then the force on the dielectric when it is near the edge is:

A conducting wire of cross-sectional area  charge carriers per m³. If wire carries a current of 24 mA, then drift velocity of carriers is

A current loop ABCD is held fixed on the plane of the paper as shown in the figure. The arcs BC (radius = b) and DA (radius = a) of the loop are joined by two straight wires AB and CD. A steady current I is flowing in the loop. Angle made by AB and CD at the origin O is 30°. Another straight thin wire with steady current  flowing out of the plane of the paper is kept at the origin. The magnitude of the magnetic field (B) due to the loop ABCD at the origin (O) is:

A magnetic needle is kept in a non-uniform magnetic field. It experiences

A conducting wire frame is placed in a magnetic field which is directed into the paper. The magnetic field is increasing at a constant rate. The directions of induced current in wires AB and CD are
