Visualising Sol...

Which among the following is a tetrahedron?

Identify the top view of the given shape.

Which among the following is NOT a polyhedron?

If the numbers of vertices and edges of a shape are 16 and 18, respectively, then using Euler's formula, find out the number of faces of the shape.

Which among the following is the net of a triangular pyramid?

How many edges does the following shape have?

Which among the following is true for an octahedron?

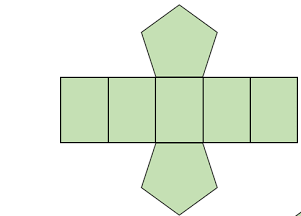

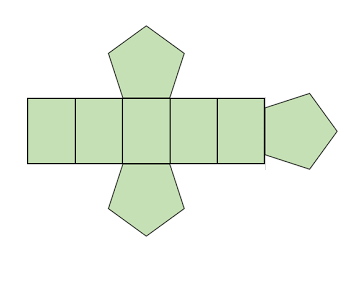

Which among the following is the net of a pentagonal prism?

The number of vertices in a rectangular pyramid is ________.

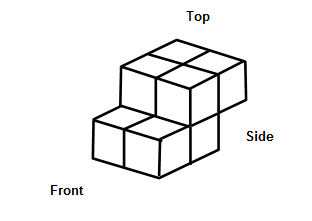

Identify the front view of the following object:

Which among the given options is the side view of the following shape?

Solid not having line segments as its edges is

If a polyhedron has 12 edges and 8 faces, then how many vertices does that polyhedron have?

There is a structure in Egypt in the shape of a square pyramid. How many vertices does that structure have?

Which among the following will form a polyhedron?

Using Euler's formula, find the values of M, N, O and P in the given table:

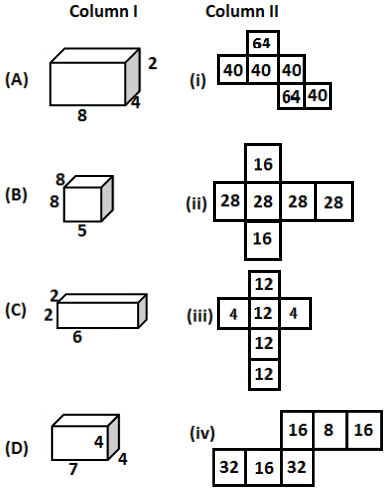

Match the shapes in Column I with their respective nets (not drawn to scale) in Column II:

Select the incorrect match from the following:

Fill in the blanks:

(1) All the sides of a cube are ___(A)___ to one another.

(2) A pentagonal pyramid has (B) faces.

(C) The net can be made to form a ___(C)___.
(D) A hexagonal pyramid has (D) vertices.

Mark 'T' for True and 'F' for False:

(1) Hexagonal Pyramid has 6 hexagons.
(2) The base and the top of a cylinder have different areas.
(3) A cylinder is a prism.
(4) If the numbers of faces and edges in a shape are 5 and 8, respectively, then the number of vertices is 5.
