CBSE Class 12 Maths Exam 2023 : Important Case Study Based Questions with Answer

CBSE Class 12 Maths Exam 2023 : Important Case Study Based Questions with Answer

The Central Board of Secondary Education is the largest and one of the most famed school boards in India, and lakhs of students are currently enrolled in it.

The CBSE conducts the Class 12 board exams annually. The next paper is arguably the most important for science and commerce stream students: Maths on 11 March. Maths is essential for non-medical science and commerce aspirants and is also required in subjects like physics, statistics and accounts.

CBSE Class 12 Maths requires extensive practice, especially important topics like Calculus and Algebra. There will be five sections in the 2023 CBSE Class 12 Maths exam, and the last section E will comprise two case study-based questions of 4 marks. These questions are quite important from the exam point of view, and you can check and practice the solved versions here.

CBSE Class 12 Maths Case Study Questions 2023

Question 1: Ramesh is elder brother of Suresh. Ramesh wants to help his younger brother Suresh to solve the following problems of integrals. Write the suitable substitution by which Ramesh can help him.Question 2: Mr Shashi, who is an architect, designs a building for a small company. The design of window on the ground floor is proposed to be different than other floors. The window  is in the shape of a rectangle which is surmounted by a semi-circular opening. This window is having a perimeter of 10 m as shown below :Based on the above information answer the following :

(i) If 2x and 2y represents the length and breadth of the rectangular portion of the windows, then the relation between the variables is:

(ii) The combined area (A) of the rectangular region and semi-circular region of the window expressed as a function of x is:

(iii) The maximum value of area A, of the whole window is

OR

The owner of this small company is interested in maximizing the area of the whole window so that maximum light input is possible.

For this to happen, the length of rectangular portion of the window should be

Answer:

(i) 4y = 10 - (2 + π)x

(ii) A = 10x - (2 + 12π)x²

(iii) 50/4 + π

OR

20/4 + π

Question 3: Read the following and answer the questions given below

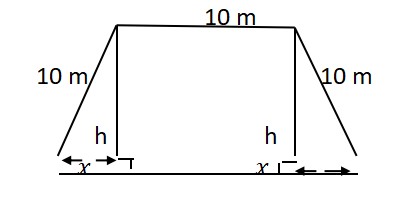

The front gate of a building is in the shape of a trapezium as shown below. Its three sides other than base are of 10 m each. The height of the gate is h meter. On the basis of below figure, answer the following questions:

(i)  Write the Area (A) of the gate in terms of   .

(ii) Write the value of  when Area (A)  is maximum.

(iii) Write the value of h when Area (A) is maximum .

OR

      Write the Maximum value of Area (A) .

Answer:

(i) (10 + x)√100 - x²

(ii) 5m

(iii) 5√3m OR 75√3/m.m2

Question 4: Read the following and answer the questions given below

Given three identical boxes 1^st, 2^nd and 3^rd each containing two coins. In 1^st box both coins are gold coins, in 2^nd box both are silver coins and in 3^rd box there is one gold and one silver coin. A person chooses a box at random and takes out a coin.

On the basis of above information, answer the following questions:

(i)  What is the probability of choosing 1^st box  ?

(ii)  What is the probability of getting gold coin from 3^rd box ?

(iii)  What is the total probability of drawing gold coin ?

OR

       If drawn coin is of gold the probability that other coin in the box is also of gold?

Answer:

(i) 1/3

(ii) 1/2

(iii) 1/2  Or  2/3

Question 5: Read the following and answer the questions given below

Sand is pouring from a pipe at the rate of 12 cm³/ second the falling sand forms a cone on the ground in such a way that the height of the cone is always 1/6^th of the radius of the base. Based on above information answer the following:

(i)  Write the expression for volume in terms of height only.

(ii)  What is the rate of Change of height, when height is 4 cm?

Answer:

i)  12πh³

(ii) 1/48 cm/s

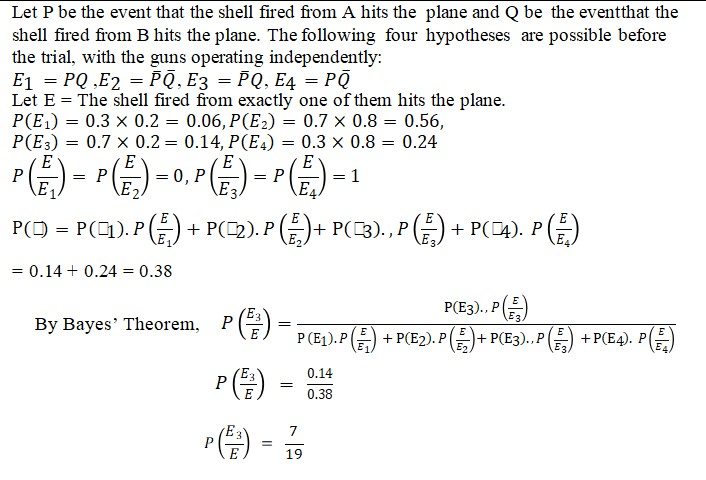

Question 6: There are two antiaircraft guns, named as A and B. The probabilities that the shell fired from them hits an airplane are 0.3 and 0.2 respectively. Both of them fired one shell at an airplane at the same time.

(i) What is the probability that the shell fired from exactly one of them hit the plane?

(ii) If it is known that the shell fired from exactly one of them hit the plane, then what is the probability that it was fired from B?

Answer:
