Weekly Quiz Competition

Question 1
1 / -0

for the cell reaction
$$Cu^{2+}(C_1aq)+Zn(s)=Zn^{2+}(C_2aq)+Cu(s)$$
of an electrochemical cell, the change in free energy at a given temperature is a function of

A
$$\ln (C_1)$$

B
$$\ln (C_2)$$

C
$$\ln(C_1+C_2)$$

D
$$\ln (C_2 /C_1)$$

Solution

Answer is option (D)
We know
$$ΔG=nFE$$
Again according to Nernst equation,
$$E=\dfrac{0.059}{n}$$ $$log \dfrac{[Zn^{2+} ]}{[Cu^{2+} ]}$$ $$ at $$25^o$$ C.

So $$ΔG$$ (free energy change) in an electrochemical cell at a given temperature is a function of
ln $$\dfrac{[Zn^{2+} ]}{ [Cu^{2+}]}$$ $$=ln\dfrac{C_2}{C_1}$$
Question 2
1 / -0

The main reason for not using a mercury electrolytic cell in NaOH manufacture is that

A
Hg is toxic

B
Hg is liquid

C
Hg has a high vapour pressure

D
Hg is a good conductor of electricity

Solution

The main reason for not using a mercury electrolytic cell in NaOH manufacture is because Hg is a good conductor of electricity.
Question 3
1 / -0

In which cell the free energy of a chemical reaction is directly converted into electricity

A
Lenclanche cell

B
Concentration cell

C
Fuel cell

D
Lead storage battery

Solution

In concentration cell the free energy of a chemical reaction is directly converted into electricity.
Correct answer is option (B)
Question 4
1 / -0

$$E^o_{Cell}$$ for some half-cell reactions are given below. On the basis of these mark the correct answers.

(a) $$H^- (aq) + e^- \rightarrow \frac{1}{2} H_2 (g); E^o_{Cell} = 1.23V$$

(b) $$2H_2O(l) \rightarrow O_2(g) + 4H^- (aq) + 4e^- ; E^o_{Cell} = 1.23V$$

(c) $$2SO^{2-}_4(aq) \rightarrow S_2O^{2-}_8(aq) + 2e^-; E^o_{Cell} = 1.96V$$

A
In dilute sulphuric acid solution, hydrogen will be reduced at cathode.

B
In concentrated sulphuric acid solution, water will be oxidised at anode.

C
In dilute sulphuric acid solution, water will be oxidised at anode.

D
In concentrated sulphuric acid solution, $$SO^{2-}_4$$ ion will be oxidized to tetrathionate ion at anode.

Solution

In the electrolysis of dil. H$$_2$$SO$$_4$$, above three reaction takes place. Oxidation half reaction occurs at anode, lower value of standard reduction potential will be preferred. At cathode hydrogen ion, will be converted into hydrogen.
Question 5
1 / -0

$$E_n = -\dfrac{313.6}{n^2}$$, if the value of $$E_i = -38.84$$ to which value 'n' corresponds?

A
2

B
4

C
1

D
3

Solution

Given :- $$E_n = \dfrac{-313.6}{n^2}$$
To calculate :- The value of n if the value of $$E_i = -38.84 kcal \ mol^{-1}$$
Sol :- $$E_i = -38.84$$

$$-38.84 = \dfrac{-313.6}{n^2}$$

$$n^2 = \dfrac{313.6}{38.84}$$

$$n^2 = 8$$

$$n = 2.82 \approx 3$$

So, the correct option is (D) 3
Question 6
1 / -0

Two electrolytic cells containing $$CuSO_{4}$$ and $$AgNO_{4}$$ respectively are connected in series and a current is passed through them unit 1 mg of copper is deposited in the first cell. The amount of silver deposited in the second cell during this time is approximately
[ Atomic weight of copper and silver are respectively 63.57 and 107.88]

A
$$1.7 mg$$

B
$$3.4 mg$$

C
$$5.1 mg$$

D
$$6.8 mg$$

Solution

$$ \dfrac{m_{1}}{m_{2}} = \dfrac{E_{1}}{E_{2}} $$ (By faraday law for same current and time)
Where $$ E_{1} $$ and $$ E_{2} $$ are the chemical equivalents and $$ m_{1} $$ and $$ m_{2} $$ are the masses of copper and silver respectively.
$$ E = \dfrac{Atomic\, weight}{Valency} E_{1} = \dfrac{63.57}{2} = 31 . 79 $$ and
$$ E_{2} = \dfrac{107.88}{1} =107 . 88 $$
$$ \therefore \dfrac{1mg}{m_{2}} = \dfrac{31.79}{107.88} \Rightarrow m_{2} = \dfrac{107.88}{31.79}mg = 3.4 mg $$
Question 7
1 / -0

Resistance of a voltameter is 2$$\Omega $$, it is connected in series to a battery of 10 V through a resistance of 3$$\Omega $$ . In a certain time mass deposited on cathode is 1 gm. Now the voltameter and the 3$$\Omega $$resistance are connected in parallel with the battery. Increase in the deposited mass on cathode in the same time will be

A
0

B
1.5 gm

C
2.5 gm

D
2 gm

Solution

Remember mass of the metal deposited on cathode depends on the current through the voltameter and not on the current supplied by the battery. Hence by using $$m =Zit$$, we can say $$\dfrac{m_{Parallel}}{m_{Series}}=\dfrac{i_{Parallel}}{i_{Series}}\Rightarrow m parallel = \dfrac{5}{2}\times 1=2.5 gm.$$
Question 8
1 / -0

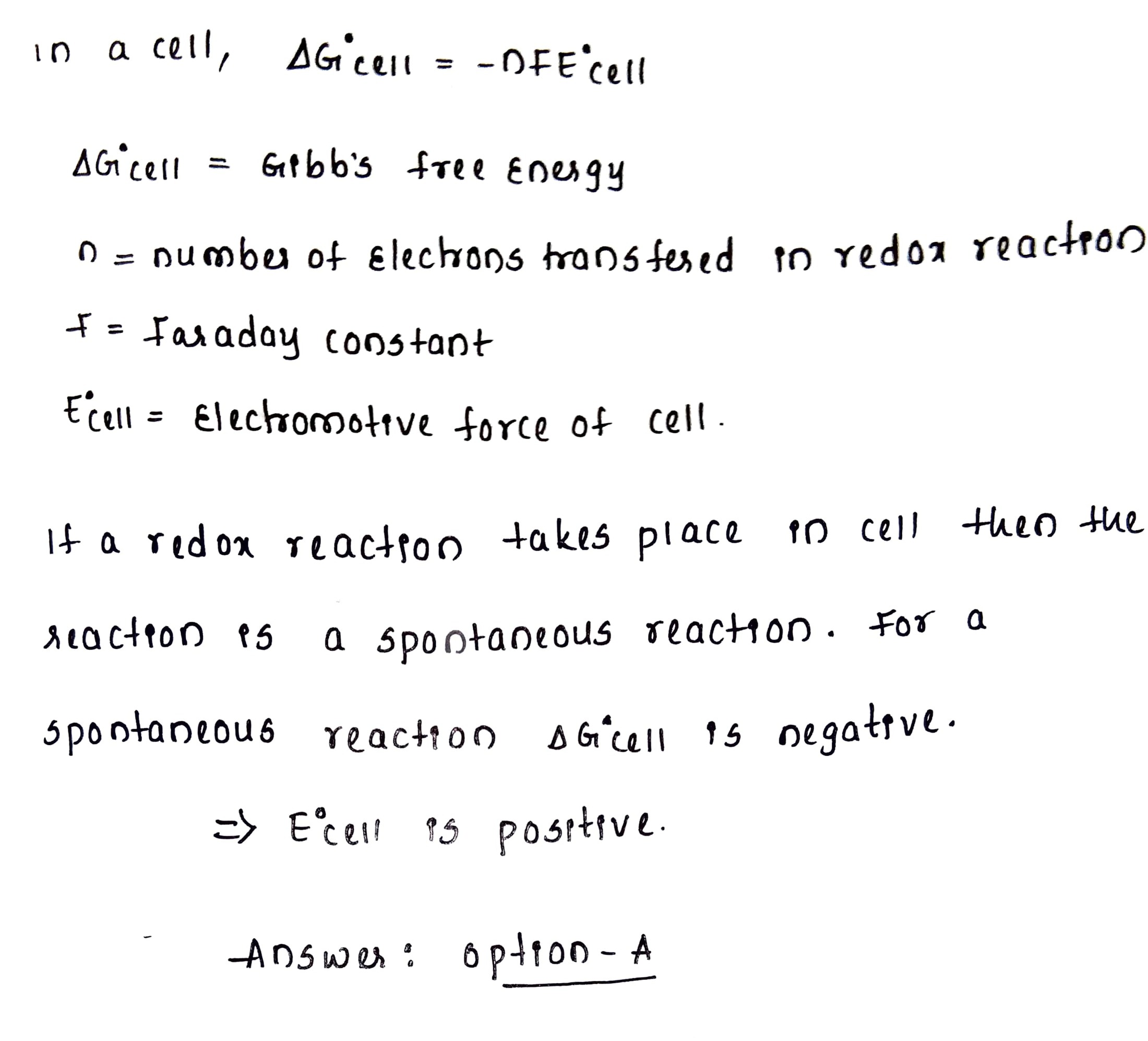

If redox reaction takes place in cell then electromotive force (e.m.f) of cell will be:

A
positive

B
negative

C
zero

D
one

Solution
Question 9
1 / -0

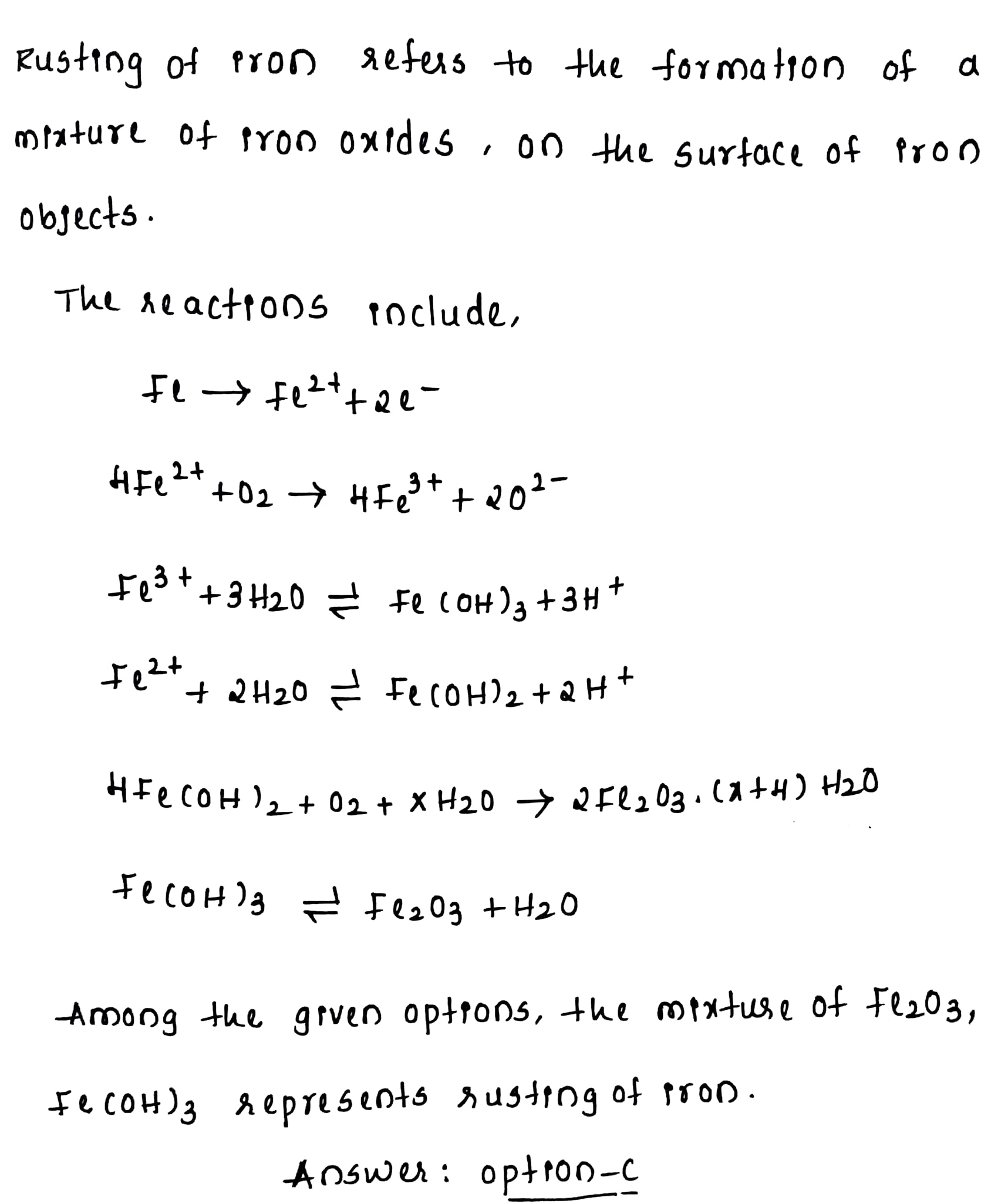

Which of the following mixtures represents rusting of iron?

A
FeO and Fe(OH)$$_3$$

B
FeO and Fe(OH)$$_2$$

C
Fe$$_2$$O$$_3$$ and Fe(OH)$$_3$$

D
Fe$$_3$$O$$_4$$ and Fe(OH)$$_2$$

Solution
Question 10
1 / -0

The amount of charge required to liberate 9 gm of aluminium ( atomic weight = 27 and valency = 3 ) in the process of electrolysis is ( Faraday's number = 96500 coulombs/gm equivalent)

A
321660 coulombs

B
69500 coulombs

C
289500 coulombs

D
96500 coulombs

Solution

The atomic mass of $$Al=27 g/mol$$
$$9g $$ of $$Al=\dfrac{9}{27}=0.333 moles$$
1 mole $$Al= 3 $$ moles electrons.
$$0.333$$ moles $$Al=0.333\times 3=1 $$ mole electrons
1 mole electrons =1 faraday of electricity $$=96500 C.$$
Hence, option (D) is the correct answer.
