Wave Optics Test

Result

Wave Optics Test - 76

Score
-
out of -
Rank
-
out of -

TIME Taken - -

SHARING IS CARING

If our Website helped you a little, then kindly spread our voice using Social Networks. Spread our word to your readers, friends, teachers, students & all those close ones who deserve to know what you know now.

Weekly Quiz Competition

Question 1
1 / -0

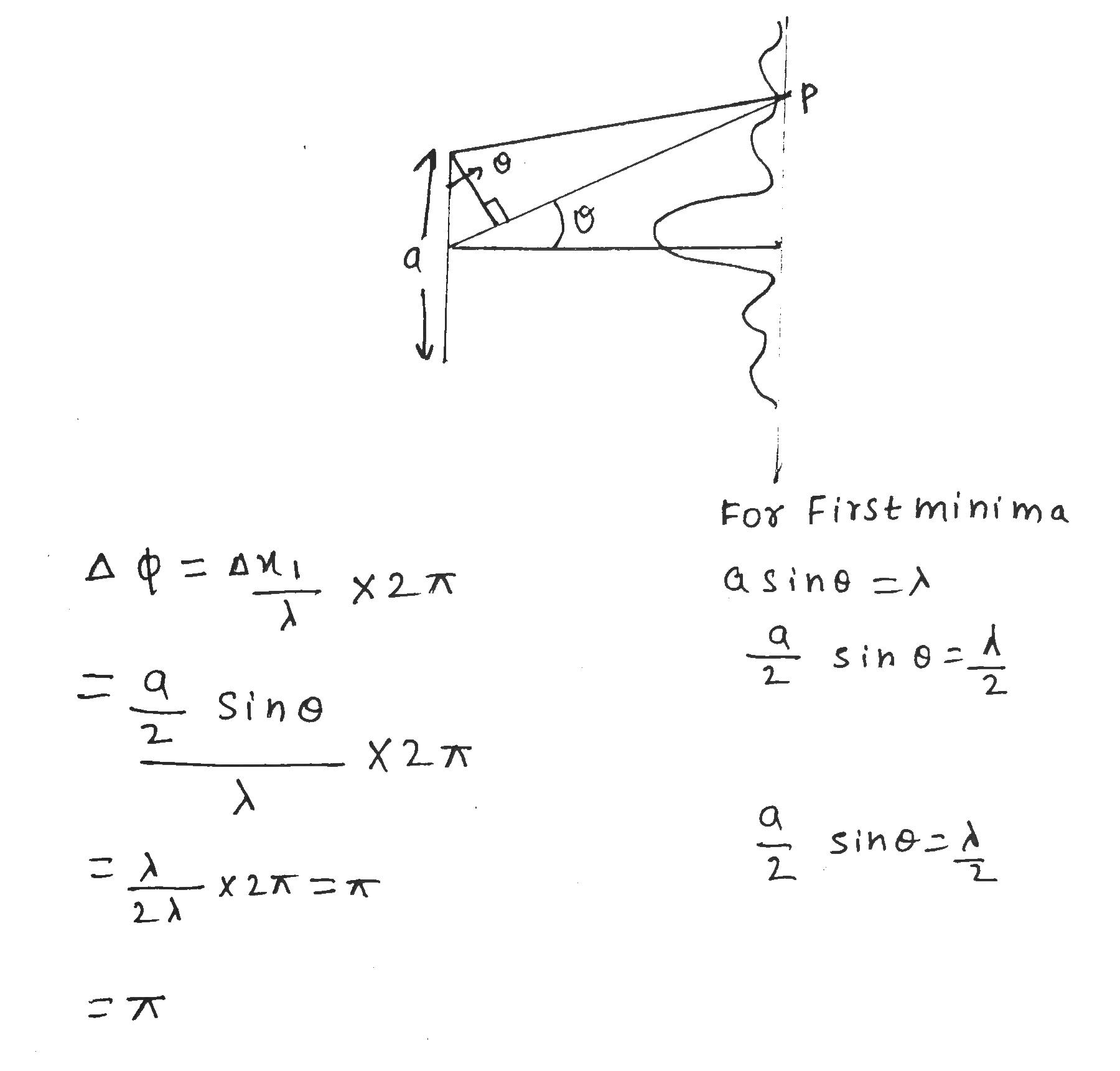

At the first minimum adjacent to the central maximum of a single slit diffraction plate the phase difference between the huygens wavelet from the edge of the slit and the wavelet from the midpoint of the slate

A
$$\pi/8$$

B
$$\pi/4$$

C
$$\pi/2$$

D
$$\pi$$

Solution
Question 2
1 / -0

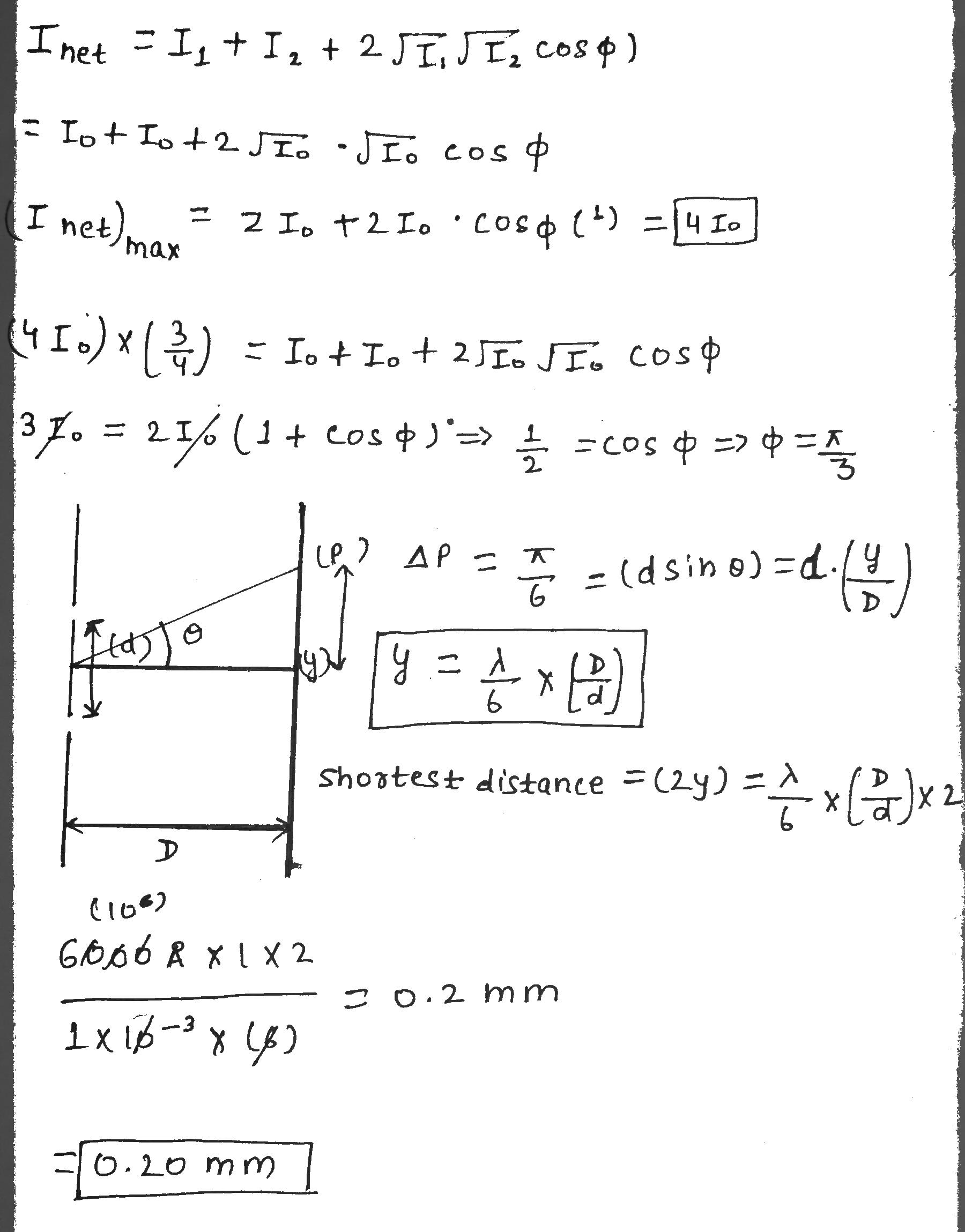

In a YDSE experiment , d= 1mm,$$\lambda =6000 A$$ and D =1 m. The minimum distance between two points on screen having 75% intensity of the maximum intensity will be

A
0.50 mm

B
0.40 mm

C
0.30 mm

D
0.20 mm

Solution
Question 3
1 / -0

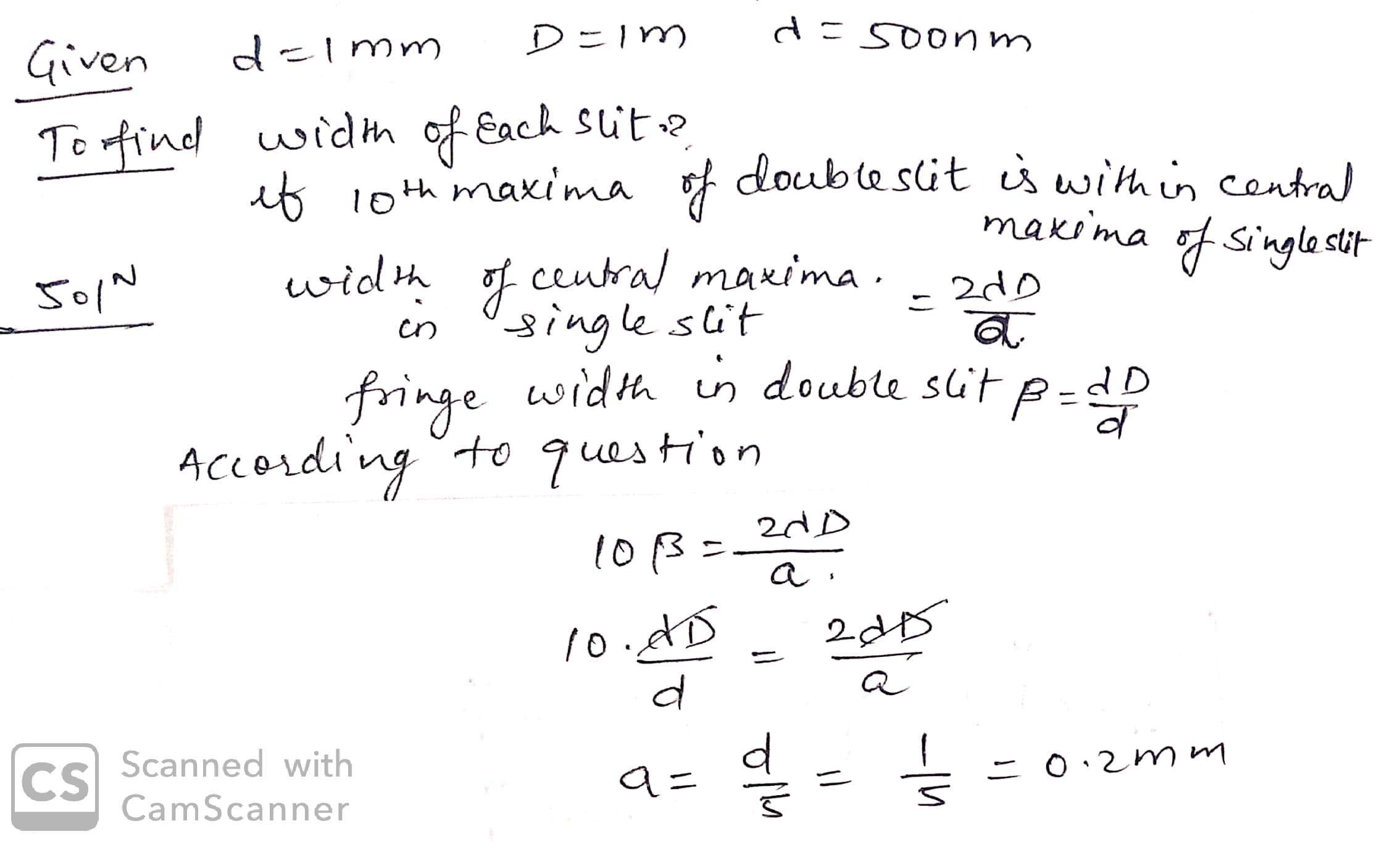

In a double slit experiment, the two slits are $$1\ mm$$ apart and the screen is placed $$1\ m$$ away. A monochromatic light wavelength $$500\ nm$$ is used. What will be the width of each slit for obtaining ten maxima of double slit with in the central maxima of single slit pattern ?

A
$$0.1\ mm$$

B
$$0.5\ mm$$

C
$$0.02\ m$$

D
$$0.2\ mm$$

Solution
Question 4
1 / -0

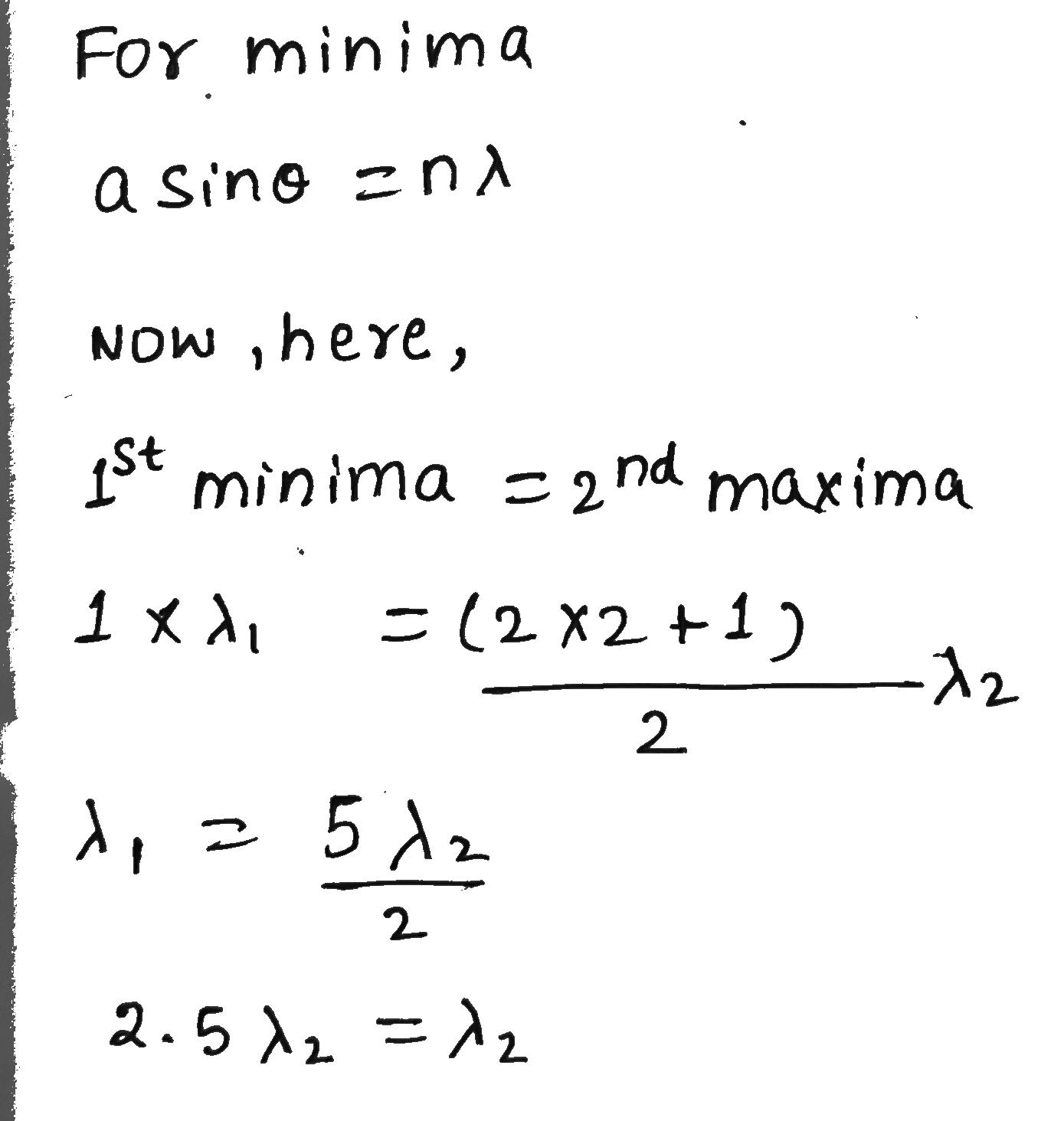

In case of diffraction pattern of a single slit under polychromatic illumination first minima of wavelength $${ \lambda }_{ 1 }$$ is found coincide with the second maximam of wavelength $${ \lambda }_{ 2 }$$ then

A
$$3{ \lambda }_{ 1 }=2{ \lambda }_{ 2 }$$

B
$$2.5{ \lambda }_{ 1 }={ \lambda }_{ 2 }$$

C
$${ \lambda }_{ 1 }={ 3.5\lambda }_{ 2 }$$

D
$$5{ \lambda }_{ 1 }={ \lambda }_{ 2 }$$

Solution
Question 5
1 / -0

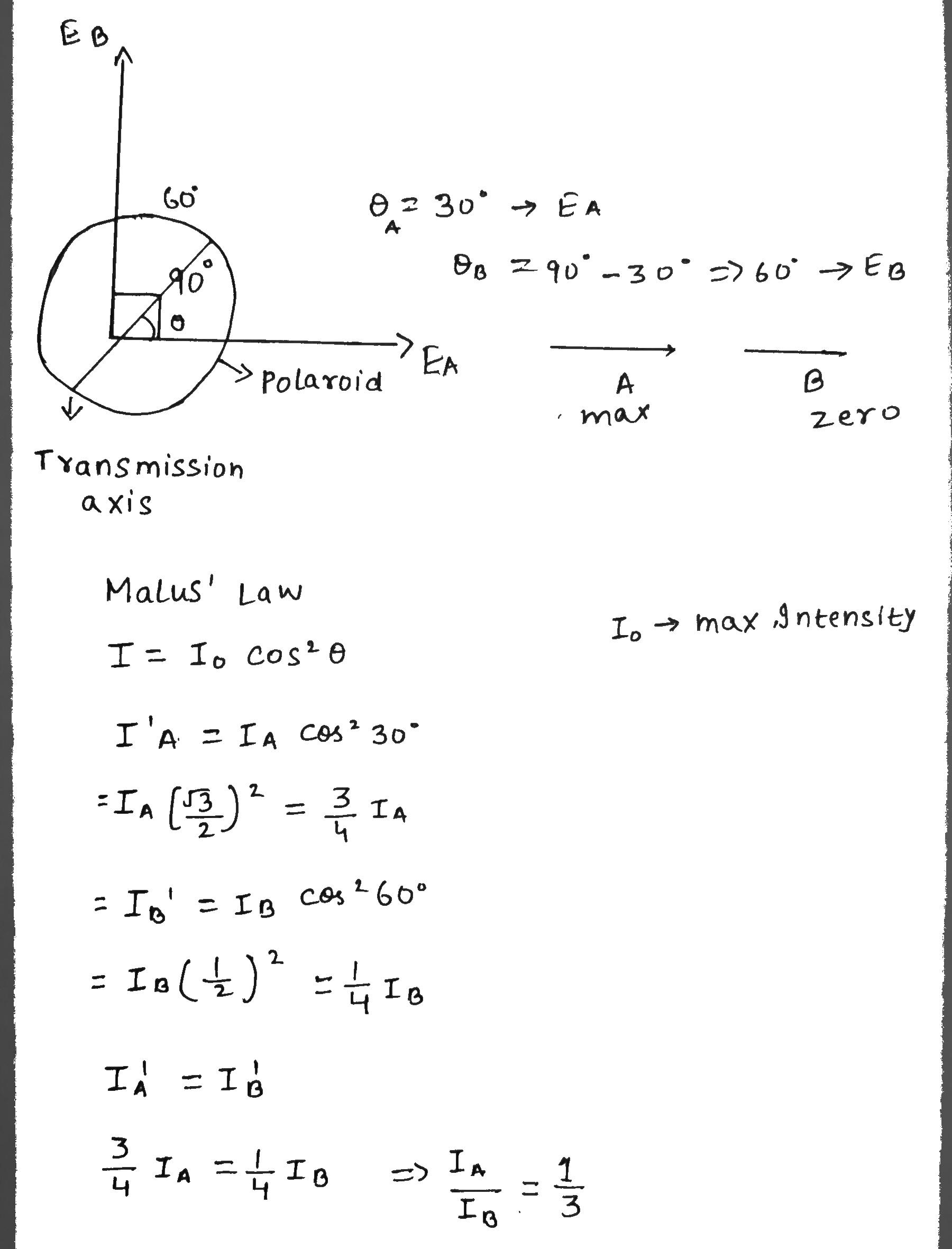

The beams, $$A$$ and $$B$$ of plane polarized light with mutually perpendicular planes of polarization are seen through a polaroid. From the position when the beam. A has maximum intensity (and beam $$B$$ has zero intensity), a rotation of polaroid through $$30^{\circ}$$ makes the two beams appear equally bright. If the initial intensities of the two beams are $$I_{A}$$ and $$I_{B}$$ respectively, then $$\dfrac {I_{A}}{I_{B}}$$ equals.

A
$$3$$

B
$$\dfrac{3}{2}$$

C
$$1$$

D
$$\dfrac{1}{3}$$

Solution
Question 6
1 / -0

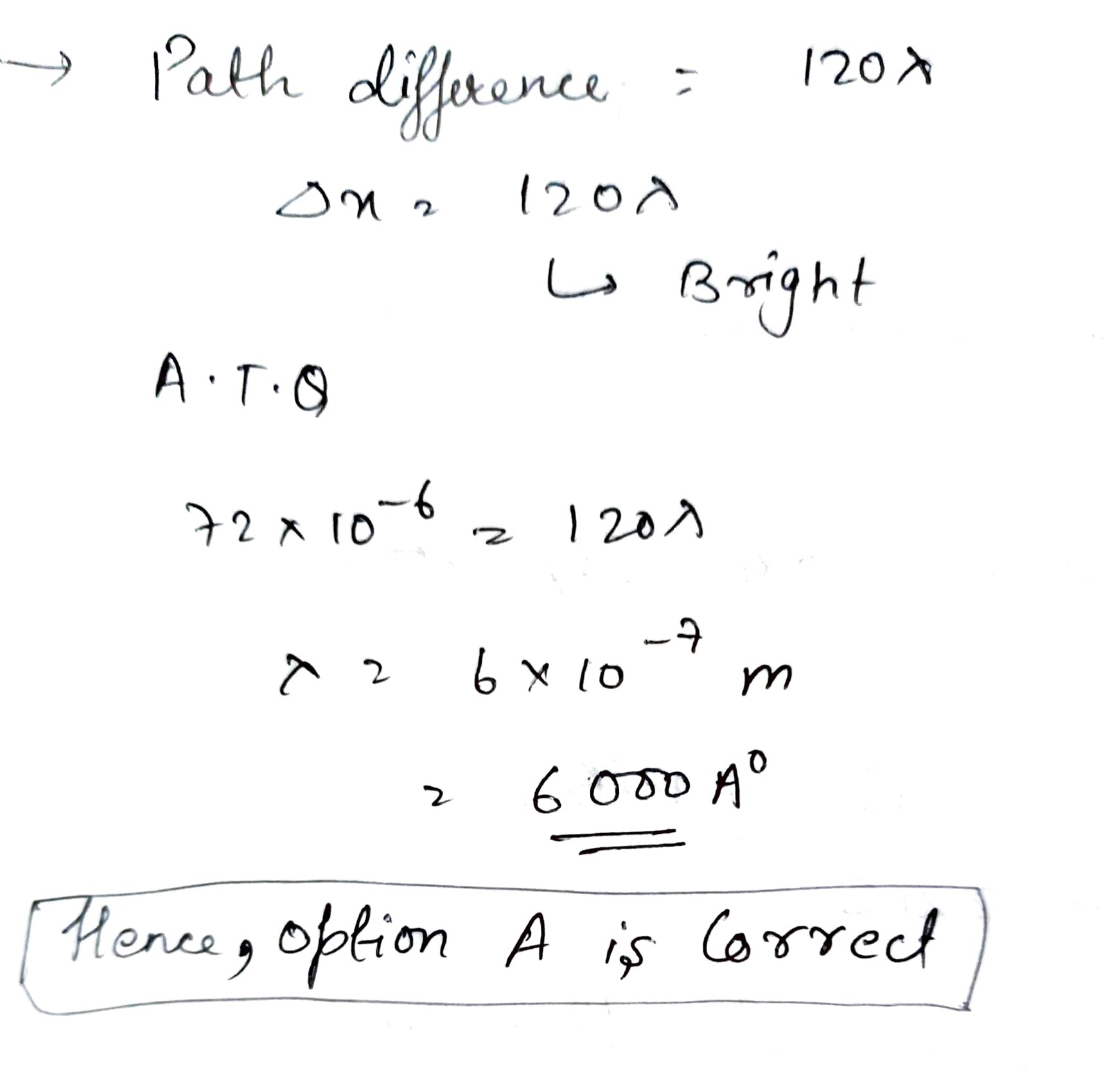

The path difference between two identical waves arriving at a point is $$120\lambda $$, if the path difference is $$72\mu m$$ then:

A
wavelength of light is $$6000 A$$ and the point is bright

B
wavelength of light is $$6000\,{A^ \circ }$$ and the point is dark

C
wavelength of light is $$5000 A$$ and the point is bright

D
wavelength of light is $$5000 A$$ and the point is dark

Solution
Question 7
1 / -0

In young's double slit experiment , the intensity of light coming form the first slit is double the intensity from the second slit.The ratio of the maximum intensity to the minimum intensity on the interference fringe pattern observed is.

A
34

B
40

C
25

D
38

Solution

$$\dfrac {I_{max}}{I_{min}}=\left(\dfrac {\sqrt {\dfrac {I_1}{I_2}}+1}{\sqrt {\dfrac {I_1}{I_2}}-1}\right)^2$$

$$ =\left(\dfrac {\sqrt 2 +1}{\sqrt 2 -1}\right)^2 \approx 34$$; (given $$i_1 =2i_2$$)
Question 8
1 / -0

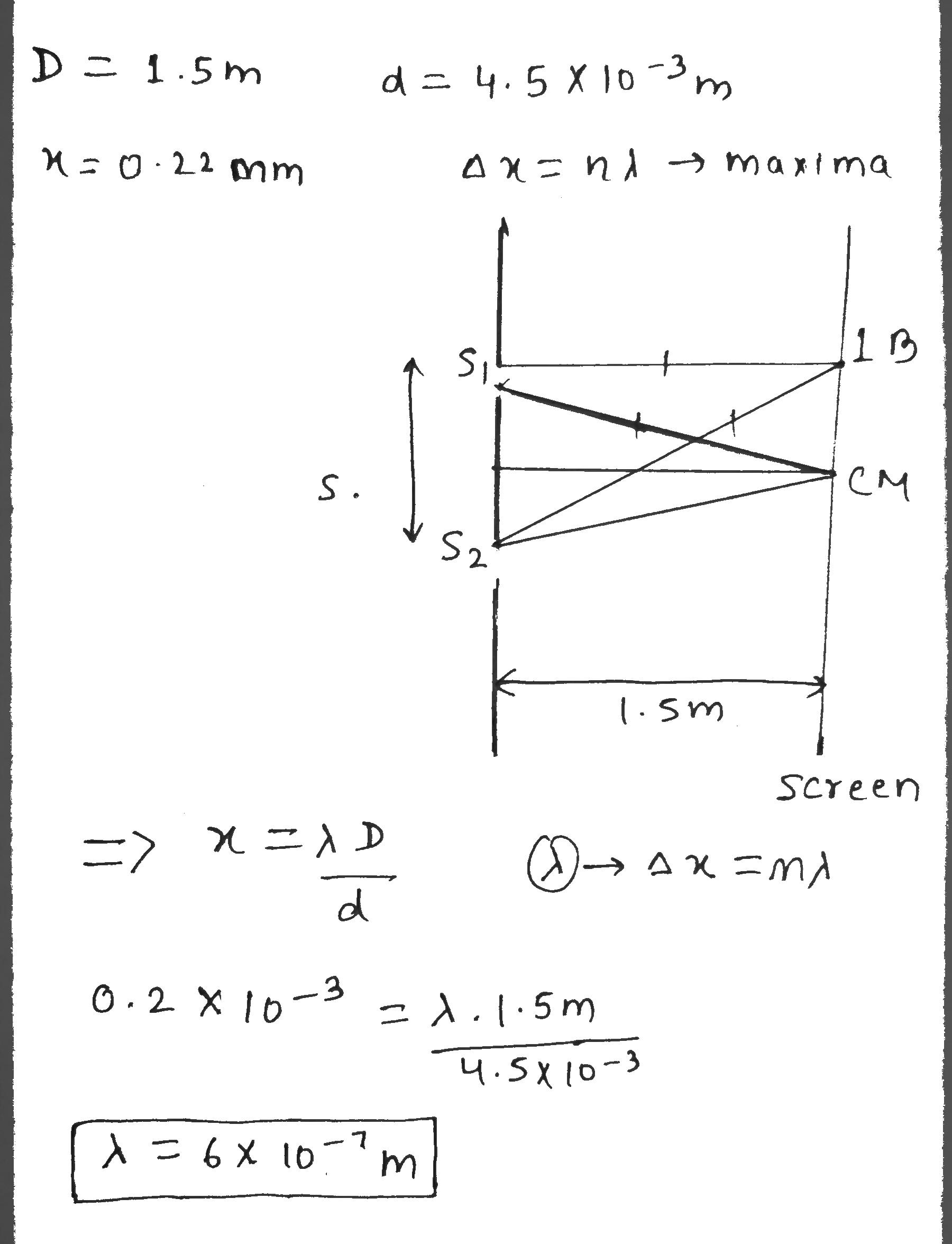

In young's double slit experiment, D=1.5 m, $$ d=4.5 \times 10^{-3} $$ m and fringe width x=0.2 mm. what is the path difference between the interfering beams for two successive maxima ?

A
$$ 4.5 \times 10^{-7} $$

B
$$ 5.25 \times 10^{-7} $$

C
$$ 6 \times 10^{-7} $$

D
$$ 2\times 10^{-7} $$

Solution
Question 9
1 / -0

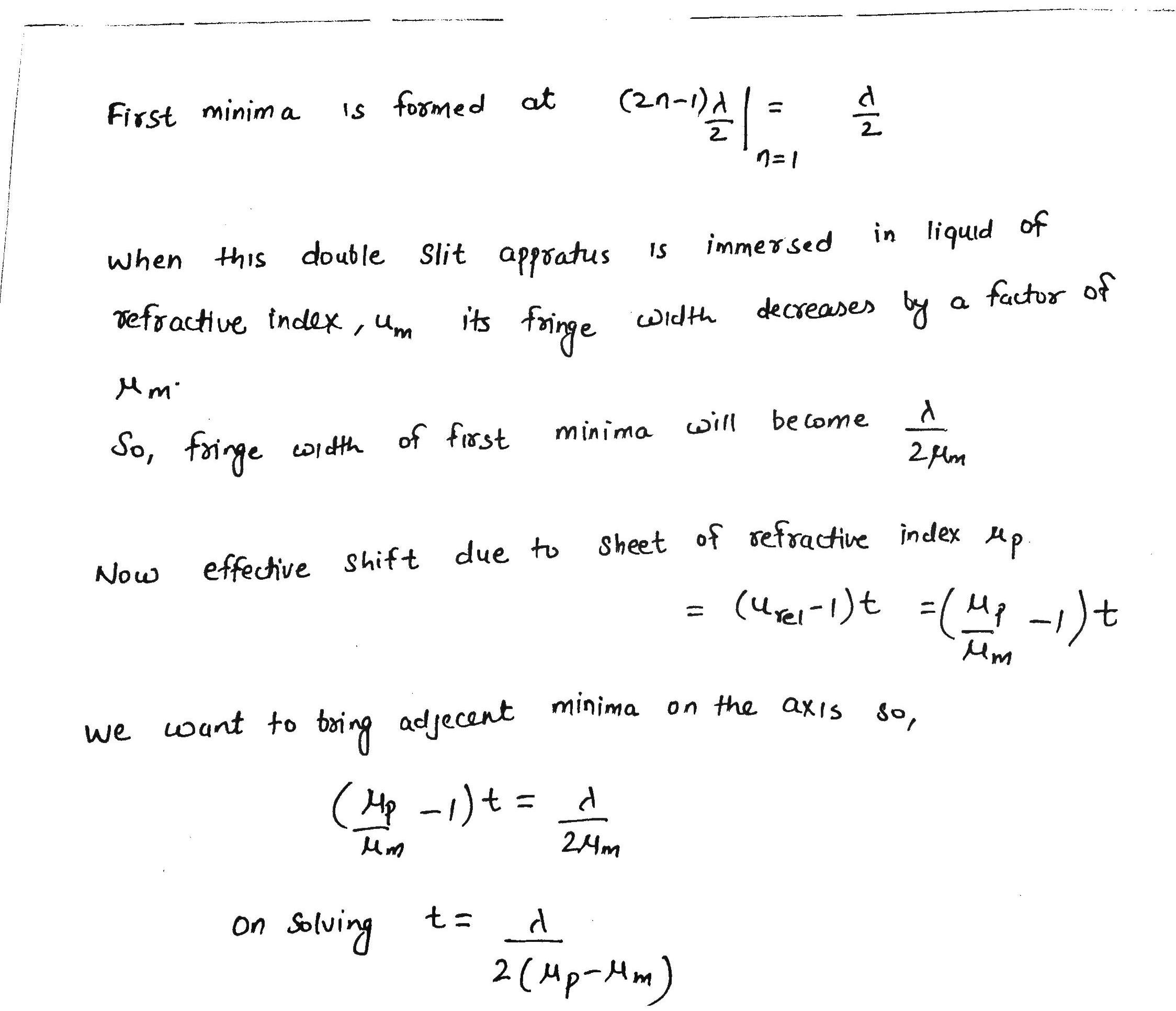

A double slit apparatus is immersed in a liquid of refractive index $$\mu_m$$. It has a slit separation $$d$$ and the distance between the plane of the slits and the screen as $$D(D > > d)$$. The slits are illuminated by a parallel beam of wavelength $$\lambda_{0}$$. The smallest thickness of a sheet of refractive index $$\mu_{p}$$ to bring adjacent minima on the axis is

A
$$\dfrac {\lambda_{0}}{2(\mu_{p} - \mu_{m})}$$

B
$$\dfrac {(\mu_{p} - \mu_{m})\lambda_{0}}{2}$$

C
$$\dfrac {\lambda_{0}}{(\mu_{p} - \mu_{m})}$$

D
$$(\mu_{p} - \mu_{m})\lambda_{0}$$

Solution
Question 10
1 / -0

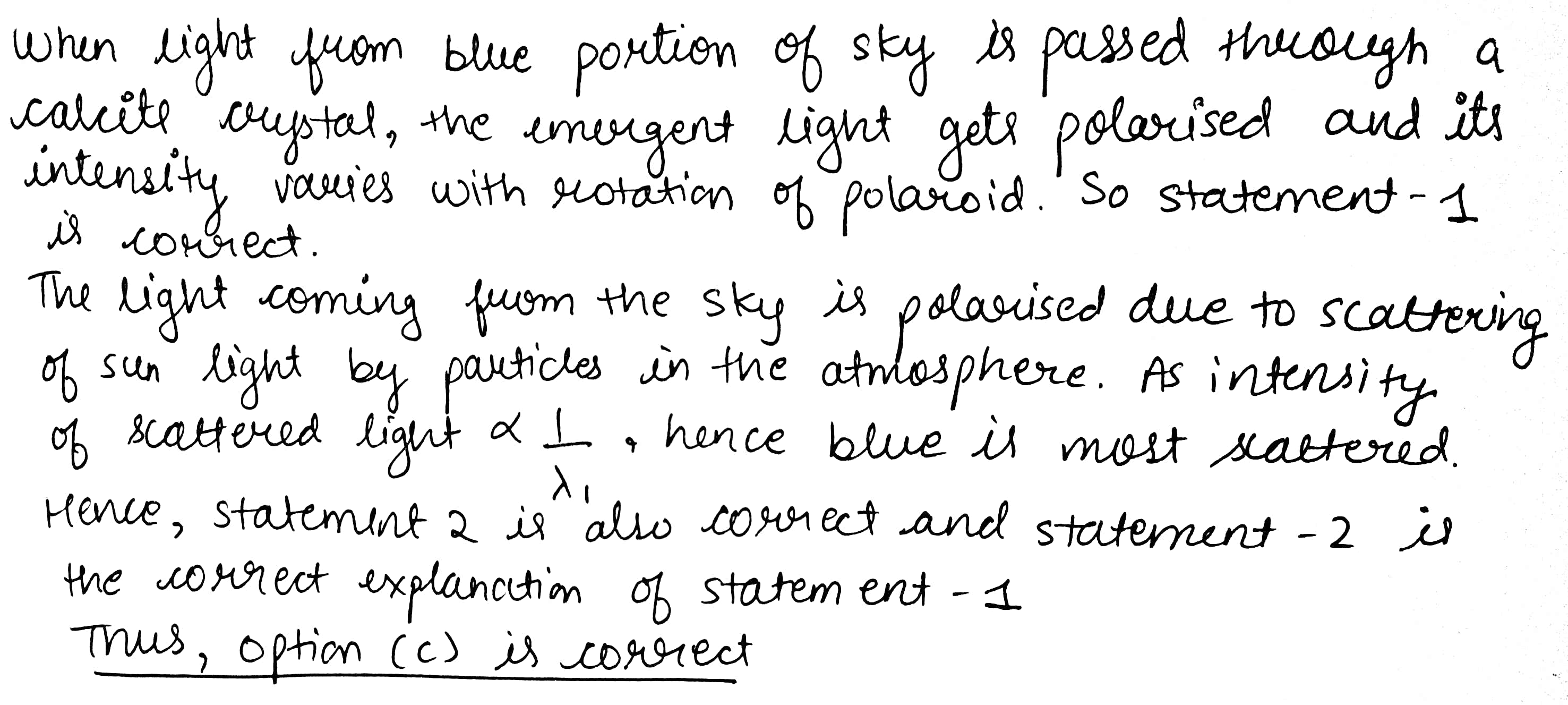

$$Statement-1:$$ On viewing the clear blue portion of the sky through a Calcite Crystal, the intensity of transmitted light varies as the crystal is rotated.
$$Statement-2:$$ The light coming from the sky is polarized due to scattering of sun light by particles in the atmosphere. The scattering is largest for blue light.

A
State-1 is false, statement-2 is true

B
State-1 is true, statement-2 is false

C
State-1 is true, statement-2 true, statement-2 is the correct explanation of statement-1

D
State-1 is true, statement-2 true, statement-2 is not correct explanation of statement-1

Solution
