Question 1
1 / -0

In an alternating current circuit, the phase difference between current l and voltage is $$\phi$$, then the Wattless component of current will be -

A
$$I\cos \phi$$

B
$$I \tan\phi$$

C
$$I \sin\phi$$

D
$$I \cos^2\phi$$

Solution
Question 2
1 / -0

In a RLC series circuit at resonance, the value of the power factor is :

A
infinity

B
zero

C
$$\dfrac{1}{\sqrt{2}}$$

D
$$1$$

Solution

At resonance, $$X_L = X_c$$
$$\implies \ Z = \sqrt{R^2 + (X_L-X_c)^2} = R$$
Power factor $$\cos\phi = \dfrac{R}{Z} = \dfrac{R}{R} = 1$$
Question 3
1 / -0

A current of 2A flow in an inductance of 10H. for generating 100V EMF in it the rate of change current will be.

A
1 A/sec

B
5 A/sec

C
10 A/sec

D
100 A/sec
Question 4
1 / -0

A source of 220V is applied in an A.C. circuit. The value of resistance is $$220 \Omega$$. Frequency & inductance are 50 Hz and 0.7 H, then wattless current is

A
$$0.5 amp$$

B
$$0.7 amp$$

C
$$1.0 amp$$

D
none

Solution

$$ \Rightarrow R = 2\Omega $$
$$ \Rightarrow {V_{rms}} = 220V$$
$$ \Rightarrow {V_ \circ } = 220\sqrt 2 $$
$$\Rightarrow {X_L} = WL = 100\pi \times 0.7$$
$$ \Rightarrow 100\dfrac{{22}}{7} \times \dfrac{7}{{10}} = 220\Omega $$
$$\therefore z = 220\sqrt 3 $$
also $$\tan \phi = \dfrac{{{V_L}}}{R} = 1$$
$$\phi = {45^ \circ }$$
$$\therefore$$ wattless current$$ = {i_ \circ }\sin \phi $$
$$ = \dfrac{{220\sqrt 3 }}{{220\sqrt 2 }}\sin {45^ \circ }$$
$$ = \dfrac{1}{{\sqrt 2 }} = 0.7A$$
so we get $$0.7A$$
Hence option$$B$$ is correct.
Question 5
1 / -0

The self inductance of a choke coil is mH. when it is connected with a 10 VDC source then the loss of power is 20 watt. When it connected with 10 volt AC source loss of power is 10 watt. The frequency of AC source will bw-

A
50 Hz

B
60 Hz

C
80 Hz

D
100 Hz

Solution

$$\begin{array}{l} When\, \, \, dc\, \, is\, \, pass\, \, through\, \, the\, \, inductor\, \, no\, \, induv\tan ce\, \, effect\, \, will\, \, be\, \, their\, \, only \\ resis\tan ce\, \, will\, \, be\, their\, \, resis\tan ce\, \, of\, \, the\, \, inductor\, \, be\, \, R \\ 20=\frac { { 100 } }{ R } \\ R=5\Omega \\ Xl=\omega \times 0.001 \\ power\, \, =\frac { { { v^{ 2 } } } }{ z } \cos \phi \\ Z=\sqrt { 25+{ \omega ^{ 2 } }\times { { 10 }^{ -6 } } } \\ \cos \phi =\frac { R }{ Z } =\frac { 5 }{ Z } \\ 10=\frac { { 100 } }{ Z } \frac { 5 }{ Z } =\frac { { 500 } }{ { { Z^{ 2 } } } } =\frac { { 500 } }{ { 25 } } +{ \omega ^{ 2 } }\times { 10^{ -6 } } \\ 25+{ \omega ^{ 2 } }\times { 10^{ -6 } }=50 \\ { \omega ^{ 2 } }=25\times { 10^{ 6 } } \\ \omega =5000 \end{array}$$
$$=50 Hz$$
Hence, Option $$A$$ is correct answer.
Question 6
1 / -0

In the phasors method for the only capacitive A.C. circuit, voltage is in +X direction then current is in direction.

A
+X

B
-X

C
+Y

D
-Y

Solution
Question 7
1 / -0

If an ac source is connected across ideal capacitor and current passing through it is dentoed by curve then instantaneous power is denoted by curve

A
$$c$$

B
$$b$$

C
$$e$$

D
$$a$$
Question 8
1 / -0

In LC oscillation resistance is $$100\Omega$$ and inductance and capacitance is $$1$$H and $$10\mu F$$. Find the half power of frequency.

A
$$266.2$$

B
$$366.2$$

C
$$166.2$$

D
$$233.2$$

Solution

$$f_n=\omega_0-\dfrac{R}{2L}=\dfrac{1}{\sqrt{LC}}-\dfrac{R}{2L}$$

$$=\dfrac{1}{\sqrt{1\times 10\times 10^{-6}}}$$ $$-\dfrac{100}{2\times 1}$$

$$=\dfrac{1000}{\sqrt{10}}-\dfrac{100}{2}$$
$$=100\left[\sqrt{10}-0.5\right]=266.27$$.
Question 9
1 / -0

If in an A.C., L-C series circuit $$X_c > X_L$$. Hence potential _________.

A
Lags behind the current by $$\pi/2$$

B
Leads the current by $$\pi$$ in phase

C
Leads the current by $$\pi/2$$ in phase

D
Lags behind the current by $$\pi$$ in phase

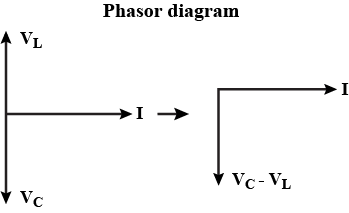

Solution

Potential lags by $$\pi/2$$ phase.
Question 10
1 / -0

Two inductors each of inductance L are connected in parallel . what is their equivalent inductance?

A
2 L

B
L

C
L/ 2

D
L/ 4
