Question 1
1 / -0

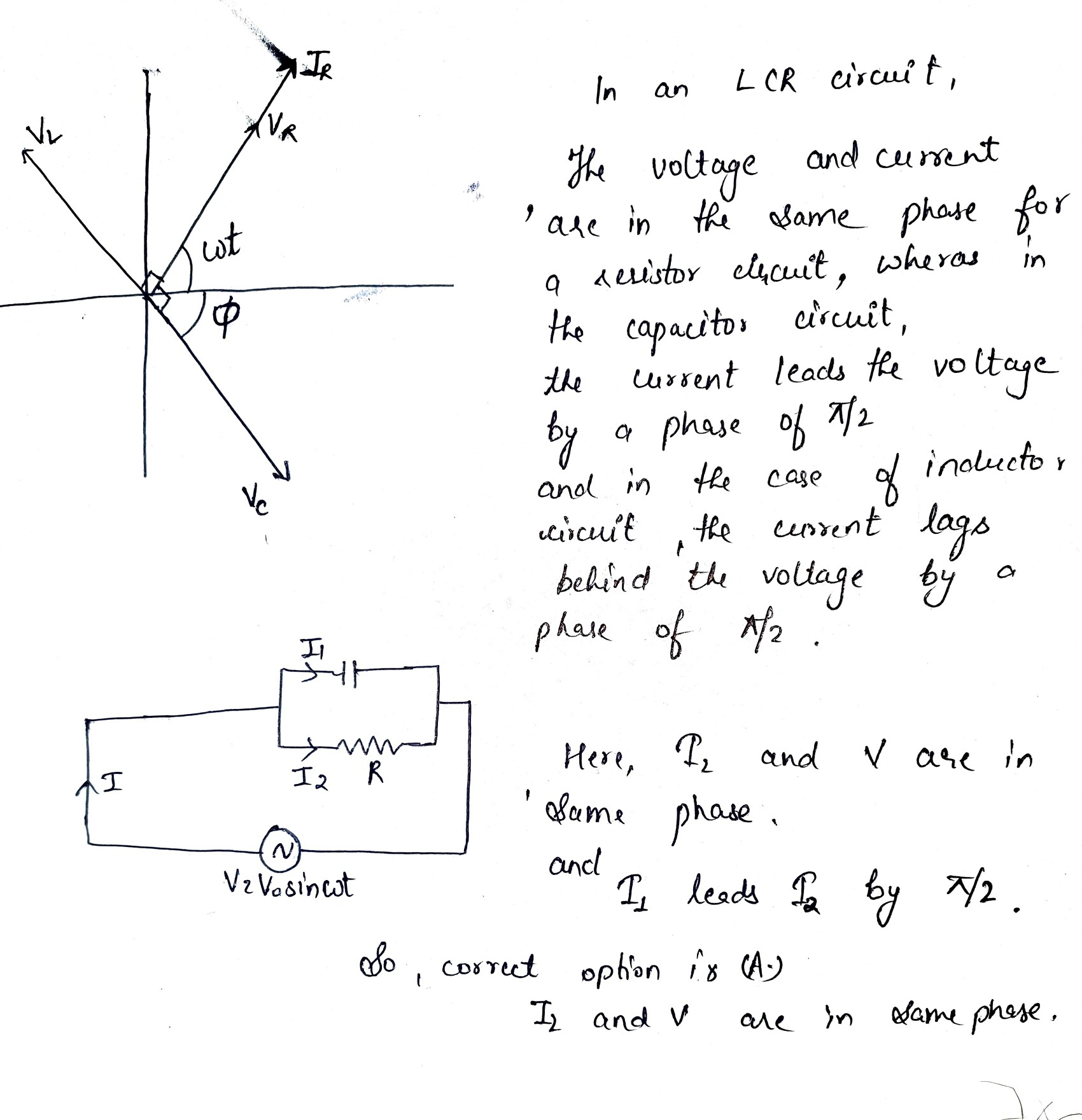

In the given AC circuit

A
current $I_2$ and V are is same phase

B
current $I_2$ leads $I_1$ by $90^0$

C
current I leads $I_2$ by $\theta < 90^0$

D
current I leads $I_1$ by $\theta < 90^0$

Solution
Question 2
1 / -0

An alternating current of $1.5mA$ and angular frequency $300\ rad/sec$ flows through a $10K\Omega$ resistor and a $0.50\mu F$ capacitor in series. find the rms voltage across the capacitor and impedance of the circuit?

A
$1.2\times 10^{4}\Omega ;\ 10V$

B
$10^{4}\Omega ;\ 10^{4}V$

C
$1.0\times 1.0^{4}\Omega ;\ 50V$

D
$10\Omega ;10v$

Solution

$V_{rms}$ across capacitor $=I_{rms} \times C$
$=1.5 \times 10^{-3} \times \cfrac 1 {\omega C}$
$=1.5\times 10^{ -3 }\times \cfrac { 1 }{ 300\times 0.5\times { 10 }^{ -6 } }$
$=1 \times 10$
$10 V$
Impedance of circuit is
$Z=\sqrt { { R }^{ 2 }+{ X }_{ C }^{ 2 } }$
$=\sqrt { ({ 10\times { 10 }^{ 3 }) }^{ 2 }+({ \cfrac { 1 }{ 1.5\times { 10 }^{ -4 } } ) }^{ 2 } }$
$=\sqrt { { 10 }^{ 8 }+\cfrac { { 10 }^{ 8 } }{ ({ 1.5) }^{ 2 } } }$
$=1.2 \times 10^4 \quad\Omega$
Question 3
1 / -0

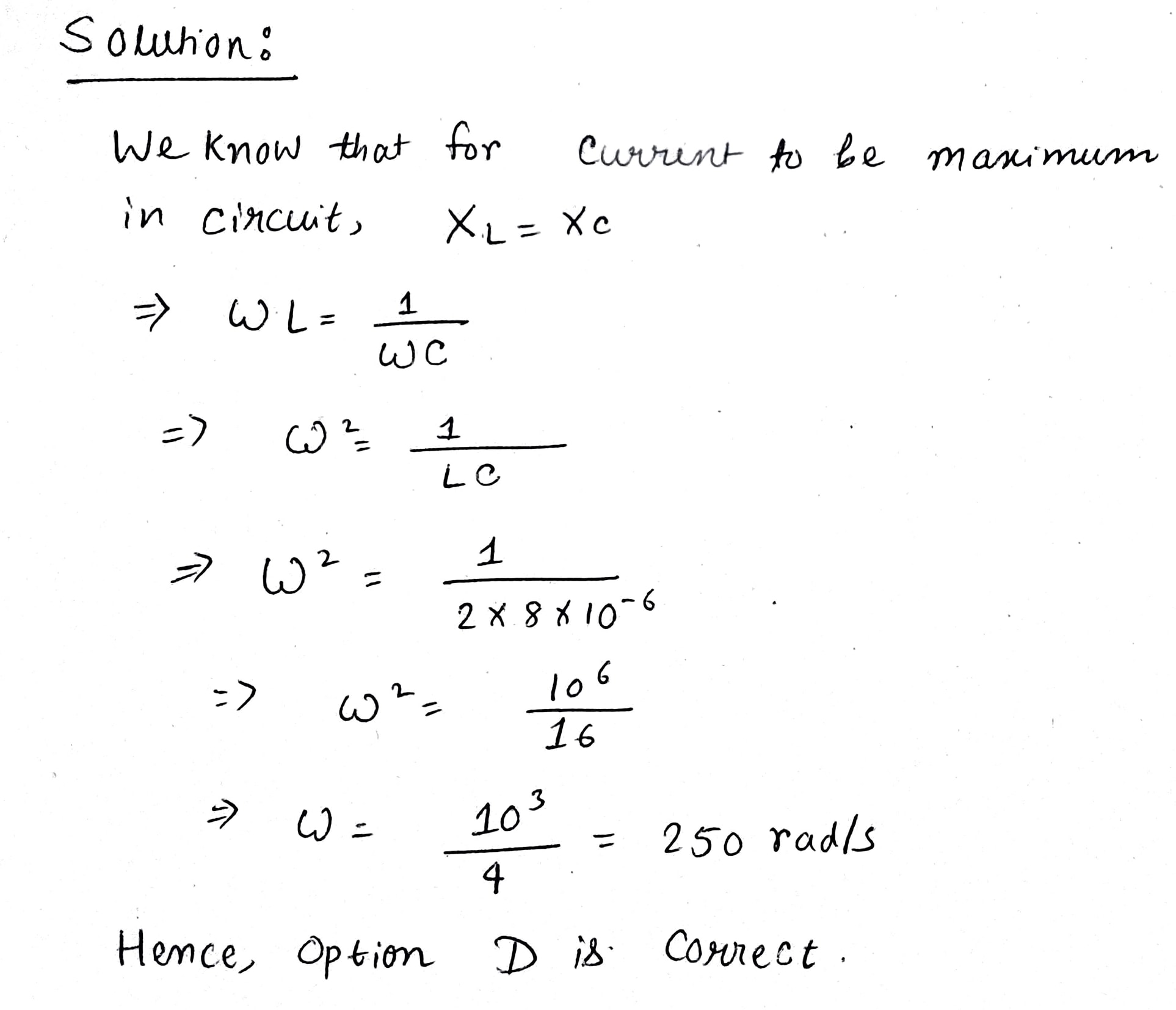

An inductance of $2H$ , capacitance of $8\mu F$ and resistance of $10K\Omega$ are connected in series to an AC source of $100V$ with adjustable frequency. The angular frequency at which current in the circuit is maximum is :

A
$50 \ rad/s$

B
$100 \ rad/s$

C
$125 \pi \ rad/s$

D
$250 \ rad/s$

Solution
Question 4
1 / -0

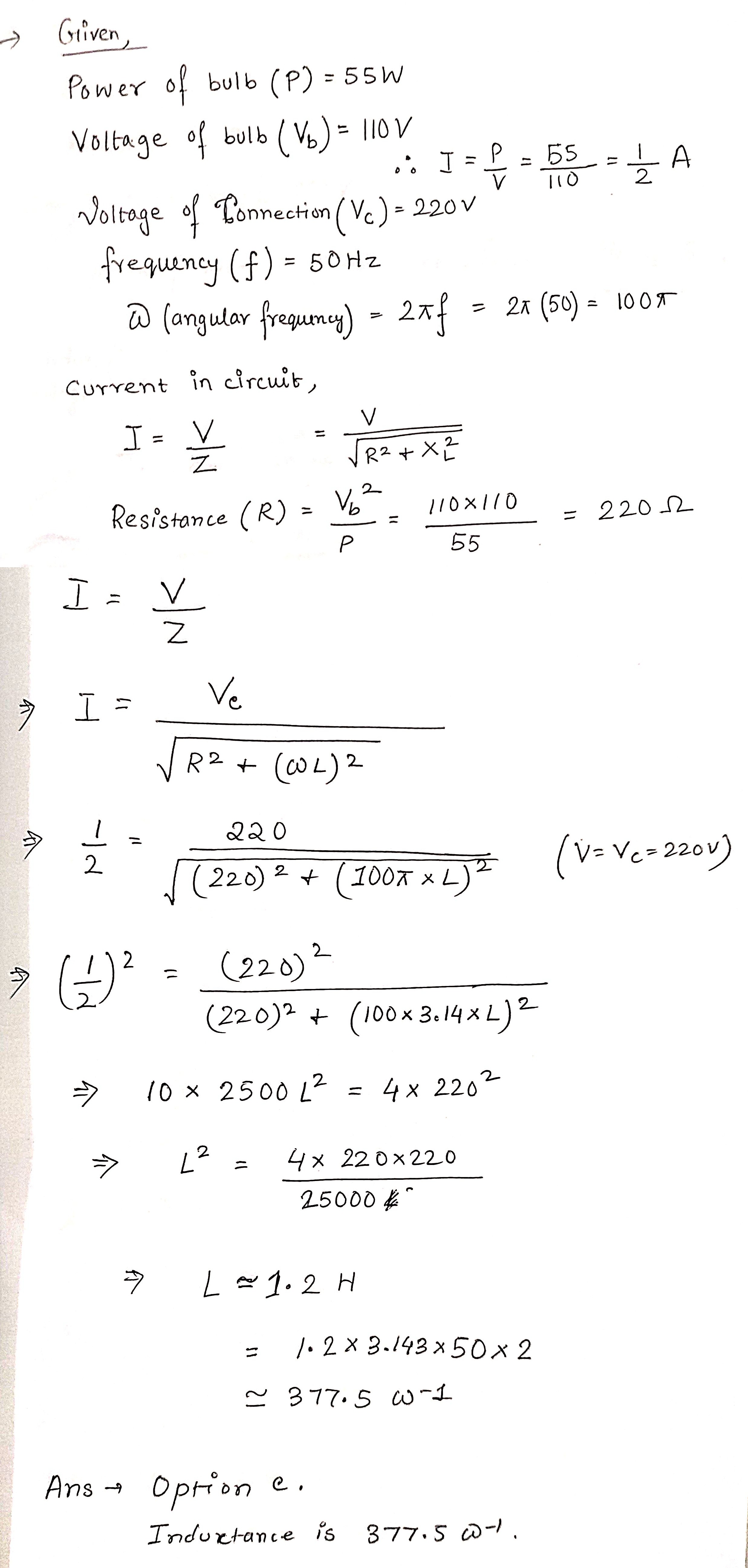

A bulb is rated $55 W/110 V$ . It is to be connected to a $220 V/50 Hz$ with inductor in series. The value inductance, so that bulb gets correct voltage is:

A
$220 \omega^{-1}$

B
$110 \omega^{-1}$

C
$377.5 \omega^{-1}$

D
$300 \omega^{-1}$

Solution
Question 5
1 / -0

If ${W_1}and\;{W_2}$ are half power frequencies of series LCR circuit, Then the reasonant frequency of the circuit is-

A
$\sqrt {{W_1}\;{W_2}}$

B
$\frac{{{W_1} + {W_2}}}{2}$

C
$\sqrt {\frac{{{W_1} + {W_2}}}{2}}$

D
$\frac{{{W_1} -{W_2}}}{2}$

Solution
Question 6
1 / -0

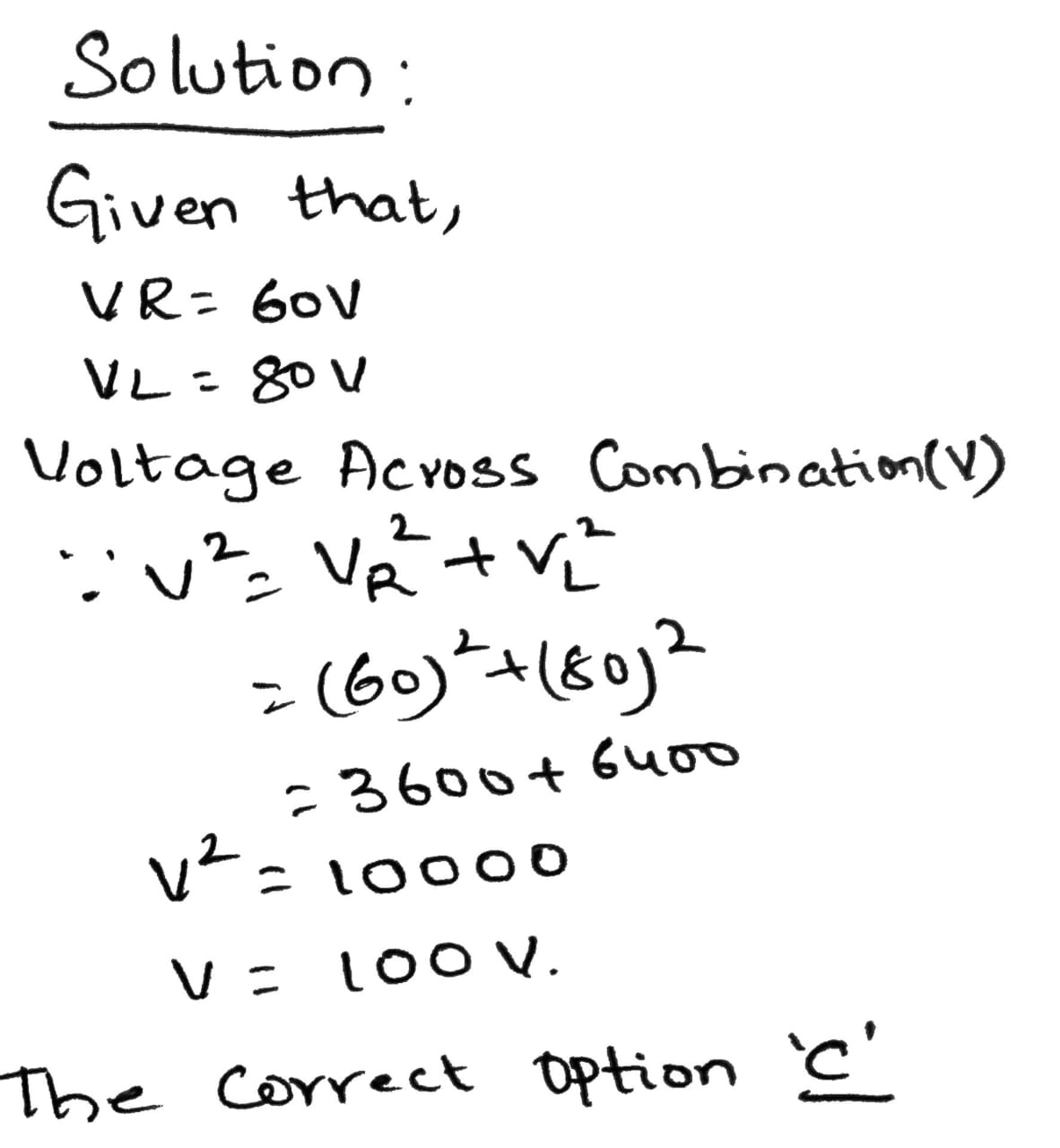

In an a.c. circuit consisting of resistance $R$ and inductance $L$ , the voltage across $R$ is $60$ volt and that across $L$ is $80$ Volt.The total Voltage across the combination is

A
$140 V$

B
$20 V$

C
$100 V$

D
$70 V$

Solution
Question 7
1 / -0

If alternating current of rms value 'a' flows through resistance R then power loss in resistance is :

A
Zero

B
$a^2R$

C
$\dfrac{a^2R}{2}$

D
$2 a^2R$

Solution

[B] $P = {I^2}_{RMS}R$
$= {a^2}R$
Question 8
1 / -0

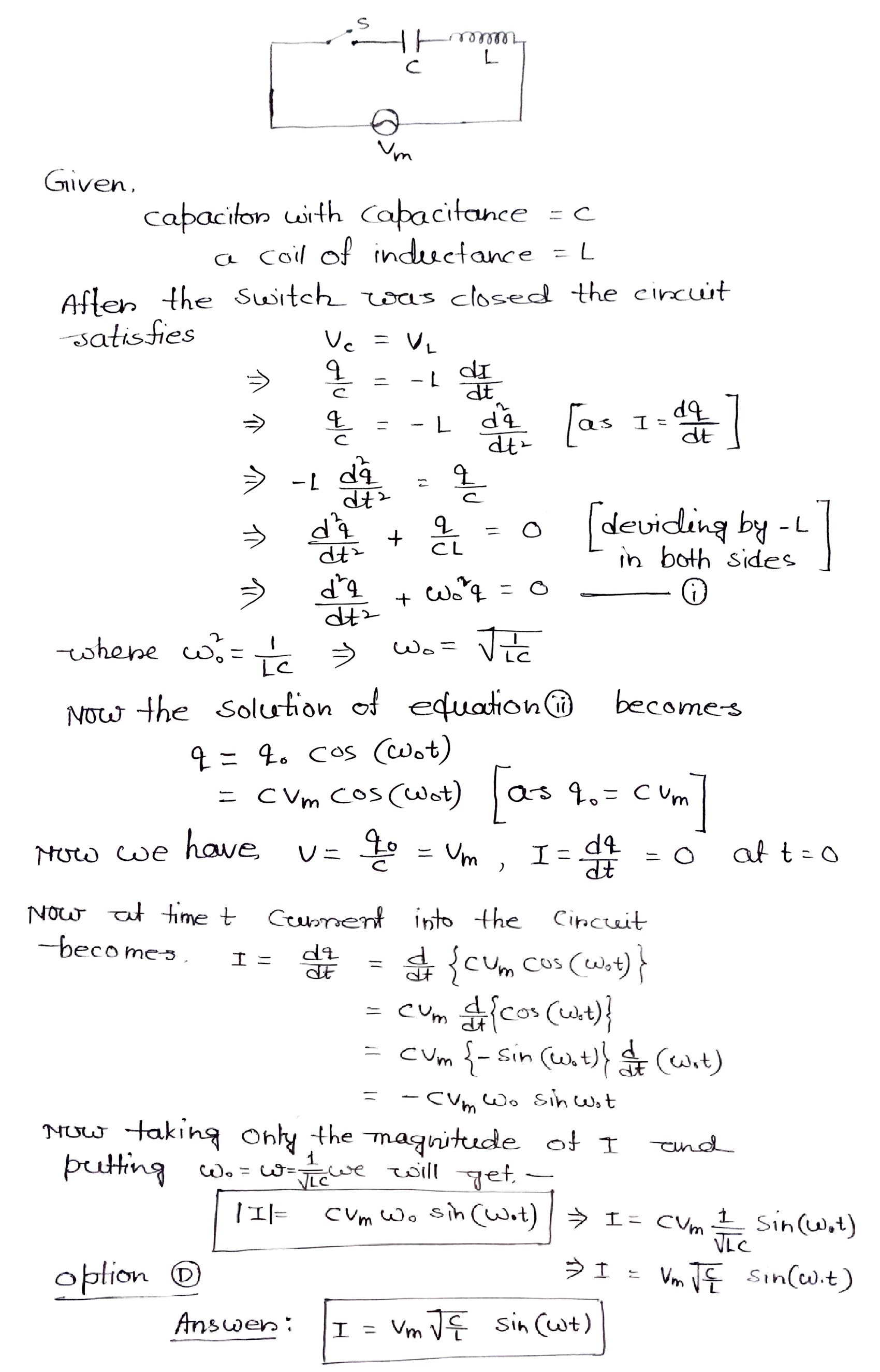

An oscillating circuit of a capacitor with capacitance $C$ , a coil of inductance $L$ with negligible resistance, and switch. With the switch disconnected the capacitor was charged to a voltage $V_m$ and then at the moment $t=0$ , the switch was closed. The current $I$ in the circuit as a function of time is represented as

A
$V_m\sqrt{\frac{L}{C}} sin (wt)$

B
$V_m\sqrt{\frac{C}{L}} sin (wt)$

C
$V_m\sqrt{\frac{L}{C}} cos (wt)$

D
$V_m\sqrt{\frac{C}{L}} sin (wt)$

Solution
Question 9
1 / -0

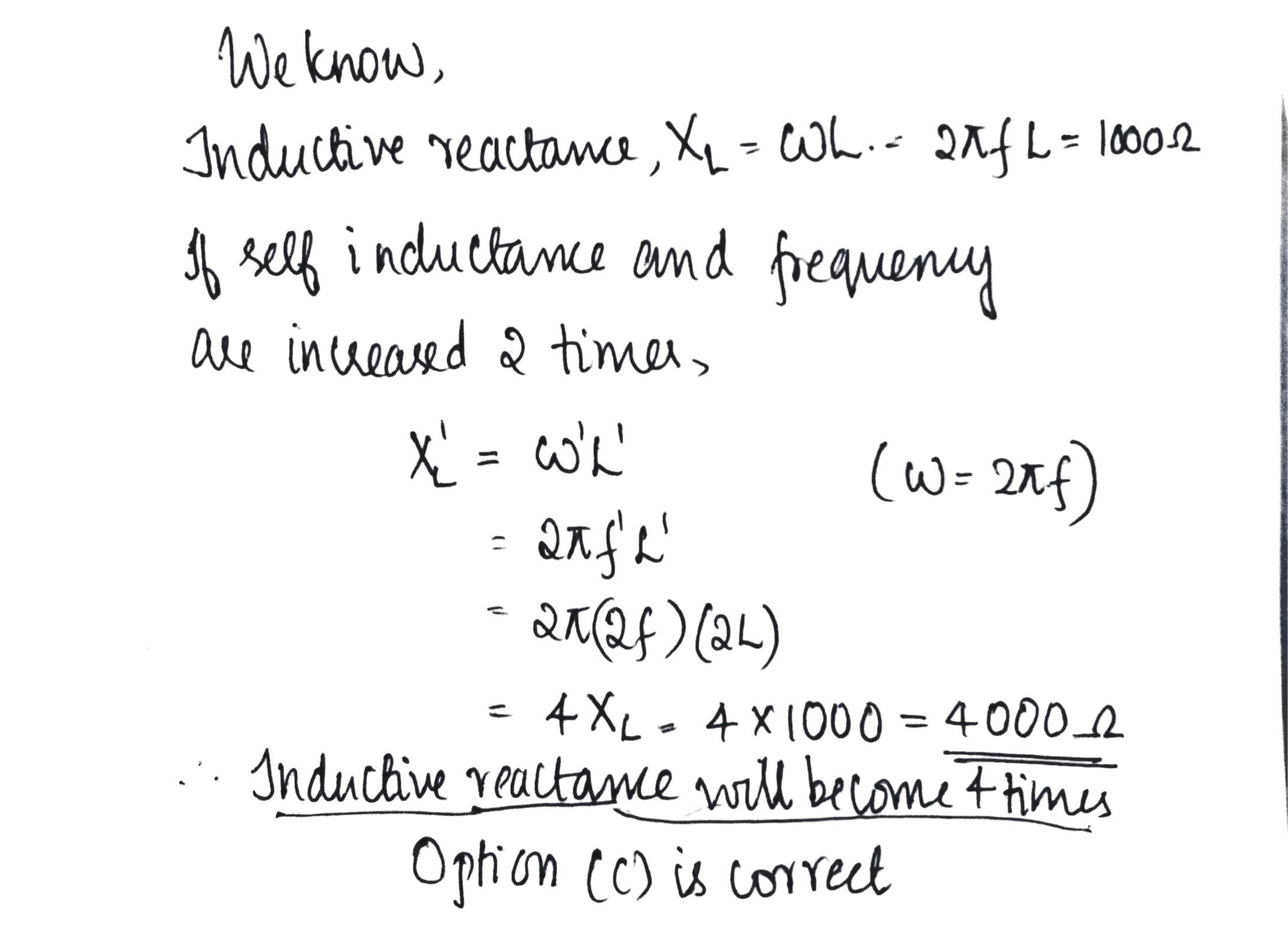

The inductive reactance of a coil is $1000\Omega .$ If its self inductance and frequency both are increased two times, then inductive reactance will be

A
$1000 \Omega$

B
$2000 \Omega$

C
$4000 \Omega$

D
$16000 \Omega$

Solution
Question 10
1 / -0

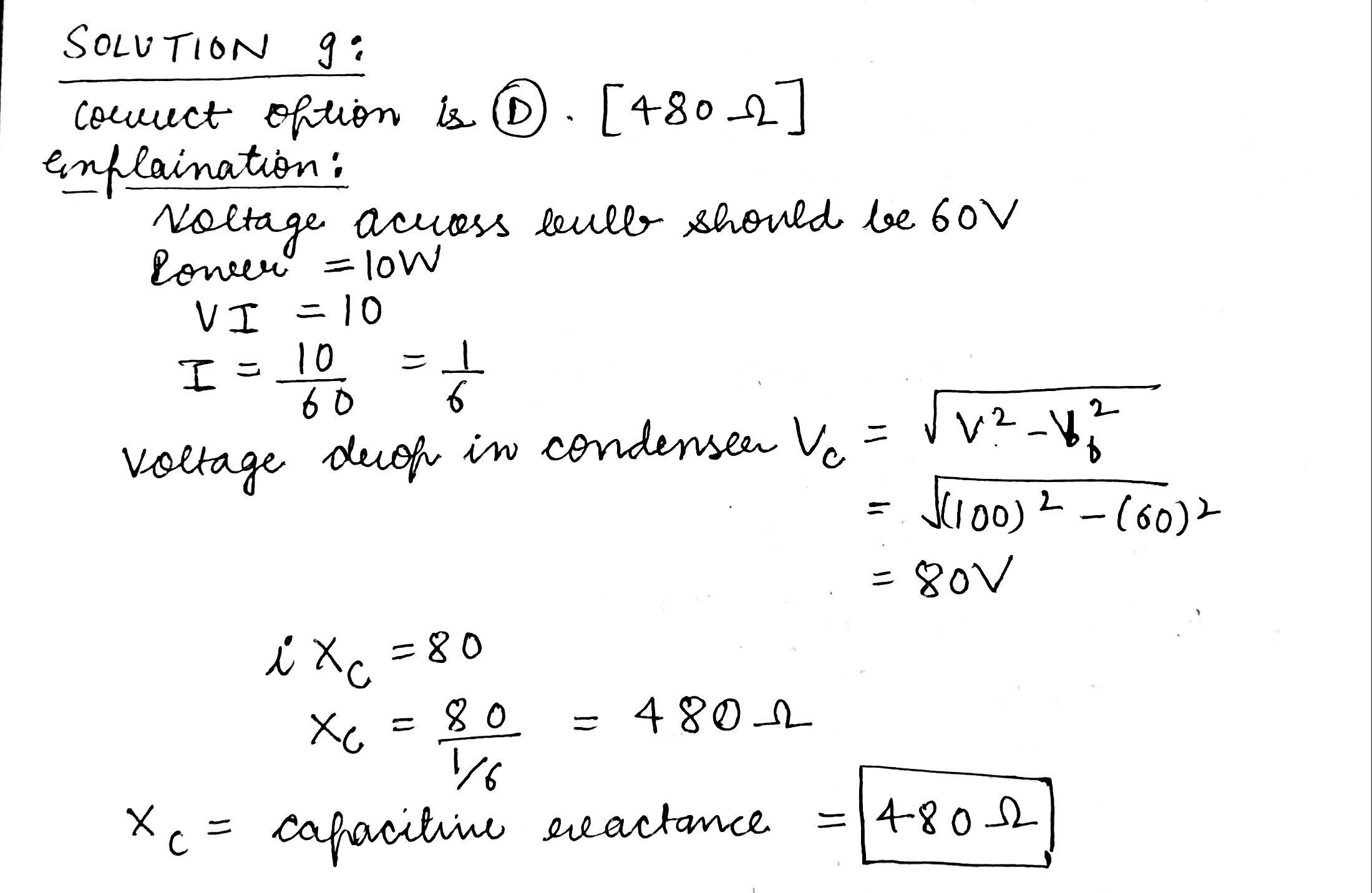

Calculate the capacitive reactance of a condenser in order to run a bulb rated at $10\ watt\ 60\ volt$ when connected in series to an a.c. source of $100\ volt$ .

A
$100\Omega$

B
$360\Omega$

C
$600\Omega$

D
$480\Omega$

Solution
