Explanation-
Enol-
Enol is “an organic compound that contains a hydroxyl group bonded to a carbon atom having a double bond and that is usually characterized by the grouping C=C(OH)”.
Resonance form-
Resonance structures are sets of Lewis structures that describe the delocalization of electrons in a polyatomic ion or a molecule
⇒ In Resonance form, the position of atoms remains unchanged, Only electrons shift

Additional InformationEnols are alkenes with a hydroxyl group attached to one of the double bonds’ carbon atoms. Enedials are alkenes containing hydroxyl groups on both sides of the double bond.
The enolic form of acetone contains 9-sigma, 1 pi-bond, and 2 lone pairs.

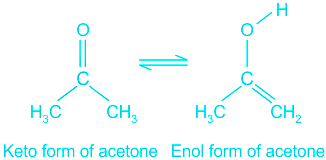

Acetone shows tautomerism with keto and enol form. Acetone is a carbon double bonded to oxygen. Then that carbon is further bonded to 2 more carbons which each have 3 hydrogens.
So when it goes to the enolic form, the oxygen becomes protonated and the double bond moves between the central carbon and one of the other carbons.
After this, if the number of bonds is counted, then-
Central carbon has 1 pi and 3 sigmas. The double-bonded carbon has 2 sigmas. The other carbon has 3 sigmas. The oxygen has 1 sigma and 2 lone pairs.
3+2+3+1=9 sigma and 1 pi and 2 lone pair.

The resonance form of the enolate ion will be
.
