Question 1
4 / -1

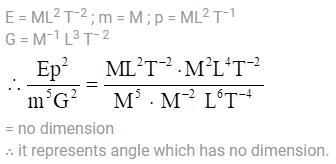

E, m, p and G denote energy, mass, angular momentum and gravitational constant. Then has the dimensions of

A
Length

B
Mass

C
Angle

D
Time

Solution
Question 2
4 / -1

A circular conducting loop of radius R carries a current I. Another straight infinite conductor carrying current I passes through the diameter of this loop as shown in the figure. The magnitude of force exerted by the straight conductor on the loop is :-

A

B

C

D

Solution

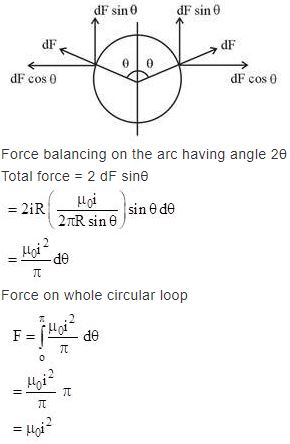

Take an arc of angle which make angle ‘θ’ with vertical. (dθ very small → point ‘P’)

⇒ Magnetic field due to infinite wire at this point

(where r = R sinθ i.e. perpendicular distance of ‘P’ from line)

⇒ force dF on this Point (Arc of length dl = Rdθ) is

Point (small arc) symmetric to point ‘P’ will also have same force dF
Question 3
4 / -1

Find the intensity of electromagnetic wave if the electric field in electromagnetic wave is

A
13.24 watt/m²

B
16.2 watt/m²

C
25.3 watt/m²

D
32.3 watt/m²

Solution

Electric field of electromagnetic wave Intensity of Electromagnetic wave in terms of maximum electric field is
Question 4
4 / -1

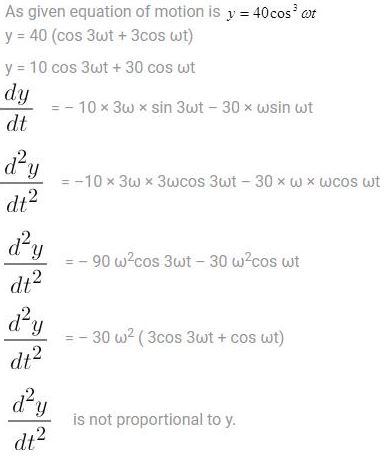

The displacement of a particle is represented by the equation y= 40cos³ωt. The motion is

A
Non Periodic

B
Simple harmonic with period 5π/ω

C
Periodic but not Simple harmonic

D
Simple harmonic with period 2π/ω

Solution
Question 5
4 / -1

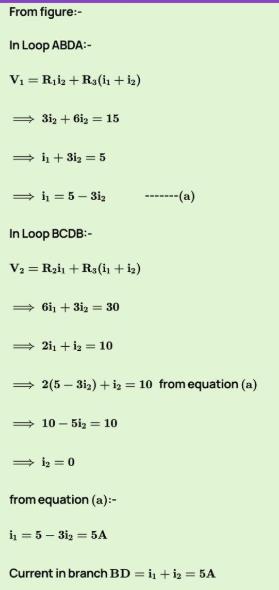

In the circuit shown in figure find the current in branch BD of the circuit :

A
5 A

B
0.5 A

C
11/3 A

D
None of these

Solution
Question 6
4 / -1

A particle undergoes from position O(0, 0, 0) to A (a, 2a, 0) via path in x-y plane under the action of a force which varies with particle’s (x, y, z) coordinate as Work done by the force is: (all symbols have their usual meaning and they are in SI unit.)

A

B

C

D

Solution
Question 7
4 / -1

A wall made up of two layer X and Y. The thickness of the two layers is the same, but materials are different. The thermal conductivity of X is thrice than that of Y. In thermal equilibrium, the temperature difference between the two ends is 56^oC. Then the difference of temperature across wall X is

A
42⁰C

B
35⁰ C

C
21⁰ C

D
57⁰C

Solution

Suppose the thickness of each wall is ‘t’. Then

Hence temperature difference across the walls X is (θ₁-θ) = 21⁰ C
Question 8
4 / -1

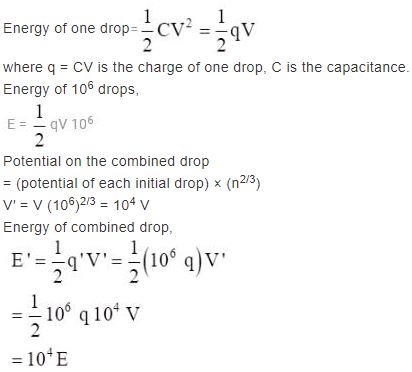

One million small identical drops of water, all charged to the same potential, are combined to form a single large drop. If E is the sum of the electrostatic energy of each small drop, the combined energy of the large drop is

A
10^–4 E

B
E

C
10⁶ E

D
10⁴ E

Solution
Question 9
4 / -1

An unknown particle originally at rest emits 5 alpha particles with speed 11385 km/h. Find the recoil speed of the unknown daughter nucleus.

A
35 m/s

B
50 m/s

C
134 m/s

D
100 m/s

Solution
Question 10
4 / -1

The number of AM broadcast stations that can be accommodated at a 150 kHz band width, if the highest frequency modulating carrier is 5 kHz is

A
15

B
18

C
21

D
24

Solution

Total bandwidth = 150 kHz

f_a(max) = 5 kHz

Any station being modulated by a 5 kHz will produce an upper-side frequency 5 kHz above its carrier and a lower-side frequency 5 kHz below its carrier.

Thus one station needs a bandwidth of 10 kHz.

Number of stations accommodated = Total BW /BW per station

=(150×10³)/(10×10³)=15
