Physics Test 184

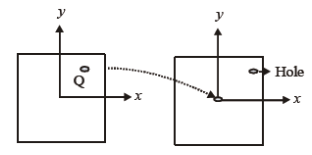

A uniform square plate has a small piece Qof an irregular shape removed and glued to the centre of the plate leaving a hole behind. Then the moment of inertia about the z-axis

A quantity X is given by 0 where  is the permittivity of the free space, L is a length, ∆V is a potential difference and ∆t is a time interval. The dimensional formula for X is the same as that of

A particle starts its motion from rest under the action of a constant force. If the distance covered in first 10 seconds is S₁ and that covered in the first 20 seconds is S₂ then:

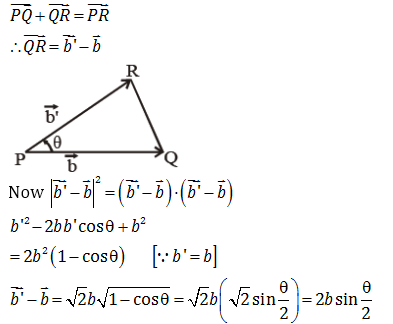

A vector of magnitude b is rotated through angle θ. What is the change in magnitude of the vector?

A ball of mass 10 g moving perpendicular to the plane of the wall strikes it and rebounds in the same line with the same velocity. If the impulse experienced by the wall is the velocity of the ball is

A 2 kg block slides on a horizontal floor with a speed of 4m/s. It strikes a uncompressed spring, and compresses it till the block is motionless. The kinetic friction force is 15N and spring constant is 10000 N/m. The spring compresses by

Which one of the following plots represents the variation of gravitational field on a particle with distance r due to a thin spherical shell of radius R ? (r is measured from the centre of the spherical shell)

The graph given is a stress strain curve for

A tank has a small hole at its bottom of area of cross-section a. Liquid is being poured in the tank at the rate Vm³/s, the maximum level of liquid in the container will be (Area of tank = A)
