Question 1
4 / -1

Assertion Two bulbs of same wattage, one having a carbon filament and the other having a metallic filament are connected in series. Metallic bulbs will glow more brightly than carbon filament bulb.
Reason Carbon is a semiconductor.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and Reason are true but Reason is not the correct explanation of the Assertion

C
If Assertion is true but Reason is false

D
If the Assertion and Reason both are false

E
If Assertion is false but Reason is true
Question 2
4 / -1

Assertion An electric bulb is first connected to a D.C. source and then to an A.C. source having the same brightness in both the cases.
Reason The peak value of voltage for an A.C. source is √2 times the root mean square voltage.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and Reason are true but Reason is not the correct explanation of the Assertion

C
If Assertion is true but Reason is false

D
If the Assertion and Reason both are false

E
If Assertion is false but Reason is true

Solution
Question 3
4 / -1

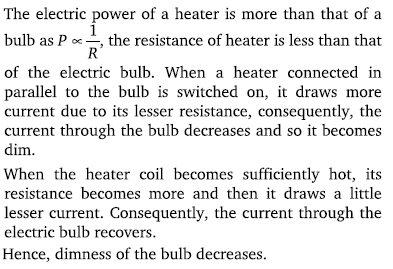

Assertion An electric bulb becomes dim, when an electric heater in parallel circuit is switched on.
Reason Dimness decreases after sometime.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and Reason are true but Reason is not the correct explanation of the Assertion

C
If Assertion is true but Reason is false

D
If the Assertion and Reason both are false

E
If Assertion is false but Reason is true

Solution
Question 4
4 / -1

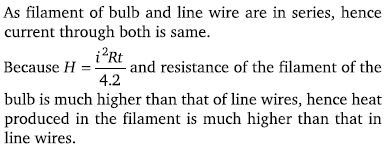

Assertion Though the same current flows through the line wires and the filament of the bulb but heat produced in the filament is much higher than that in line wires.
Reason The filament of bulbs is made of a material of high resistance and high melting point.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and Reason are true but Reason is not the correct explanation of the Assertion

C
If Assertion is true but Reason is false

D
If the Assertion and Reason both are false

E
If Assertion is false but Reason is true

Solution
Question 5
4 / -1

Assertion Neutral temperature of a thermocouple does not depend upon temperature of cold junction.
Reason Its value is constant for the given metals of the couple.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and Reason are true but Reason is not the correct explanation of the Assertion

C
If Assertion is true but Reason is false

D
If the Assertion and Reason both are false

E
If Assertion is false but Reason is true
Question 6
4 / -1

Assertion When temperature of cold junction of a thermocouple is lowered, the value of neutral temperature of this thermocouple is raised.
Reason When the difference of temperature of two junctions is raised, more thermo e.m.f. is produced.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and Reason are true but Reason is not the correct explanation of the Assertion

C
If Assertion is true but Reason is false

D
If the Assertion and Reason both are false

E
If Assertion is false but Reason is true
Question 7
4 / -1

Assertion Leclanche cell is used when constant supply of electric current is not required.
Reason The e.m.f. of a Leclanche cell falls if it is used continuously.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and Reason are true but Reason is not the correct explanation of the Assertion

C
If Assertion is true but Reason is false

D
If the Assertion and Reason both are false

E
If Assertion is false but Reason is true
Question 8
4 / -1

Assertion In the given circuit if lamp B or C fuses then light emitted by lamp A decreases.
ReasonVoltage on A decreases.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and Reason are true but Reason is not the correct explanation of the Assertion

C
If Assertion is true but Reason is false

D
If the Assertion and Reason both are false

E
If Assertion is false but Reason is true
Question 9
4 / -1

Assertion If three identical bulbs are connected in series as shown in figure, then on closing the switch bulb C is short circuited and hence illumination of bulbs A and B decreases.
Reason Voltage on A and B decreases.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and Reason are true but Reason is not the correct explanation of the Assertion

C
If Assertion is true but Reason is false

D
If the Assertion and Reason both are false

E
If Assertion is false but Reason is true
Question 10
4 / -1

Assertion Heat is generated continuously is an electric heater but its temperature becomes constant after some time.
Reason At the stage when heat produced in heater is equal to the heat dissipated to its surrounding the temperature of heater becomes constant.

A
If both Assertion and Reason are true and the Reason is the correct explanation of the Assertion

B
If both Assertion and Reason are true but Reason is not the correct explanation of the Assertion

C
If Assertion is true but Reason is false

D
If the Assertion and Reason both are false

E
If Assertion is false but Reason is true
