  • Question 1
    4 / -1

    Three resistors each of 2 ohm are connected together in a triangular shape. The resistance between any twovertices will be

  • Question 2
    4 / -1

    Equivalent resistance between A and B will be

  • Question 3
    4 / -1

    How many minimum number of 2 Ω resistance can be connected to have an effective resistance of 1.5 Ω?

  • Question 4
    4 / -1

    The effective resistance between the points A and B in the figure is

  • Question 5
    4 / -1

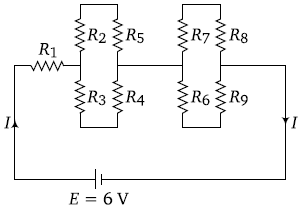

    Nine resistors each of 1 k Ω are connected to a battery of 6 V as shown in the circuit given below. What is thetotal current flowing in the circuit?

  • Question 6
    4 / -1

    A current of 2 A flows in a system of conductors as shown. The potential difference (VA– VB) will be

  • Question 7
    4 / -1

    The potential difference between A and B in the following figure is

  • Question 8
    4 / -1

    In the given circuit diagram the current through the battery and the charge on the capacitor respectively insteady state are

  • Question 9
    4 / -1

    A metallic wire of resistance of 12 Ω is bent to form a square. The resistance between two diagonal pointswould be

  • Question 10
    4 / -1

    The equivalent resistance of resistors connected in series is always
