  • Question 1
    4 / -1
    The thermistors are usually made of
  • Question 2
    4 / -1

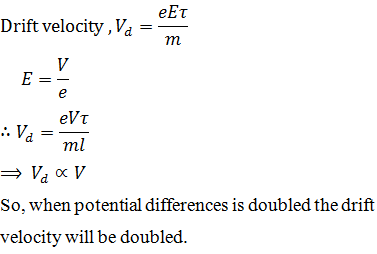

    A potential difference is applied across the ends of a metallic wire. If the potential difference is doubled, the drift velocity will
    Solution

  • Question 3
    4 / -1
    Two resistances R and 2R are connected in parallel in an electric circuit. The thermal energy developed in R and 2R is in the ratio
    Solution

  • Question 4
    4 / -1
    A wire of resistance 18Ω is divided into three equal parts. These parts are connected in side of triangle, the equivalent resistance of any two corners of triangle will be
    Solution

  • Question 5
    4 / -1
    A metallic wire of resistance 12 Ω is bent to form a square. The resistance between two diagonal points would be
    Solution

  • Question 6
    4 / -1

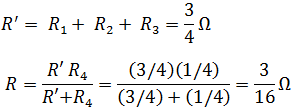

    Resistance of rod is 1Ω It is bent in form of square. What is resistance across adjoint comers ?
    Solution

  • Question 7
    4 / -1
    How many minimum number of 2Ω resistance can be connected to have an effective resistance of 1.5Ω?
    Solution

  • Question 8
    4 / -1

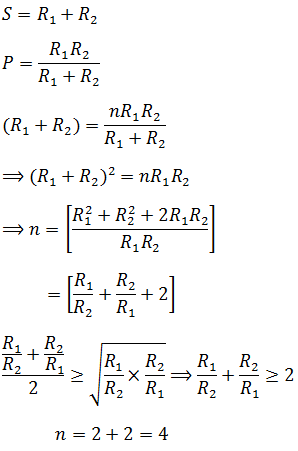

    The resistance of the series combination of two resistances is S. When they are joined in parallel, the total resistance is P. If S = nP, then the minimum possible value of n is
    Solution

  • Question 9
    4 / -1
    Kirchhoff s second law for the analysis of circuit is based on
  • Question 10
    4 / -1
    The resistance of ideal voltmeter is
