Mechanical Properties of Solids Test

Result

Mechanical Properties of Solids Test - 31

Score
-
out of -
Rank
-
out of -

TIME Taken - -

SHARING IS CARING

If our Website helped you a little, then kindly spread our voice using Social Networks. Spread our word to your readers, friends, teachers, students & all those close ones who deserve to know what you know now.

Weekly Quiz Competition

Question 1
4 / -1

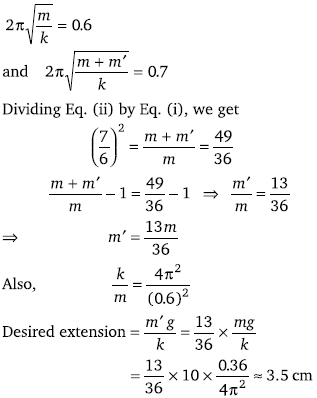

A pan with set of weights is attached with a light spring. When disturbed, the mass-spring system oscillates with a time period of 0.6 s. When some additional weights are added, then time period is 0.7 s. The extension caused by the additional weight is approximately given by

A
1.38 cm

B
3.5 cm

C
1.75 cm

D
2.45 cm

Solution
Question 2
4 / -1

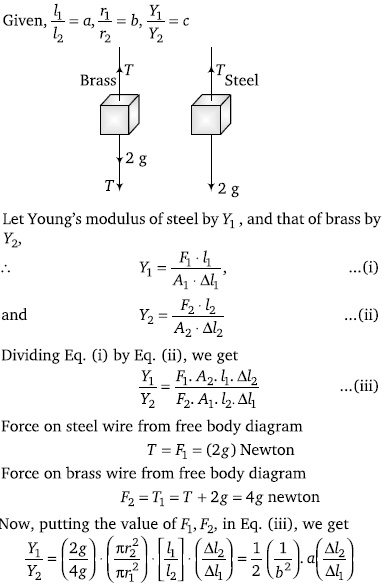

If the ratio of lengths, radii and Young\'s modulus of steel and brass wires shown in the figure are a, b and c, respectively. The ratio between the increase in lengths of brass and steel wires would be

A

B

C

D

Solution
Question 3
4 / -1

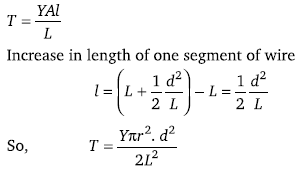

A wire of length 2L and radius r is stretched between A and B without the application of any tension. If Y is the Young\'s modulus of the wire and it is stretched like ACB, then the tension in the wire will be

A

B

C

D

Solution
Question 4
4 / -1

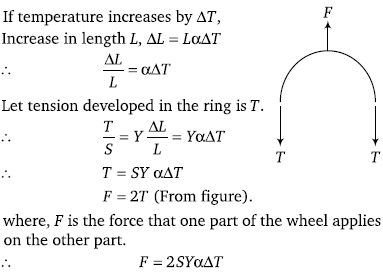

A wooden wheel of radius R is made of two semicircular parts (see figure). The two parts are held together by a ring made of a metal strip of cross sectional area S and length L. L is slightly less then 2TER. To fit the ring on the wheel, it is heated so that its temperature rises by AT and it just steps over the wheel. As it cools down to surrounding temperature, it presses the semicircular parts together. If the coefficient of linear expansion of the metal is a, and its Young\'s modulus is Y, the force that one part of the wheel applies on the other part is

A

B

C

D

Solution
Question 5
4 / -1

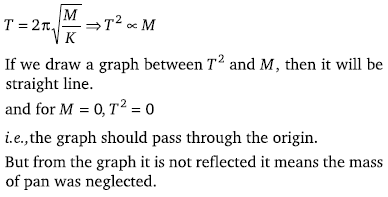

The graph shown was obtained from experimental measurements of the period of oscillations T for different masses M placed in the scale pan on the lower end of the spring balance. The most likely reason for the line not passing through the origin is that the

A
Spring did not obey Hooke's Law

B
Amplitude of the oscillations was too large

C
Clock used needed regulating

D
Mass of the pan was neglected

Solution
Question 6
4 / -1

A graph is shown between stress and strain for a metal. The part in which Hooke\'s law holds good is

A
OA

B
AB

C
BC

D
CD

Solution
Question 7
4 / -1

In the above graph, point B indicates

A
Breaking point

B
Limiting point

C
Yield point

D
None of these
Question 8
4 / -1

In the above graph, point D indicates

A
Limiting point

B
Yield point

C
Breaking point

D
None of these
Question 9
4 / -1

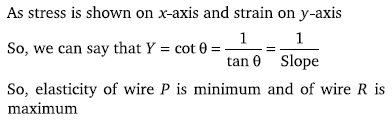

The strain-stress curves of three wires of different materials are shown in the figure. P, Q and R are the elastic limits of the wires. The figure shows that

A
Elasticity of wire P is maximum

B
Elasticity of wire Q is maximum

C
Tensile strength of R is maximum

D
None of the above is true

Solution
Question 10
4 / -1

The diagram shows a force-extension graph for a rubber band. Consider the following statements
I. It will be easier to compress this rubber than expand it
II. Rubber does not return to its original length after it is stretched
III. The rubber band get heated if it is stretched and released
Which of these can be deduced from the graph?

A
Only III

B
II and III

C
I and III

D
Only I
