Oscillations Test

Result

Oscillations Test - 39

Score
-
out of -
Rank
-
out of -

TIME Taken - -

SHARING IS CARING

If our Website helped you a little, then kindly spread our voice using Social Networks. Spread our word to your readers, friends, teachers, students & all those close ones who deserve to know what you know now.

Weekly Quiz Competition

Question 1
4 / -1

A block (B) is attached to two unstretched springs S₁, and S₂ with spring constants k and 4 k, respectively (see figure I). The other ends are attached to identical supports M₁ and M₂ not attached to the walls. The springs and supports have negligible mass. There is no friction anywhere. The block B is displaced towards wall 1 by a small distance x (figure II) and released. The block returns and moves a maximum distance y towards wall 2. Displacement x and y are measured with respect to the equilibrium position of the block B. The ratio y/x is

A
4

B
2

C

D

Solution
Question 2
4 / -1

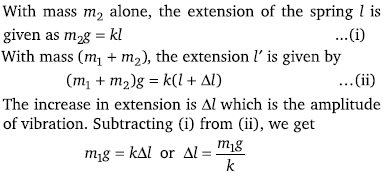

Two masses m₁ and m₂ are suspended together by a massless spring of constant K. When the masses are in equilibrium, m₁ is removed without disturbing the system. The amplitude of oscillations is

A

B

C

D

Solution
Question 3
4 / -1

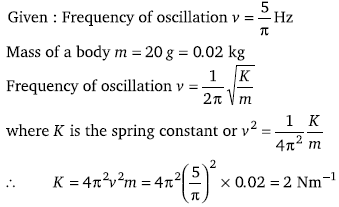

A body of mass 20 g connected to spring of constant K executes simple harmonic motion with a frequency of (5/π)Hz. The value of spring constant is

A
4 Nrn^–1

B
3 Nm^–1

C
2 Nm^–1

D
5 Nm^–1

Solution
Question 4
4 / -1

A mass of 10 kg is suspended from a spring balance. It is pulled aside by a horizontal string so that it makes an angle of 60° with the vertical. The new reading of the balance is

A

B

C

D

Solution
Question 5
4 / -1

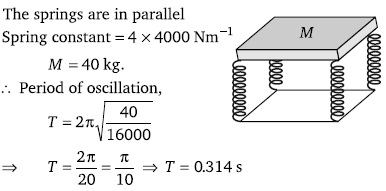

An electric motor of mass 40 kg is mounted on four vertical spring each having constant of 4000 Nm^–1. The period with which the motor vibrates vertically is

A
0.314 s

B
3.14 s

C
0.078 s

D
0.56 s

Solution
Question 6
4 / -1

A mass of 4 kg suspended from a spring of force constant 800 Nm^–1 executes simple harmonic oscillations. If the total energy of the oscillator is 4 J, the maximum acceleration (in ms^–2) of the mass is

A
5

B
15

C
45

D
20

Solution
Question 7
4 / -1

A
Of the same frequency and with shifted mean position

B
Of the same frequency and with the same mean position

C
Of changed frequency and with shifted mean position

D
Of changed frequency and with the same mean position

Solution
Question 8
4 / -1

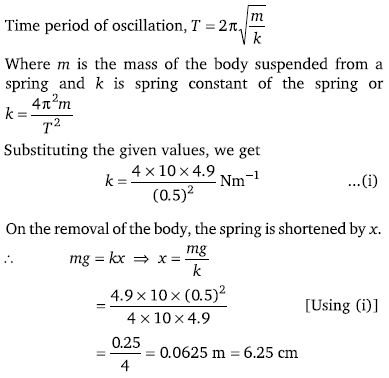

A body of mass 4.9 kg hangs from a spring and oscillates with a period 0.5 s. On the removal of the body, the spring is shortened by (Take g = 10 ms^–2 , π² = 10)

A
6.3 m

B
0.63 m

C
6.25 m

D
63 cm

Solution
Question 9
4 / -1

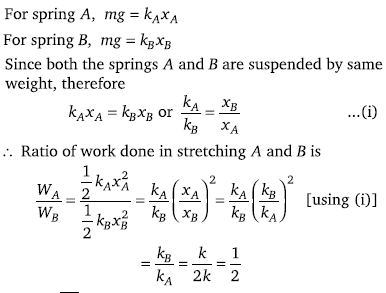

If two springs A and B with spring constants 2k and k, are stretched separately by same suspended weight, then the ratio between the work done in stretching A and B is

A
1 : 2

B
1 : 4

C
1 : 3

D
4 : 1

Solution
Question 10
4 / -1

Time period of a mass m suspended by a spring is T. If the spring is cut to one-half and made to oscillate by suspending double mass, the time period of the mass will be

A

B

C

D

Solution
