Oscillations Test

Result

Oscillations Test - 52

Score
-
out of -
Rank
-
out of -

TIME Taken - -

SHARING IS CARING

If our Website helped you a little, then kindly spread our voice using Social Networks. Spread our word to your readers, friends, teachers, students & all those close ones who deserve to know what you know now.

Weekly Quiz Competition

Question 1
4 / -1

Time period of a simple pendulum of length l is T₁ and time period of a uniform rod of the same length l pivoted about one end and oscillating in a vertical plane is T₂. Amplitude of oscillations in both the cases in small. Then T₁/T₂ is

A

B
1

C

D
Question 2
4 / -1

What will be the force constant of the spring system shown in fig.

A

B

C

D
Question 3
4 / -1

Two simple harmonic motions with the same frequency act on a particle at right angles i.e., along x and y. axis. if the two amplitudes are equal and the phase difference is π/2, the resultant motion will be

A
a straight line inclined at 45^o to the x – axis

B
an ellipse with the major axis along x – axis

C
an ellipse with the major axis along y – axis

D
a circle
Question 4
4 / -1

A particle, with restoring force proportional to displacement and resisting force proportional to velocity is subjected to a force F sin ωt. If the amplitude of the particle is maximum for ω = ω₁ and the energy of the particle is maximum for ω = ω₂ then

A
ω₁ = ω₀ and ω₂ ≠ ω₀

B
ω₁ = ω₀ and ω₂ = ω₀

C
ω₁ ≠ ω₀ and ω₂ = ω₀

D
ω₁ ≠ ω₀ and ω₂ ≠ ω₀
Question 5
4 / -1

A uniform circular disc of mass 12 kg is held by two identical springs as shown in the figure. When the disc pressed down slightly and released, it executes SHM with a time period of 2s. The force constant of each spring is

A
236 N m^–1

B
118.3 N m^–1

C
59.15 N m^–1

D
None of these

Solution
Question 6
4 / -1

A particle executes simple harmonic motion with an angular velocity and maximum acceleration of 3.5 rad/sec and 7.5 m/s² respectively. Amplitude of the oscillation is

A
0.28 m

B
0.36 m

C
0.53 m

D
0.61 m

Solution
Question 7
4 / -1

A coin is placed on a horizontal platform, which undergoes vertical S.H.M. of angular frequency ω. The amplitude of oscillations is gradually increased. The coin will have contact with the platform for the first time. (i) at the higher position of the platform (ii) at the mean position of the platform (iii) for an amplitude of g/ω² (iv) for an amplitude of √2/ω

A
only (i) is correct

B
(i) and(iv) are correct

C
(i), (ii) and(iii) are correct

D
only (iii) is correct

Solution
Question 8
4 / -1

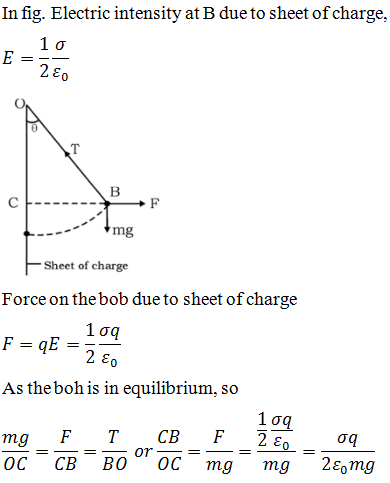

a simple pendulum of length I has a bob of mass m, with a charge q on it.A vertical sheet of charge with surface charge density σ passes through the point of suspension. At equilibrium, the spring makes an angle θ with the vertical. Its time period of oscillations T in this position. Then

A

B

C

D

Solution
Question 9
4 / -1

A particle executes simple harmonic motion between x = –A and x = +A. the time taken for it to go from 0 to A/2 is T₁ and to go from A/2 to A is T₂. Then

A
T₁ < T₂

B
T₁ > T₂

C
T₁ = T₂

D
T₁ = 2T₂
Question 10
4 / -1

A mass is suspended separately by two different springs in successive order then time periods is t₁ and t₂ respectively. If t is connected by both springs as shown in Fig., then time period is t₀, the correct relation is

A

B

C

D

Solution
