Laws of Motion ...

TIME LEFT -
  • Question 1
    4 / -1

    A block of mass \'m\' is connected to another block of mass \'M\' a spring (massless) of spring constant \'k\'. The blocks are kept on a smooth horizontal plane. Initially the blocks are at rest and the spring is unstretched. Then, a constant force \'F\' starts acting on the block of mass \'M\' to pull it. Find the force on the block of mass ‘m’.

  • Question 2
    4 / -1

    Two blocks of masses m and 2m are connected by a light string passing over a frictionless pulley. As shownin the figure, the mass m is placed on a smooth inclined plane of inclination 30° and 2m hangs vertically. If the system is released, the blocks move with anacceleration equal to

  • Question 3
    4 / -1

    A mass m hangs with the help of a string wrapped around a pulley on a frictionless bearing. The pulley has mass m and radius R. Assuming pulley to be a perfect uniform circular disc, the acceleration of the mass m, if the string does not slip on the pulley, is

  • Question 4
    4 / -1

    Two masses m1 =1 kg and m2 = 2 kg are connected by a light inextensible string and suspended by means of a weightless pulley as shown in the figure. Assuming that both the masses start from rest, the distance travelled by the centre of mass in two seconds is(Take g = 10 ms–2)

  • Question 5
    4 / -1

    The acceleration of system of two bodies over thewedge as shown in figure is

  • Question 6
    4 / -1

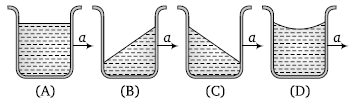

    A vessel containing water is given a constant acceleration a towards the flight, along a straight horizontal path. Which of the following diagram represents the surface of the liquid?

  • Question 7
    4 / -1

    A closed compartment containing gas is moving with some acceleration in horizontal direction. Neglect effect of gravity. Then, the pressure in the compartment is

  • Question 8
    4 / -1

    The mass of a body measured by a physical balance in a lift at rest is found to be m. If the lift is going up with an acceleration a, its mass will be measured as

  • Question 9
    4 / -1

    Three weights W, 2W and 3W are connected to identical springs suspended from a rigid horizontal rod. The assembly of the rod and the weights fall freely. The positions of the weights from the rod are such that

  • Question 10
    4 / -1

    When forces F1, F2, F3 are acting on a particle of mass m such that F2 and F3 are mutually perpendicular, then the particle remains stationary. If the force F1 is now removed then the acceleration of the particle is
