Question 1
4 / -1

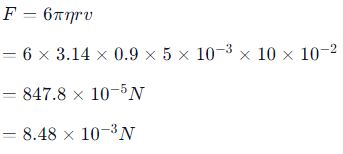

The terminal velocity of a copper ball of radius 5 mm falling through a tank of oil at room temperature is 10 cm s^-1. If the viscosity of oil at room temperature is 0.9 kg m^-1 s^-1, the viscous drag force is:

A
4.23 × 10^{− 6} N

B
8.48 × 10⁻³ N

C
8.48 × 10⁻⁵ N

D
4.23 × 10⁻³ N

Solution
Question 2
4 / -1

If a soap bubble expands, the pressure inside the bubble

A
Decreases

B
Increases

C
Remains the same

D
Is equal to the atmospheric pressure

Solution
Question 3
4 / -1

A spherical ball is dropped in a long column of a highly viscous liquid. The curve in the graph shown, which represents the speed of the ball (v) as a function of time (t) is

A
A

B
B

C
C

D
D

Solution

Initial speed of ball is zero and it finally attains terminal speed
Question 4
4 / -1

Read the assertion and reason carefully to mark the correct option out of the options given below:

Assertion: Young's modulus for a perfectly plastic body is zero.

Reason: For a perfectly plastic body, restoring force is zero.

A
If both assertion and reason are true and the reason is the correct explanation of the assertion.

B
If both assertion and reason are true but reason is not the correct explanation of the assertion.

C
If assertion is true but reason is false.

D
If the assertion and reason both are false.

Solution

Young's Modulus= (restoring force per unit area)/(elongation of wire/length of wire) now for a plastic body the restoring force is zero and it ultimately makes the Young's modulus zero. Hence both assertion and reason are true
Question 5
4 / -1

Read the assertion and reason carefully to mark the correct option out of the options given below:

Assertion : Stress is the internal force per unit area of a body.

Reason : Rubber is less elastic than steel.

A
If both assertion and reason are true and the reason is the correct explanation of the assertion.

B
If both assertion and reason are true but reason is not the correct explanation of the assertion.

C
If assertion is true but reason is false.

D
If the assertion and reason both are false.

Solution

Stress is defined as internal force (restoring force) per unit area of a body. Also, rubber is less elastic than steel, because restoring force is less for rubber than steel.
Question 6
4 / -1

A steel rod 2.0 m long has a cross-sectional area of 0.30 cm² . It is hung by one end from a support, and a 550-kg milling machine is hung from its other end. Determine the resulting strain. Young's Modulus of Steel (Y) = 20×10¹⁰ Pa

A
8.0 × 10⁻⁴

B
10.0 × 10⁻⁴

C
7.0 × 10⁻⁴

D
9.0 × 10⁻⁴

Solution

Stress = F⟂/A = (Mass x Acceleration⟂)/Cross-sectional Area

= (550 kg x 9.8 m/s²)/ (0.30×10−4 m²)

= 1.8×10⁸ Pa

Young's ModulusSteel (Y) = 20×10¹⁰ Pa = Stress/Strain

=> Strain = Stress/Y = 1.8×108 Pa / 20×10¹⁰ Pa

= 9.0×10⁻⁴
Question 7
4 / -1

A piece of copper having a rectangular cross-section of 15.2 mm × 19.1 mm is pulled in tension with 44,500 N force, producing only elastic deformation. Calculate the resulting strain? Take Young's modulus of copper as 42 × 10⁹Pa

A
3.65 × 10^-8

B
3.65 × 10^-3

C
3.65 × 10^-9

D
3.65 × 10^-2

Solution

Given Data,

Length of the piece of copper = l = 19.1 mm = 19.1 × 10^-3m

Breadth of the piece of copper = b = 15.2 mm = 15.2× 10^-3m

Tension force applied on the piece of cooper, F = 44500N

Area of rectangular cross section of copper piece,

Area = l× b

⇒ Area = (19.1 × 10-3m) × (15.2× 10-3m)

⇒ Area = 2.9 × 10^-4 m²

Modulus of elasticity of copper from standard list, η = 42× 10⁹ N/m2

By definition, Modulus of elasticity, η = stress/strain
Question 8
4 / -1

A 200-kg load is hung on a wire with a length of 4.00 m, a cross-sectional area of 0.200 × 10⁻⁴ m², and a Young’s modulus of 8.00 × 10¹⁰N/ m². What is its increase in length?

A
4.80 mm

B
4.70 mm

C
4.90 mm

D
4.60 mm

Solution

Mass, m = 200 kg

Length, L = 4 m

Cross-sectional area, A = 0.2 x 10^-4m²

Young's modulus, Y = 8 x 10¹⁰ N/m²

Increase in length = FL/AY

= mgL/AY

= 200*9.8*4/(0.2 x 10^-48 x 10¹⁰)

= 0.0049 m

= 0.49 cm

= 4.9 mm
Question 9
4 / -1

If the elastic limit of copper is 1.5 × 10⁸ N/ m², determine the minimum diameter a copper wire can have under a load of 10.0 kg if its elastic limit is not to be exceeded.

A
1.012 mm

B
0.912 mm

C
0.712 mm

D
0.812 mm

Solution
Question 10
4 / -1

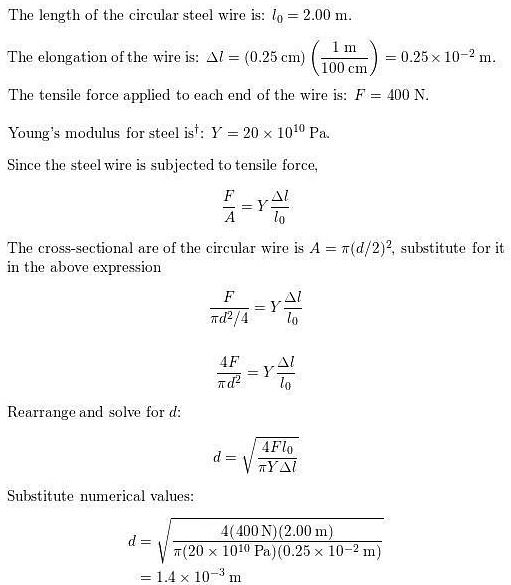

A circular steel wire 2.00 m long must stretch no more than 0.25 cm when a tensile force of 400 N is applied to each end of the wire. What minimum diameter is required for the wire?

A
1.4 mm

B
10 mm

C
1.5 mm

D
12.4 mm

Solution
