Physics Test 16...

The potential energy of a particle executing SHM changes from maximum to minimum in 5 sec. Then the time period of SHM is :

A body is executing simple harmonic motion. At a displacement x from mean position, its potential energy is E₁ and at a displacement y from mean position, its potential energy is E₂. The potential energy E at a displacement (x + y) from mean position is (the potential energy is zero at mean position) :

In the figure shown a block of mass m is attached at ends of two springs. The other ends of the spring are fixed. The mass m is released in the vertical plane when the spring are relaxed. The velocity of the block is maximum when:

Figure shows the kinetic energy K of a simple pendulum versus its angle θ from the vertical. The pendulum bob has mass 0.2 kg. The length of the pendulum is equal to (g = 10 m/s²) :

The equation of a wave is given by (all quantity expressed in S.I. units) Y = 5 sin10π (t – 0.01x) along the x-axis. The magnitude of phase difference between the points separated by a distance of 10 m along x- axis is     :

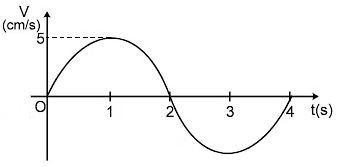

A certain transverse sinusoidal wave of wavelength 20 cm is moving in the positive x direction. The transverse velocity of the particle at x = 0 as a function of time is shown. The amplitude of the motion is:

Two vibrating strings of same material stretched under same tension and vibrating with same frequency in the same overtone have radii 2r and r. Then the ratio of their lengths is :

A chord attached about an end to a vibrating fork divides it into 6 loops, when its tension is 36 N. The tension at which it will vibrate in 4 loops is:

Sinusoidal waves 5.00 cm in amplitude are to be transmitted along a string having a linear mass density equal to 4.00 × 10^–2 kg/m. If the source can deliver a maximum power of 90 W and the string is under a tension of 100 N, then the highest frequency at which the source can operate is  (take π² = 10) :

What is the percentage change in the tension necessary in a sonometer of fixed length to produce a note one octave lower (half of original frequency) than before :
