The threshold frequency for a metallic surface corresponds to an energy of 6.2 eV and the stopping potential for a radiation incident on this surface is 5 V. The incident radiation lies in

A photoelectric cell is illuminated by a point source of light 1 m away. When the source is shifted to 2 m, then

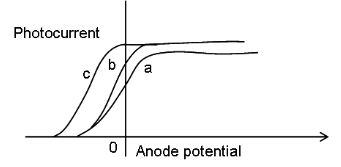

The figure shows variation of photocurrent with anode potential for a photosensitive surface for three different radiations. Let I_a, I_b and I_c be the intensities and _a, _b and _c be the frequencies for the curves a, b and c, respectively. Then,

Sodium surface is illuminated by ultraviolet and visible radiations, successively and the stopping potential is determined. This stopping potential is

The bob of a simple pendulum is a spherical hollow ball filled with water. A plugged hole near the bottom of the oscillating bob gets suddenly unplugged. During observation, till water is coming out, the time period of oscillation would

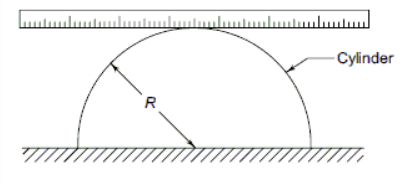

A uniform metre scale of length 1 m is balanced on a fixed semi-circular cylinder of radius 30 cm as shown in the figure. One end of the scale is slightly depressed and released. The time period (in seconds) of the resulting simple harmonic motion is

(Take g = 10 ms^-2)

Two SHMs are respectively represented by y₁ = a sin (ωt - kx), and y₂ = b cos (ωt - kx). The phase difference between the two is:

The displacement y of a particle executing periodical motion is given by y = 4 cos² (t/2) sin (1000t). This expression may be considered to be a result of the superposition of how many independent harmonic motions?

A particle in SHM is described by the displacement equation x(t) = A cos (ωt + θ). If the initial (t = 0) position of the particle is 1 cm and its initial velocity is π cm/s, then what is its amplitude? (The angular frequency of the particle is πs^-1.)

Three identical spheres, each of mass 1 kg, are kept as shown in the figure below, touching each other with their centres on a straight line. If their centres are marked respectively as P, Q and R, then the distance of the centre of mass of the system from P is

For the given uniform square lamina ABCD whose centre is O,

Three particles, each of mass 'm' g, are situated at the vertices of an equilateral triangle ABC of side l cm (as shown in the figure). The moment of inertia of the system about a line AX perpendicular to AB in the plane of ABC in gram-cm² unit will be

Three weights w, 2w and 3w are connected to an identical spring suspended from a rigid horizontal rod. The assembly of the rod and the weights fall freely. The position of the weight from the rod are such that

A horizontal platform is rotating with uniform angular velocity around the vertical axis passing through its centre. At some instant of time, a viscous fluid of mass 'm' is dropped at the centre and is allowed to spread out and finally fall. The angular velocity during this period

What is the dimension of L/RCV, where L, R, C and V have their usual meanings?
